SunSource | 156-0043-005 DANFOSS Industrial Hydraulics

Images are representative only. Please verify with our technical experts as actual product may differ.

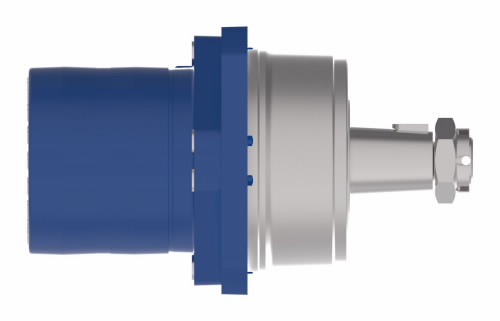

156-0043-005 DANFOSS | VIS-45 MOTOR

Manufacturer: DANFOSS

Manufacturer Model #: 156-0043-005

EATON CHAR-LYNN VIS 45 SERIES VIS GEROLER
Simplified design: only 3 moving parts|Compact yet powerful package|Two-piece, pre-loaded pressure balance plate

: Application: Skid Steer Loaders and Attachments, Snow Removal Equipment
Brake type: Hydraulic
Case flow options: Shuttle Valve with Side Facing .5625-18 UNF-2B SAE O-ring port case drain, case drain required
Design code11: 5
Displacement: 1557 cubic centimetre per revolution
Eccn: EAR99
Flow rate12: 170 litre per minute
Front seal kit if available: 61328-000
Geroler options: None
Icc2: Low-Speed Gerotor/Geroler
Identification: None
Intermittent pressure: 205 bar
Low pressure relief: Set at 15.2 [220 lbf/in²]
Maximum speed: 198 revolutions per minute
Model Code: ACB95D05AD10000E
Mounting Type: Wheel, 4 Bolt; 200.0 [7.87] Pilot Dia. with 9.0 [.35] Pilot Length and 20.57 [.810] Holes On 250.0 [9.84] Bolt Circle.
Output shaft type: Straight
Paint: Primer Gray
Port type: 1.3125-12 UN-2B SAE O-Ring Ports
Pressure flow option: None
Product height: 9.32
Product height uom: inch
Product length: 14.77
Product length uom: inch
Product material: Cast Iron
Product trade name: VIS 45 Series
Product weight: 145.10
Product weight uom: pound
Product width: 9.32
Product width uom: inch
Recommended system working temperature: -34°C to 82°C
Seal options: None
Shaft options: None
Special assembly instructions: None
Special features hardware: None
Speed sensor: No
Sub brand: Char-Lynn
Torque: 3555 newton metre
Two speed ratio: None
Valve options: None
Viscosity recommendation: 70 Saybold universal second
: Documentlink technical bulletin 1
Documentlink catalog 1
