SunSource | 613-5-1-1-50-LR NOSHOK Industrial Hydraulics

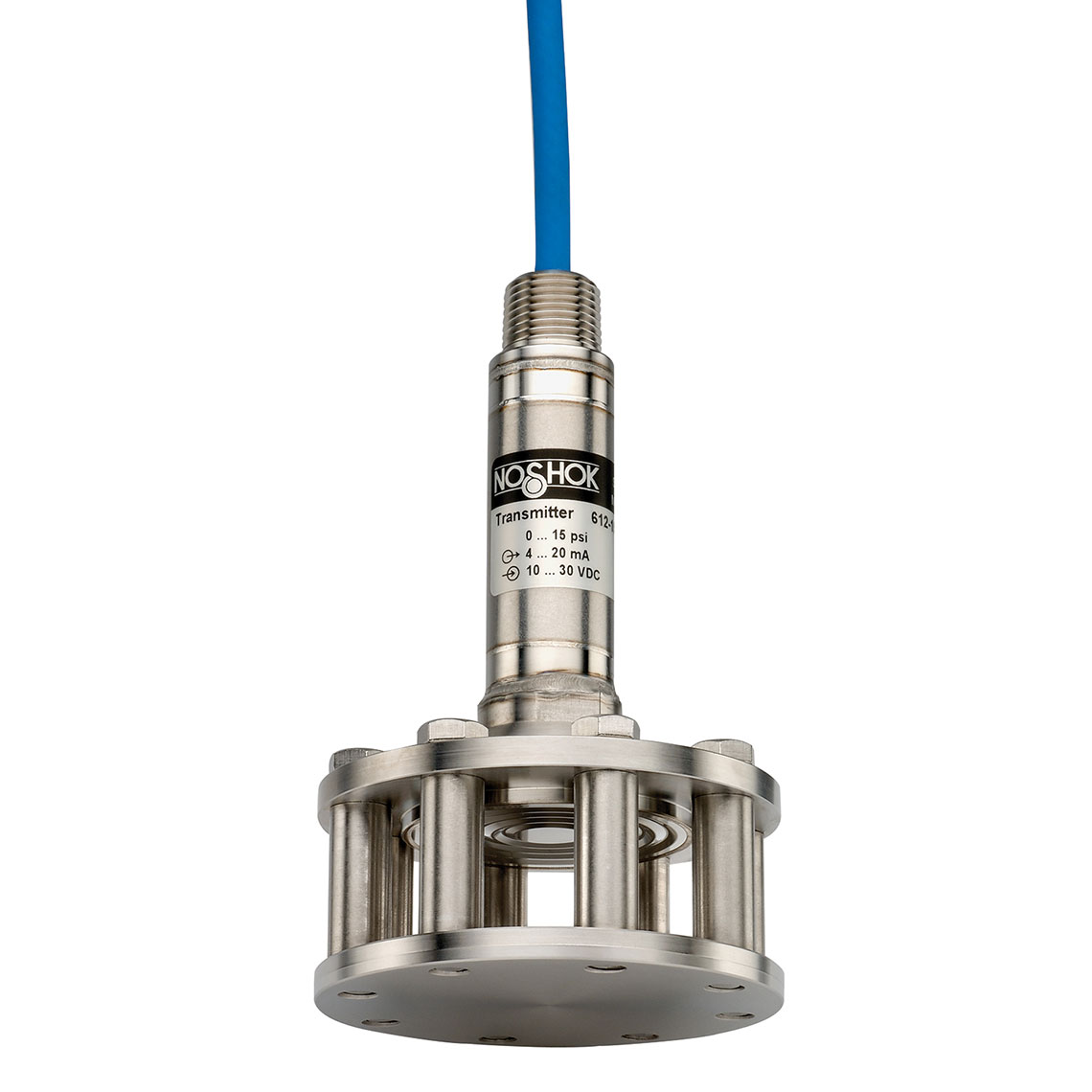

613 Series 50 ft Cable Length Cage-Protected Submersible Level Transmitter

Images are representative only. Please verify with our technical experts as actual product may differ.

613-5-1-1-50-LR NOSHOK | 613 Series 50 ft Cable Length Cage-Protected Submersible Level Transmitter

Manufacturer: NOSHOK

Manufacturer Model #: 613-5-1-1-50-LR

Ranges from 0 psi to 5 psi through 0 psi to 300 psi
Current & voltage outputs available
316 Stainless Steel and Polyurethane wetted parts
CE compliant to suppress RFI, EMI and ESD

: Accuracy: 0.25|0.125
Additional Information: Ideal for applications including lift stations, sewage, slurry tanks, storm canals, water & wastewater and wet wells
Application: Lift stationsSewageSlurry tanksStorm canalsWater & wastewaterWet wells
Burst Pressure: 4 Times Range
Cable Length: 50
Category: 613 Series Cage-Protected Submersible Level Transmitters
Compensated Temperature Range: 32 to 122
Connection Material: 316 Stainless Steel
Degree of Protection: Ingress Protection (IP68)
Electrical Protection: Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J
Housing material: 316 Stainless Steel
Inch/Metric: Inch
Industry Standards/Certifications: European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Request for Information (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Load Limitations: <= (VPower-10)/0.020 Amp for 4 mA to 20 mA>= 10,000 for 0 Vdc to 10 Vdc, 3-wire>= 5,000 for 0 Vdc to 5 Vdc, 3-wire
Measuring Element: Cage seal: All 316 stainless steelCable: polyurethane, optional FEP
Media Temperature Range: 14 to 122
Note for Accuracy: Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Note for Compensated Temperature Range: Effect 0.01%/F for zero and span
Operating Temperature [Max]: 80
Operating Temperature [Min]: -30
Options: Lifting Ring
Options and Accessories: Cable Clamp (CBC)Cable Junction Box NEMA 4X (JB)Desiccant Cartridge (DC)Filter Element (FE)Lightning Protection (LP) (Only available with PUR cable)Lifting Ring (LR)PT100 RTD1 (PT1) (Only available with PUR cable)
Output Signal: 4 mA to 20 mA, 2-wire
Power Requirement: 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)5 Vdc to 30 Vdc (0.5 Vdc to 2.5 Vdc, 3-wire)14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire)
Pressure [Max]: 0 to 5
Proof Pressure: 2 Times Range
Related Items: 612-CABLE-CLAMP, Submersible Cable Clamps|612-FILTER-ELEMENT, Submersible Filter Elements
Response Time: <=1
SchemaID: 106379
Series: 613
Service Life: > 100,000,000 load cycles
Shock According to International Electrotechnical Commission (IEC) 60068: 100
Stability: <= 0.2% full scale for 1 year, non-accumulating
Style: Level Transmitter
Syndication: 1
Temperature Measurement: Optional PT100, 4-wire per International Electrotechnical Commission (IEC) 60751
Type: Submersible Level Transmitter
Unit: 1
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6: 15

SunSource Distribution Division: SunSource

Price:

$1,874.60
