SunSource | 627-10-1-1-N-42 NOSHOK Industrial Hydraulics

627 Series 42 ft Cable Length Intrinsically Safe Submersible Liquid Level Transmitter

Images are representative only. Please verify with our technical experts as actual product may differ.

627-10-1-1-N-42 NOSHOK | 627 Series 42 ft Cable Length Intrinsically Safe Submersible Liquid Level Transmitter

Manufacturer: NOSHOK

Manufacturer Model #: 627-10-1-1-N-42

Current output
316 Stainless Steel and 17-4PH Steel wetted parts
Canadian Standards Association approved
CE compliant to suppress RFI, EMI and ESD

: Accuracy: 0.25|0.125
Ambient Temperature Range: 15 to 122
Application: IrrigationTank monitoringWater & wastewaterWell head measurement
Approximate Weight: 7
Burst Pressure: 3 Times Range
Cable Length: 42
Cable Material: Polyurethane, Fluorinated Ethylene Propylene
Category: 627 Series Intrinsically Safe Submersible Liquid Level Transmitters
Compensated Temperature Range: 32 to 122

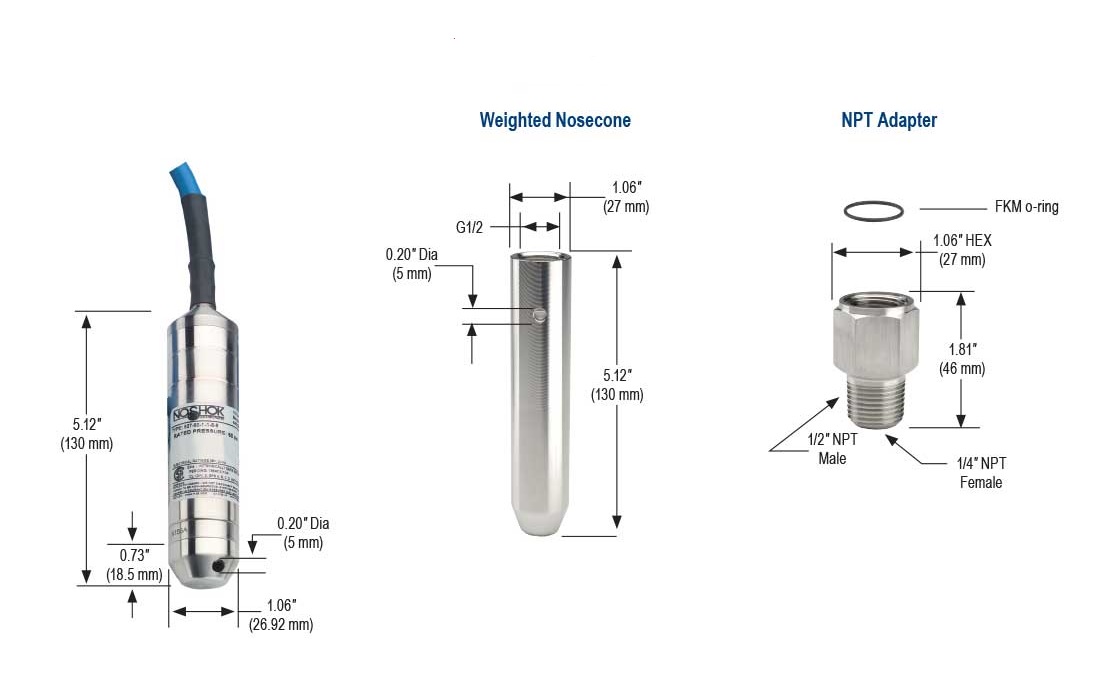

Connection Material: Stainless Steel Nosecone
Degree of Protection: Ingress Protection (IP68)
Diaphragm and Cap Material: 316 Stainless Steel
Electrical Protection: Reverse polarity, over-voltage and short circuit protected
Housing material: 316 Stainless Steel
Inch/Metric: Inch
Industry Standards/Certifications: European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Request for Information (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Load Limitations: <= (VPower-10)/0.020 Amp-(0.043 x length of cable in feet)
Measuring Element: 17-4PH stainless steel for 0 psig to 350 psig
Media Temperature Range: 15 to 175
Note: Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
Note for Accuracy: For ranges >= 150 inH<sub>2</sub>O (Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors).
Note for Compensated Temperature Range: Zero effect is 0.011% full scale/F within compensated rangeSpan effect is 0.011% full scale/F within compensated range
Operating Temperature [Max]: 60
Operating Temperature [Min]: -34

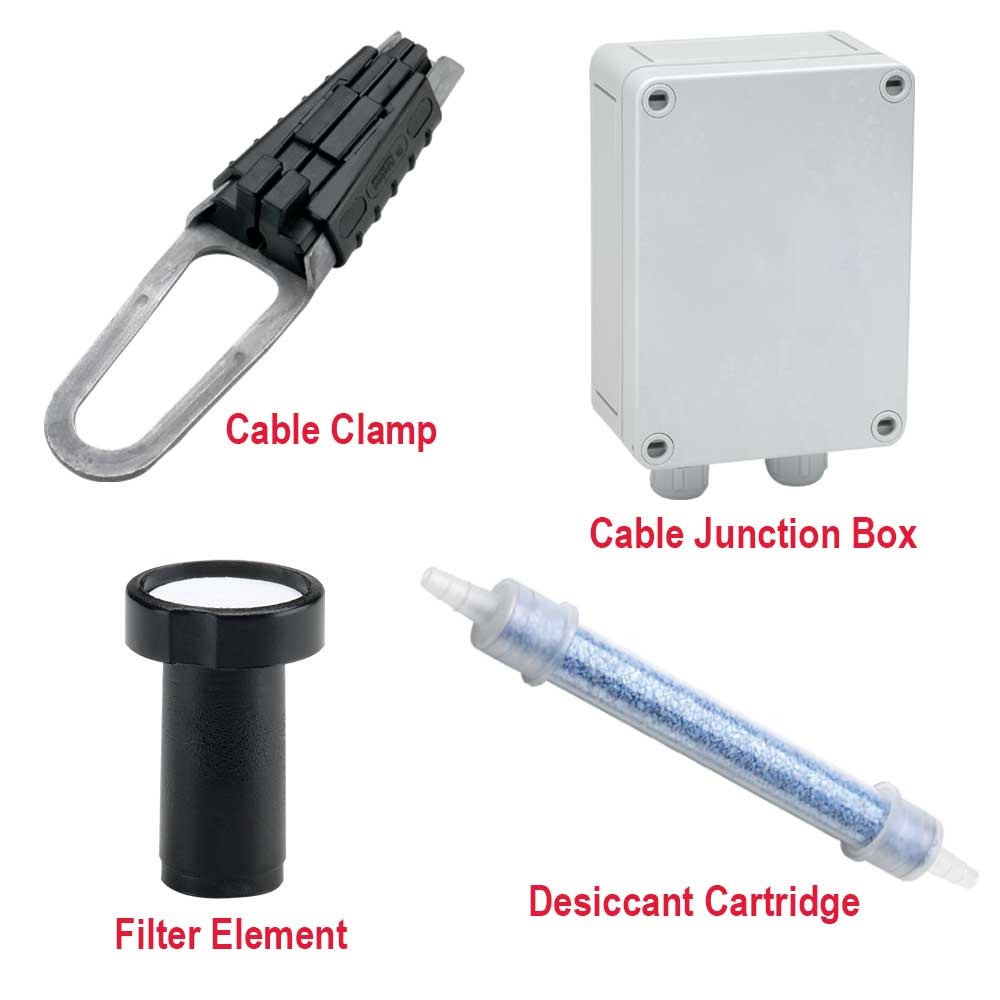

Options and Accessories: Cable Clamp (CBC) Cable Junction Box (NEMA 4X) (JB)Desiccant Cartridge (DC)Filter Element (FE)

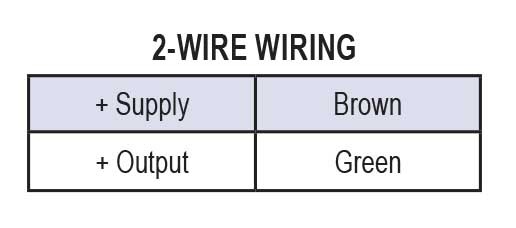

Output Signal: 4 mA to 20 mA, 2-wire; 1 Vdc to 5 Vdc low power, 3-wire; 0.5 Vdc to 4.5 Vdc low power, 3-wire
Power Requirement: 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire)
Pressure Range: 0 to 10
Proof Pressure: 2 Times Range
Response Time: <=1
SchemaID: 106379
Series: 627
Service Life: > 100,000,000 load cycles
Stability: <= 0.2% full scale for 1 year, non-accumulating
Style: Level Transmitter
Syndication: 1
Type: Liquid Level Transmitter
Unit: 1

SunSource Distribution Division: SunSource

Price:

$1,412.70
