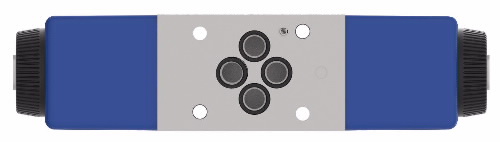

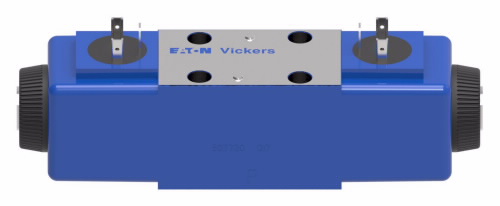

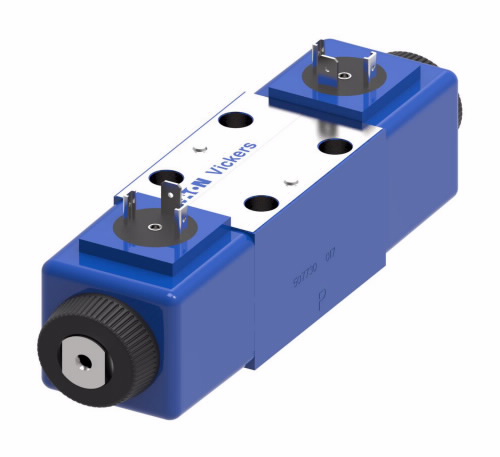

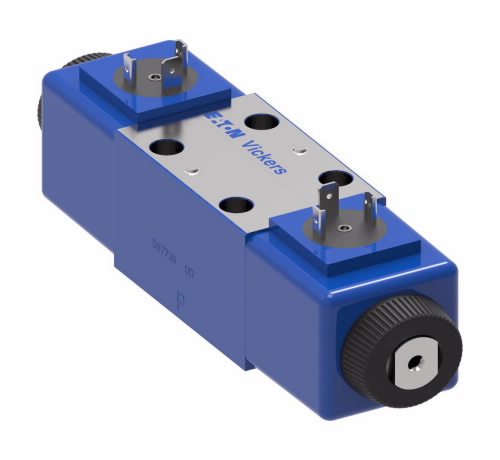

02-110087 DANFOSS | DG4V 3S 33C M U B5 60

Manufacturer: DANFOSS

Manufacturer Model #: 02-110087

EATON VICKERS DG4V-3 60 DESIGN DIRECTIONAL CONTROL VALVES SINGLE STAGE
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

: Actuation identification: Solenoid A, Solenoid B
Actuation type: Solenoid Operated
Actuator identification: Flag with Standard Build as Per ANSI B93 9
Application: Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material: Gray Iron
Body material7: Gray Iron
Build orientation: Solenoid `B` at port `A` end of valve and Solenoid `A` at port `B` end of valve
Build type: Spring centered
Coil rating: 110 Volt AC 50 Hz/120 Volt AC 60 Hz
Coil type: ISO 4400 mounting
Design code: 60
Design code11: 60
Diode: None
Eccn: EAR99
Electrical connector: ISO 4400 (Din 43650) Connector
Flow Rate: 80 litre per minute
Flow rate12: 80 litre per minute
Fluid cleanliness: 19/17/14 micron
Fluid compatibility: Petroleum oils
Fluid compatibility13: Petroleum Oils
Function: Directional Control Valve
Gauge port thread type: 0.4375 - 20 UNF, SAE Thread
Icc2: IV Directional Control Valves
Interface: ISO4401-03
Leakage: Standard
Light: No
Manual override: None
Model Code: DG4V-3S-33C-M-U-B5-60
Performance: Standard
Pressure rating: 350 bar
Product height: 3.42
Product height uom: inch
Product length: 7.87
Product length uom: inch
Product trade name: DG4V-3 60 Design
Product weight: 4.00
Product weight uom: pound
Product width: 1.80
Product width uom: inch
Reducer module: No
Response Time: 18-32 ms
Seal Material: Buna-N
Seal material16: Buna-N
Size: D03
Special features: None
Special features17: None
Spool center condition: A Port and Double Offset sensing switch on B Port
Spool monitor switch: None
Spring arrangement: C
Stage: Single Stage
Sub brand: Vickers
Tank port rating: 100 bar
Valve mount type: Subplate/manifold mounted
Wattage: 30 watt
Working temperature max: 70 degree Celsius
Working temperature min: -20 degree Celsius
: Documentlink catalog 2
Documentlink 3d model 1
Documentlink 2d drawings 1
Documentlink catalog 1
