Images are representative only. Please verify with our technical experts as actual product may differ.

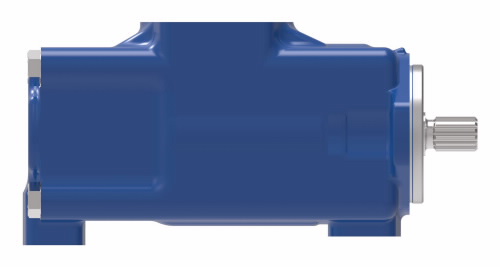

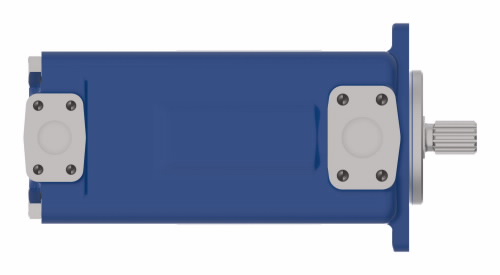

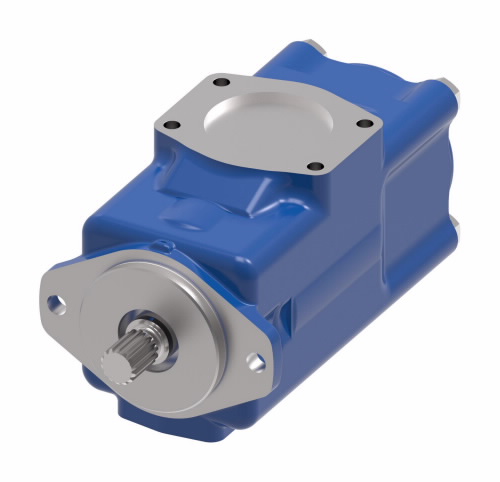

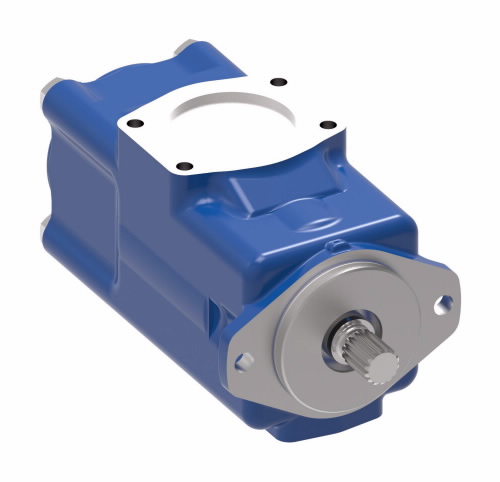

02-137480-5Â DANFOSSÂ |Â 4535V60A35 1AA22L
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-137480-5
EATON VICKERS V SERIES VANE PUMPS
Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency
Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency
- Application:Â Plastics Machinery, Press Machine, Die Casting, Machine Tools, Test Equipment, Primary Metal, Pulp & Paper, Wood Processing, Oil & Gas, Marine, and General IndustrialConfiguration:Â DoubleDesign code11:Â 22Displacement front:Â 193 cubic centimetre per revolutionDisplacement rear:Â 121 cubic centimetre per revolutionEccn:Â EAR99Frame size:Â 4535VFrame size front:Â 45VFrame size rear:Â 35VIcc2:Â Hydraulic - Vane PumpsIdentification:Â NoneMinimum speed:Â 1800 revolutions per minuteModel Code:Â 4535V60A35 1AA22LPaint:Â NoneProduct height:Â 7.31Product height uom:Â inchProduct length:Â 17.84Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â V SeriesProduct weight:Â 118.00Product weight uom:Â poundProduct width:Â 8.38Product width uom:Â inchRear outlet port position cover end view:Â Opposite inlet portRing size:Â 60Seal material16:Â Buna-NSeries:Â 4535VShaft rotation:Â LeftShafts:Â Straight KeyedSpecial features17:Â NoneSub brand:Â VickersVane function type:Â PumpWorking pressure max:Â 172 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
