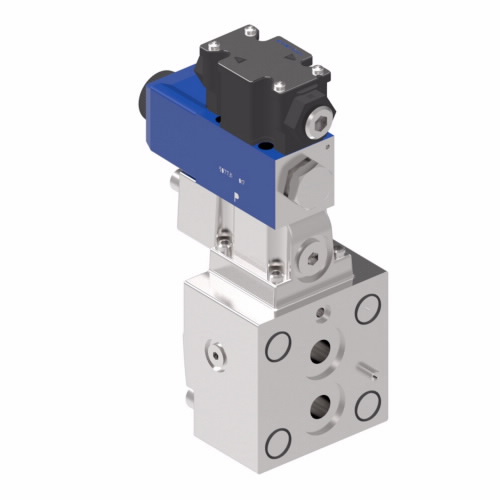

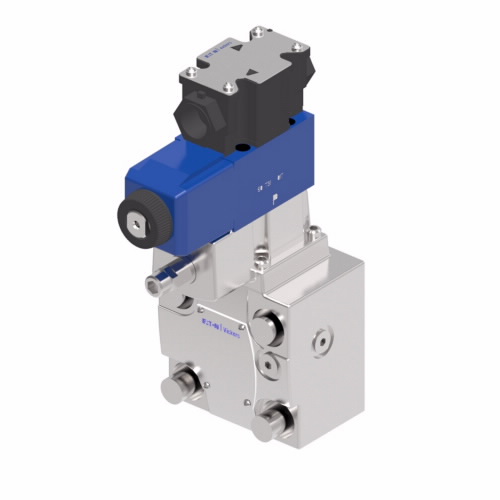

02-140968 DANFOSS | CG5-060A-F-M-FPA3WL-B5-P10-100-EN400

Manufacturer: DANFOSS

Manufacturer Model #: 02-140968

EATON VICKERS CG5-06 100 DESIGN PRESSURE CONTROL VALVES
Plug-and-play design|High-performance features|Moisture resistant

: Actuation option: Solenoid/Pilot Operated
Adjustment: Yes
Adjustment range: 1500-3000 psi
Application: Applications-requiring-an-adjustable-pressure-relief-or-regulating-valve-to-limit-the-pressure-in-a-hydraulic-circuit-to-a-desired-maximum.
Body material7: Cast Iron
Check valve: No
Coil voltage8: 115-120VAC60Hz/110VAC50Hz
Design code11: 100
Eccn: EAR99
Electrical connector: Flying Lead Coil with 3 Pin Connector & 1/2 In. NPT Thread Wiring Housing
Electrical flag: Yes
Flow rate12: 227 litre per minute
Fluid cleanliness: 19/17/14
Fluid compatibility13: Petroleum-oils
Function: Relief
Hi vent spring: No
Icc2: IV Pressure Valves
Interface: 3/4 In.
Leakage: Standard
Light: No
Manual override: No
Model Code: CG5-060A-F-M-FPA3WL-B5-P10-100-EN400
Performance: Standard
Pressure rating: 207 bar
Product height: 9.65
Product height uom: inch
Product length: 5.75
Product length uom: inch
Product trade name: CG5-06 100 Design
Product weight: 18.5
Product weight uom: pound
Product width: 2.81
Product width uom: inch
Remote control: No
Seal material16: Buna-N
Size: 6
Special features17: None
Spool monitor switch: No
Spring arrangement: F
Stage: Two Stage
Sub brand: Vickers
Valve mount type: Subplate/manifold mounted
Working temperature max: 70 degree Celsius
Working temperature min: -20 degree Celsius
: Documentlink technical bulletin 1
Documentlink catalog 1
