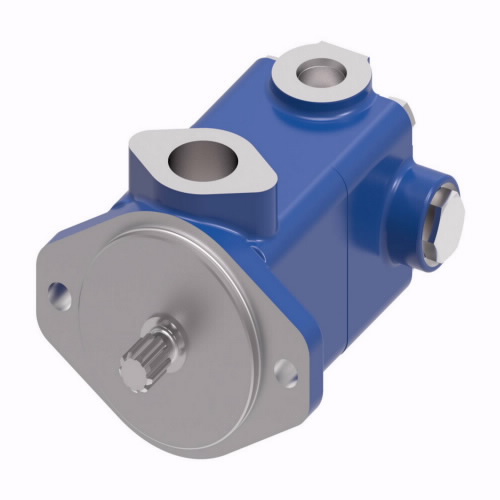

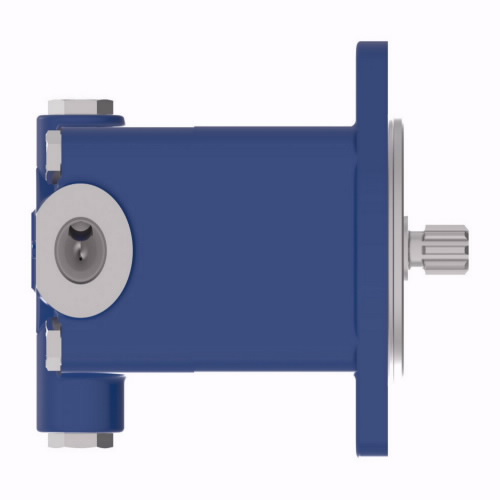

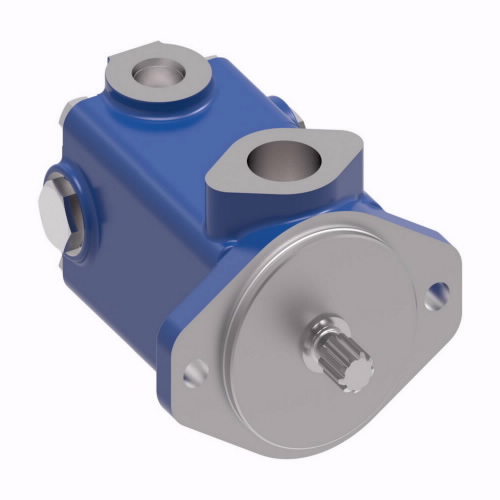

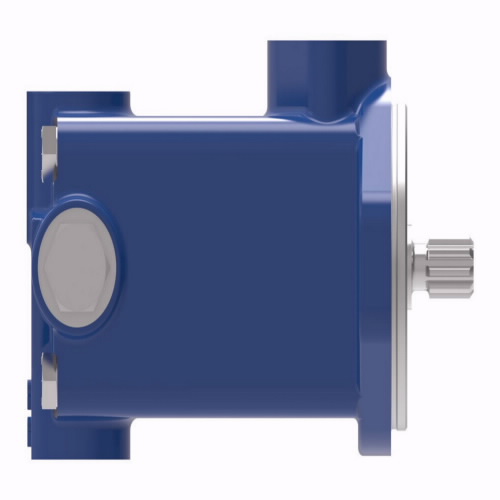

02-143299-3Â DANFOSSÂ |Â SINGLE VANE PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-143299-3
EATON VICKERS V10 AND V20 SERIES VANE PUMPS
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
- Application:Â Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection MoldingConfiguration:Â SingleDesign code11:Â 12Displacement:Â 19.5 cubic centimetre per revolutionEccn:Â EAR99Flow rate12:Â 61.93910016 litre per minuteFrame size:Â V20Front flange mounting style:Â SAE J744 101-2 (SAE B) 2 BoltFront outlet port position cover end view:Â INLINE WITH INLET PORTFront outlet port type:Â 0.750" NPT American STD Pipe ThreadIcc2:Â Hydraulic - Vane PumpsIdentification:Â NoneInlet port connections:Â 1.625-12 UN-2B St.ThreadMinimum speed:Â 3400 revolutions per minuteModel Code:Â V20P-1S6T-1C4H12Product height:Â 4.79Product height uom:Â inchProduct length:Â 7.87Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â V10 and V20 SeriesProduct weight:Â 18Product weight uom:Â poundProduct width:Â 5.12Product width uom:Â inchRear outlet port connections:Â 1.0625-12 UN-2B St.ThreadRing size:Â 6Seal material16:Â Buna-NSeries:Â V20Shaft rotation:Â RightShafts:Â SplinedSpecial features17:Â NoneSub brand:Â VickersVane function type:Â PumpWorking pressure max:Â 172 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
