SunSource | 02-145958 DANFOSS Industrial Hydraulics

Images are representative only. Please verify with our technical experts as actual product may differ.

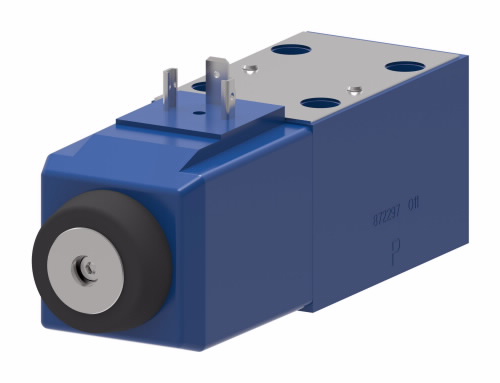

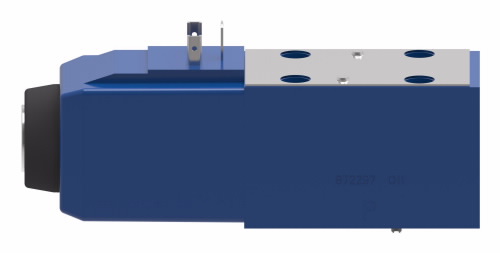

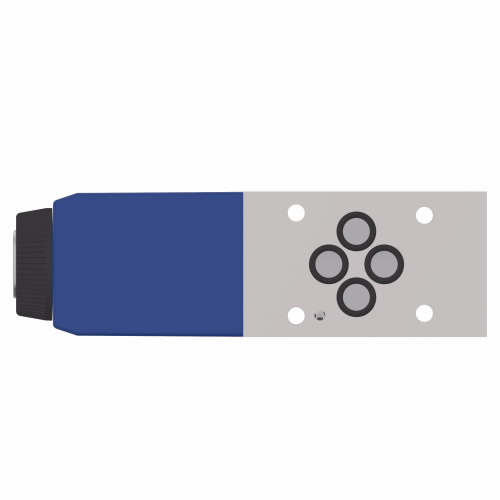

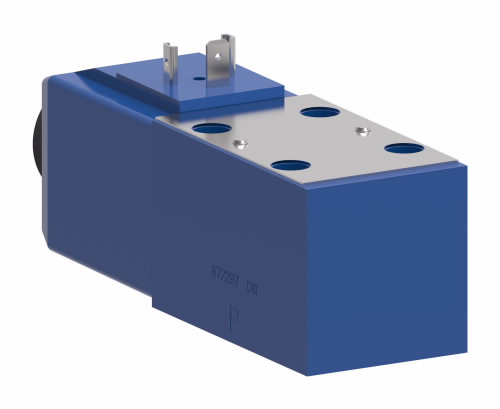

02-145958 DANFOSS | PROPORTIONAL DIRECTIONAL VALVES

Manufacturer: DANFOSS

Manufacturer Model #: 02-145958

EATON VICKERS KCG-3 10 DESIGN PROPORTIONAL VALVES WITHOUT OBE
Available in three performance levels - ultra, high and standard - to suit a wide range of application requirements|Direct-acting|Reduce commissioning time through plug-and-play funcitonality

: Actuation identification: Solenoid B
Actuation type: Solenoid Controlled
Application: Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material: Cast Iron
Body material7: Cast Iron
Build orientation: Solenoid at B Port End
Build type: Spring Offset
Check valve: No
Coil voltage: 24 Volt DC
Coil voltage8: 24 Volt DC
Communication bus: None
Communication bus9: None
Connector Type: DIN 43650
Connector type10: DIN 43650
Current: 1.6 ampere
Customer programmable: No
Design code: 10
Design code11: 10
Diode: None
Eccn: EAR99
Feedback sensor: No
Flow Rate: 5 litre per minute
Flow rate12: 5 litre per minute
Fluid cleanliness: 17/15/12
Fluid compatibility: Anti wear petroleum oils (L HM)
Fluid compatibility13: Anti wear petroleum oils (L HM)
Function: Pressure Relief Valve
Icc2: IV Proportional Valves
Interface: ISO4401-03/NFPA D03/CETOP 3/NG06
Leakage: Standard
Light: No
Manual override: None
Model Code: KCG-3-250D-Z-M-U-H1-10
On board electronics: None
Pressure rating: 350 bar
Product height: 3.00
Product height uom: inch
Product length: 6.10
Product length uom: inch
Product trade name: KCG-3 10 Design
Product weight: 3.80
Product weight uom: pound
Product width: 1.80
Product width uom: inch
Reducer module: No
Seal Material: Buna-N
Seal material16: Buna-N
Special features: None
Special features17: None
Spool center condition: None
Spring arrangement: B
Stage: Single Stage
Sub brand: Vickers
Symmetrical flow: Yes
Tank port rating: 210 bar
Valve mount type: Subplate
Working temperature max: 70 degree Celsius
Working temperature min: -20 degree Celsius
: Documentlink 2d drawings 1
Documentlink catalog 1
Documentlink brochure 1

SunSource Distribution Division: SunSource

Price:

Requires Quote

QTY

If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.

While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.

Submit request for pricing on RFQ products.

Our sales team will be in touch to provide you a quote.
