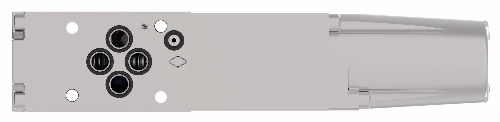

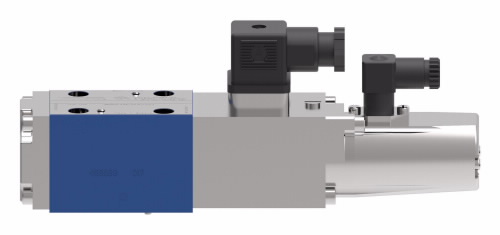

02-157887 DANFOSS | PROPORTIONAL DIRECTIONAL VALVES

Manufacturer: DANFOSS

Manufacturer Model #: 02-157887

EATON VICKERS KSDG4V-3 11 DESIGN PROPORTIONAL VALVES WITHOUT OBE
Available in three performance levels - ultra, high and standard - to suit a wide range of application requirements|Direct-acting|Reduce commissioning time through plug-and-play funcitonality

: Actuation identification: Solenoid A, Solenoid B
Actuation type: Solenoid Controlled
Application: Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material: Cast Iron
Body material7: Cast Iron
Build type: Standard
Check valve: No
Coil voltage: 24 Volt DC
Coil voltage8: 24 Volt DC
Communication bus: None
Communication bus9: None
Connector Type: Fitted Plugs
Connector type10: Fitted Plugs
Current: 3 ampere
Customer programmable: No
Design code: 11
Design code11: 11
Diode: None
Eccn: EAR99
Feedback sensor: No
Feedback type: +/-10V Voltage Feedback Signal, +/-10V Voltage Monitor
Flow Rate: 5 litre per minute
Flow rate12: 5 litre per minute
Fluid cleanliness: 17/15/12
Fluid compatibility: Antiwear Hydraulic Oils And Non Alkyl Based Phosphate Esters
Fluid compatibility13: Antiwear Hydraulic Oils And Non Alkyl Based Phosphate Esters
Function: Directional Control Valve
Icc2: IV Proportional Valves
Interface: ISO4401-03/NFPA D03/CETOP 3/NG06
Leakage: Standard
Light: No
Manual override: Plain
Model Code: KSDG4V-3-92L-05-M-U1-H7-11
On board electronics: None
Performance: Standard
Pressure drop at rated flow: 70 bar
Pressure rating: 350 bar
Product height: 3.43
Product height uom: inch
Product length: 9.09
Product length uom: inch
Product trade name: KSDG4V-3 11 Design
Product weight: 4.60
Product weight uom: pound
Product width: 1.89
Product width uom: inch
Reducer module: No
Seal Material: Fluorocarbon
Seal material16: Fluorocarbon
Special features: None
Special features17: None
Spool center condition: Zero Lap
Spring arrangement: No Spring
Stage: Single Stage
Sub brand: Vickers
Symmetrical flow: Yes
Tank port rating: 210 bar
Valve mount type: Subplate
Working temperature max: 70 degree Celsius
Working temperature min: -20 degree Celsius
: Documentlink catalog 2
Documentlink catalog 1
Documentlink brochure 1
