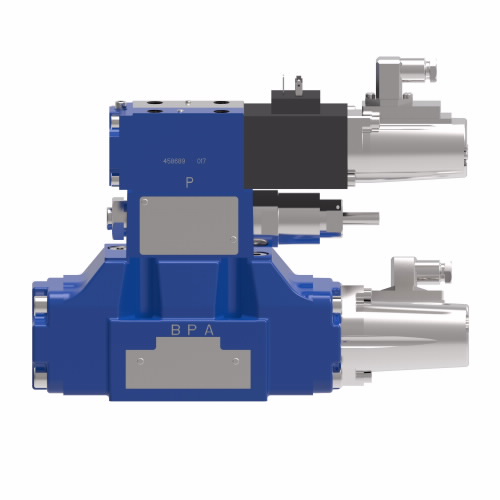

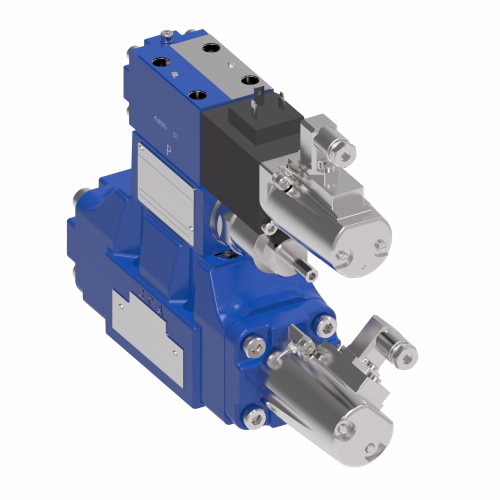

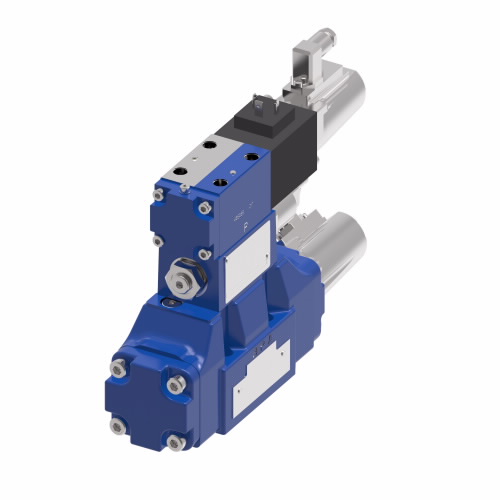

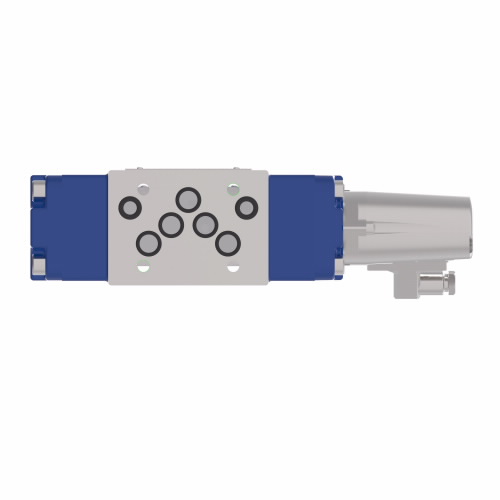

02-319215Â DANFOSSÂ |Â PROPORTIONAL DIRECTIONAL VALVES
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-319215
EATON VICKERS KHDG5V-5 20 DESIGN PROPORTIONAL VALVES WITHOUT OBE
Available in three performance levels - ultra, high and standard - to suit a wide range of application requirements|Direct-acting|Reduce commissioning time through plug-and-play funcitonality
Available in three performance levels - ultra, high and standard - to suit a wide range of application requirements|Direct-acting|Reduce commissioning time through plug-and-play funcitonality
- Actuation identification:Â Solenoid A, Solenoid BActuation type:Â Solenoid Controlled Pilot OperatedApplication:Â Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)Body material7:Â Ductile IronBuild orientation:Â Solenoid A at A port end, solenoid B at B port endBuild type:Â Spring centeredCheck valve:Â NoCoil voltage8:Â 24 Volt DCCommunication bus9:Â NoneConnector type10:Â DIN 43650Current:Â 2.7 ampereCustomer programmable:Â NoDesign code11:Â 20Diode:Â NoneEccn:Â EAR99Feedback sensor:Â YesFeedback type:Â 2-Stage LvdtFlow rate12:Â 85 litre per minuteFluid cleanliness:Â 17/15/12Fluid compatibility13:Â Anti wear petroleum oils (L HM)Function:Â Directional Control ValveIcc2:Â IV Proportional ValvesInterface:Â ISO4401-05/NFPA D05/CETOP 5/NG10Leakage:Â StandardLight:Â NoManual override:Â PlainModel Code:Â KHDG5V-5-5C85N-X-VM-U1-H1-20On board electronics:Â KHPerformance:Â StandardPilot drain:Â InternalPilot supply:Â InternalPressure drop at rated flow:Â 5 barPressure rating:Â 350 barProduct height:Â 8.39Product height uom:Â inchProduct length:Â 10.28Product length uom:Â inchProduct trade name:Â KHDG5V-5 20 DesignProduct weight:Â 21.50Product weight uom:Â poundProduct width:Â 2.86Product width uom:Â inchReducer module:Â YesSeal material16:Â Buna-NSpecial features17:Â NoneSpool center condition:Â Zero LapSpring arrangement:Â CStage:Â Two StageSub brand:Â VickersSymmetrical flow:Â YesTank port rating:Â 350 barValve mount type:Â SubplateWorking temperature max:Â 70 degree CelsiusWorking temperature min:Â -20 degree Celsius
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
