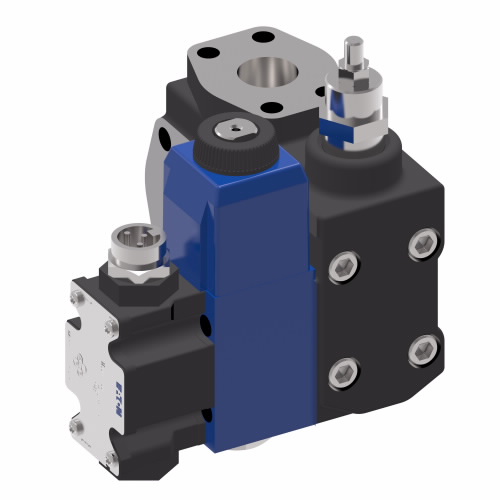

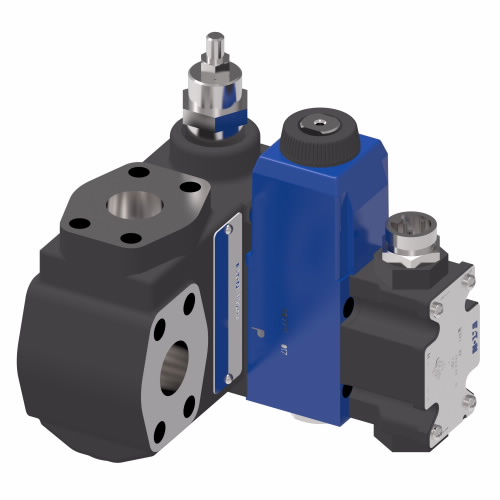

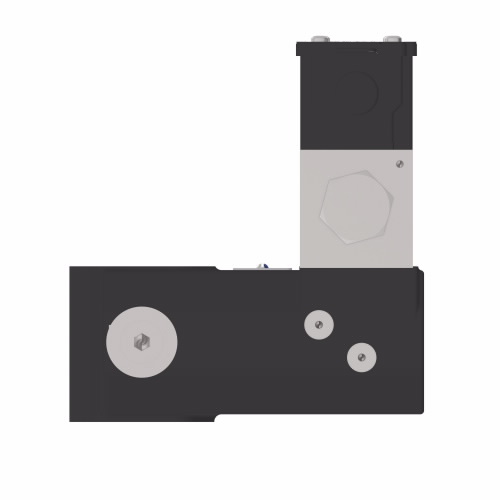

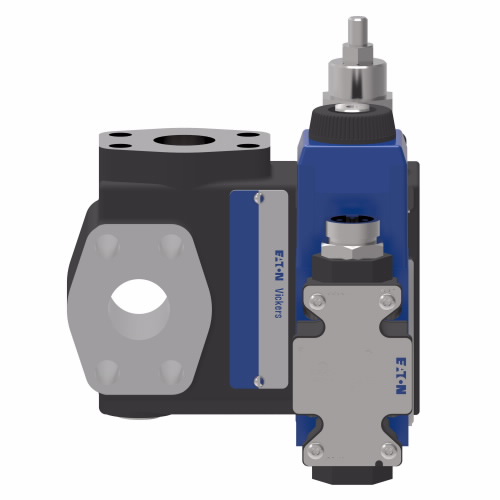

02-321452 DANFOSS | RELIEF VALVE WITH VENTING

Manufacturer: DANFOSS

Manufacturer Model #: 02-321452

EATON VICKERS CPF2S-08 20 DESIGN PRESSURE CONTROL VALVES
Plug-and-play design|High-performance features|Moisture resistant

: Actuation option: Manually Operated
Adjustment: Yes
Adjustment range: 145-1450 psi
Adjustment type: Screw with locknut
Application: Applications requiring an adjustable pressure relief or regulating valve to limit the pressure in a hydraulic circuit to a desired maximum
Body material7: Cast Iron
Check valve: No
Design code11: 20
Drain: Internal
Eccn: EAR99
Electrical connector: Flying Lead Coil With 5 Pin Connector & G 1/2 In. Thread Wiring Housing
Electrical flag: Yes
Flow rate12: 300 litre per minute
Fluid cleanliness: 19/17/14
Fluid compatibility13: Petroleum Oils
Function: Relief
Gauge port thread type: SAE
Hi vent spring: No
Icc2: IV Pressure Valves
Interface: 1 In.
Leakage: Standard
Light: No
Manual override: Yes
Model Code: CPF2S-08-B-W-3S-M-FPA5WL-B5-20
Performance: Standard
Pressure rating: 275 bar
Product height: 7.09
Product height uom: inch
Product length: 5.68
Product length uom: inch
Product trade name: CPF2S-08 20 Design
Product weight: 15.8
Product weight uom: pound
Product width: 6.07
Product width uom: inch
Remote control: No
Seal material16: Buna-N
Size: 8
Special features17: None
Stage: Single Stage
Sub brand: Vickers
Switch connector: No
Tank port rating: 100 bar
Valve mount type: Pump flange mounting
Wattage: 30 watt
Working temperature max: 70 degree Celsius
Working temperature min: -20 degree Celsius
: Documentlink technical bulletin 1
Documentlink catalog 1
