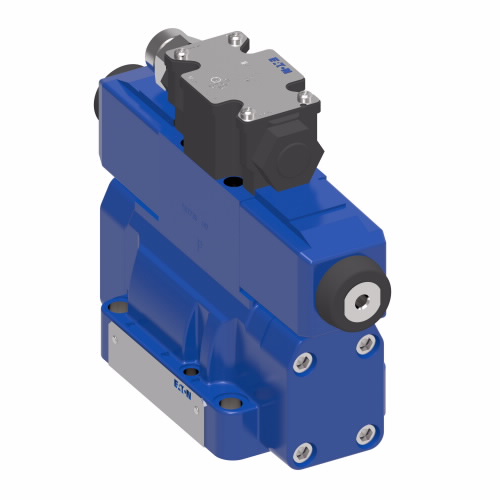

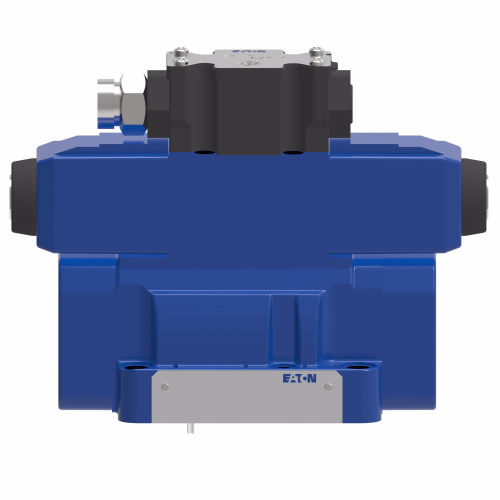

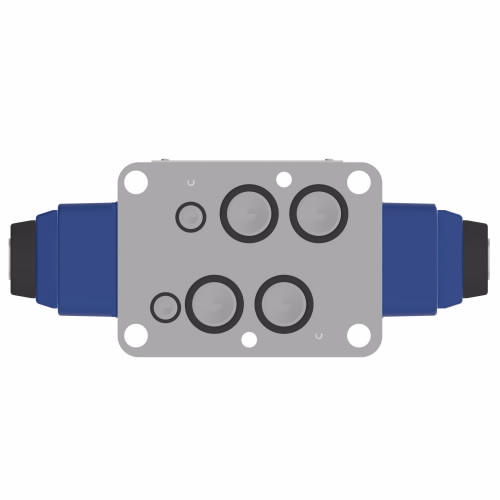

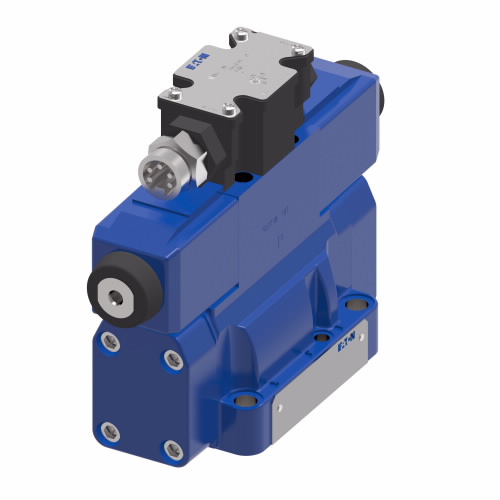

02-336399Â DANFOSSÂ |Â F3-DG5S4-02-2N-M-FPBWL-B
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-336399
EATON VICKERS DG5S4-02 20 DESIGN DIRECTIONAL CONTROL VALVES TWO STAGE
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
- Actuation identification:Â Solenoid A, Solenoid BActuation type:Â Pilot OperatedActuator identification:Â Flag with Standard Build as Per ANSI B93 9Application:Â Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)Body material7:Â Gray IronBuild orientation:Â Solenoid `B` at port `A` end of valve and Solenoid `A` at port `B` end of valveBuild type:Â No spring detentedCoil rating:Â 110 Volt AC 50 Hz/120 Volt AC 60 HzCoil type:Â 1/2 inch NPT thread conduit boxDesign code11:Â 20Diode:Â NoneEccn:Â EAR99Electrical connector:Â Flying Lead Coil with Wired Terminal Block & 1/2 In. NPT Thread Wiring HousingFlow rate12:Â 115 litre per minuteFluid cleanliness:Â 19/17/14 micronFluid compatibility13:Â Phosphate EsterFunction:Â Directional Control ValveIcc2:Â IV Directional Control ValvesInterface:Â ISO/DIS 4401-02-02Leakage:Â StandardLight:Â NoManual override:Â PlainModel Code:Â F3-DG5S4-02-2N-M-FPBWL-B5-20Pilot drain:Â ExternalPilot supply:Â InternalPressure rating:Â 210 barProduct height:Â 6.32Product height uom:Â inchProduct length:Â 7.87Product length uom:Â inchProduct trade name:Â DG5S4-02 20 DesignProduct weight:Â 13.50Product weight uom:Â poundProduct width:Â 2.63Product width uom:Â inchReducer module:Â NoSeal material16:Â NitrileSize:Â D02Special features17:Â NoneSpool center condition:Â A Port and Double Offset sensing switch on B PortSpool monitor switch:Â NoneSpring arrangement:Â No SpringStage:Â Two StageSub brand:Â VickersTank port rating:Â 100 barValve mount type:Â Subplate/manifold mountedWattage:Â 30 wattWorking temperature max:Â 66 degree CelsiusWorking temperature min:Â -18 degree Celsius
SunSource Distribution Division: SunSource
Price:Â Requires Quote
