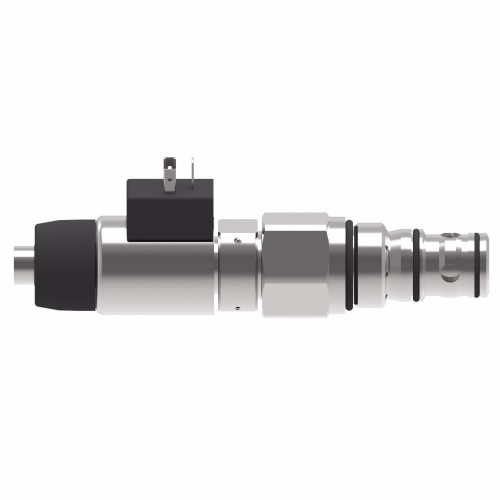

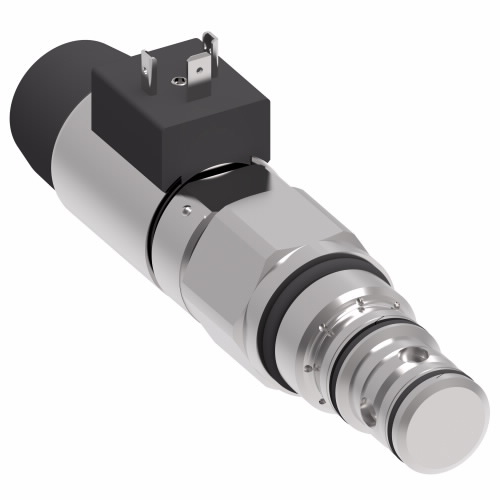

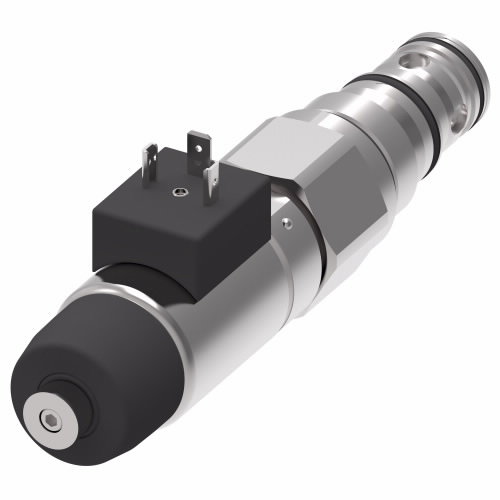

02-400815Â DANFOSSÂ |Â EPV16-B-10-0-0-NF-12D-M-
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-400815
EATON PROPORTIONAL VALVES
Rated flows up to 160 L/min (42 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Rated flows up to 160 L/min (42 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
- Cavity: C-16-3SCoil series: EPV SeriesCoil termination: Deutsch MouldedEccn: EAR99Flow direction: Side in-Nose OutFlow rate12: 100 litre per minuteFluid compatibility13: MIL-H-5606, SAE 10, SAE 20 etcFunction: Solenoid ValveHousing: NoHousing material: SteelIcc2: SICV Proportional ValvesInstallation type: Screw-in CartridgeLeakage: StandardModel Code: EPV16-B-10-0-0-NF-12D-M-N-13-S28Number of housing ports: 2Number of valve ports: 2Operating temperature: -30°C to +90°COperation: Direct ActingOverride type: Push Pin Type Manual OverridePort Size: Catridge OnlyPort type: Cartridge OnlyPressure rating: 280 barProduct height: 1.71Product height uom: inchProduct length: 7.29Product length uom: inchProduct trade name: EPV16 SeriesProduct weight: 2.2Product weight uom: poundProduct width: 1.71Product width uom: inchRecommended filtration level: 15/13/11Seal Type: Buna-NSpecial features17: NoneStyle: PoppetSub brand: VickersValve Material: Cartridge onlyVoltage: 12 voltVoltage type22: DCWorking pressure max: 280 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
