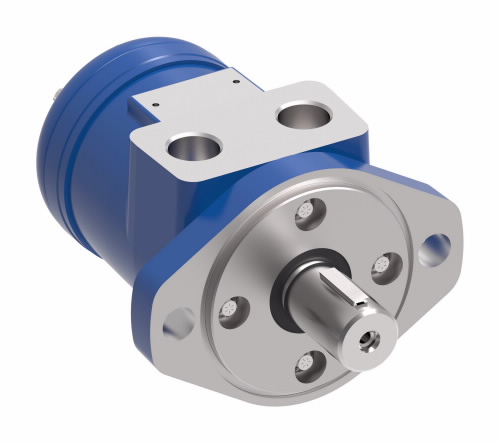

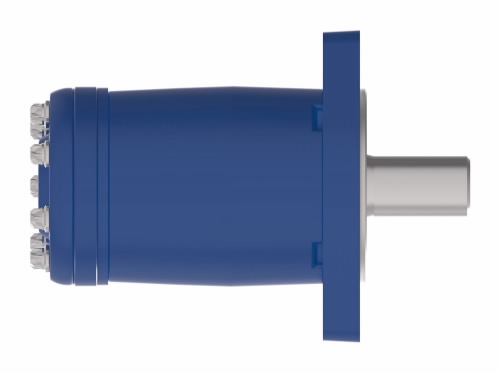

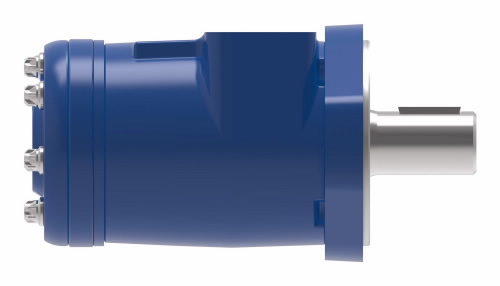

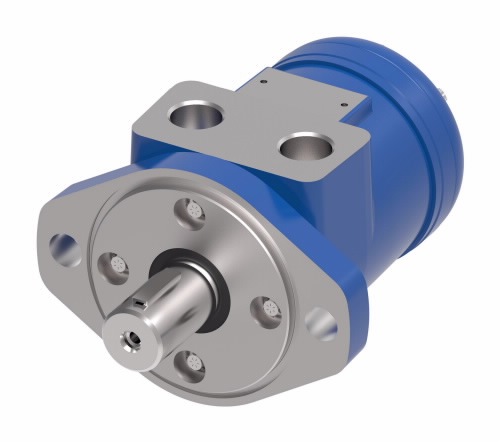

101-1661-009Â DANFOSSÂ |Â H SERIES MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 101-1661-009
EATON CHAR-LYNN H SERIES SPOOL GEROLER
Compact yet powerful|Extended bearing life|Increased shaft seal
Compact yet powerful|Extended bearing life|Increased shaft seal
- Application: Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishersBrake type: HydraulicCase flow options: G 1/4 BSP Straight Thread Port (End Cap)Design code11: 9Displacement: 74 cubic centimetre per revolutionEccn: EAR99Flow rate12: 57 litre per minuteFront seal kit if available: 60540-000Geroler options: NoneIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 165 barLow pressure relief: NoneMaximum speed: 760 revolutions per minuteModel Code: MH0045AA24AF0200000000000AA00JMounting Type: 2 Bolt Std - 82.50 [3.248] Dia. X 3.05 [.120] Pilot, 13.59 [.535] Dia. Mounting Holes On 106.35 [4.187] Dia. B.C.Output shaft type: StraightPaint: Primer Low Gloss BlackPort type: G 1/2 BSP Straight Thd PortsPressure flow option: NoneProduct height: 3.87Product height uom: inchProduct length: 6.60Product length uom: inchProduct material: Cast IronProduct trade name: H SeriesProduct weight: 11.50Product weight uom: poundProduct width: 5.27Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: StandardShaft options: NoneSpecial assembly instructions: NoneSpecial features hardware: NoneSpeed sensor: NoSub brand: Char-LynnTorque: 118 newton metreTwo speed ratio: NoneValve options: NoneViscosity recommendation: 100 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
