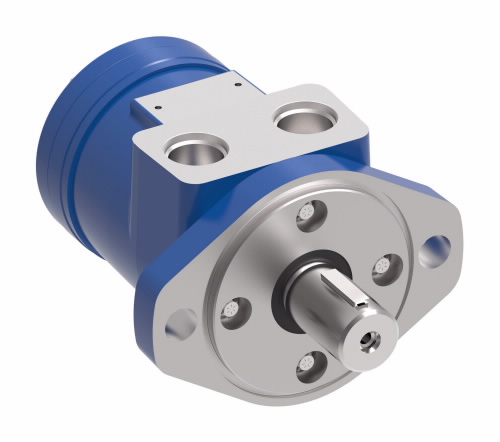

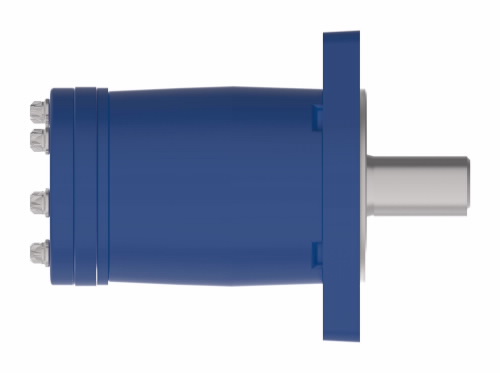

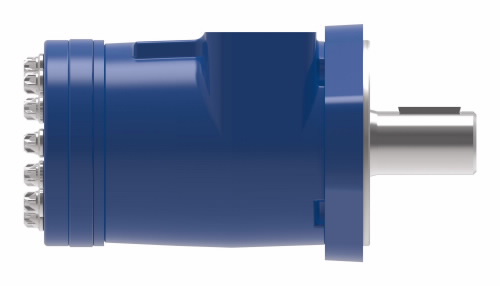

101-3499-009Â DANFOSSÂ |Â H SERIES MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 101-3499-009
EATON CHAR-LYNN H SERIES SPOOL GEROLER
Compact yet powerful|Extended bearing life|Increased shaft seal
Compact yet powerful|Extended bearing life|Increased shaft seal
- Application: Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishersBrake type: NoneCase flow options: .4375-20 UNF-2B SAE O-Ring Port (End Cap)Design code11: 9Displacement: 58 cubic centimetre per revolutionEccn: EAR99Flow rate12: 57 litre per minuteGeroler options: Free RunningIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 165 barLow pressure relief: NoneMaximum speed: 953 revolutions per minuteModel Code: MH0035AA01AA00A0000000002AA00JMounting Type: 2 Bolt Std - 82.50 [3.248] Dia. X 3.05 [.120] Pilot, 13.59 [.535] Dia. Mounting Holes On 106.35 [4.187] Dia. B.C.Output shaft type: StraightPaint: Primer Low Gloss BlackPort type: .875-14 UNF-2B SAE O-Ring PortsPressure flow option: NoneProduct height: 3.87Product height uom: inchProduct length: 6.60Product length uom: inchProduct material: Cast IronProduct trade name: H SeriesProduct weight: 11.50Product weight uom: poundProduct width: 5.27Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: StandardShaft options: NoneSpecial assembly instructions: Flange Rotated 90 DegreesSpecial features hardware: NoneSpeed sensor: NoSub brand: Char-LynnTorque: 91 newton metreValve options: NoneViscosity recommendation: 100 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
