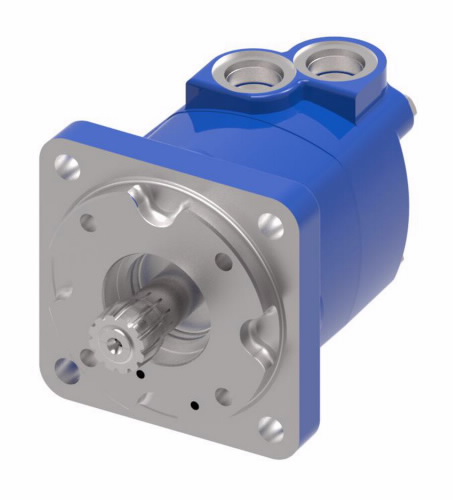

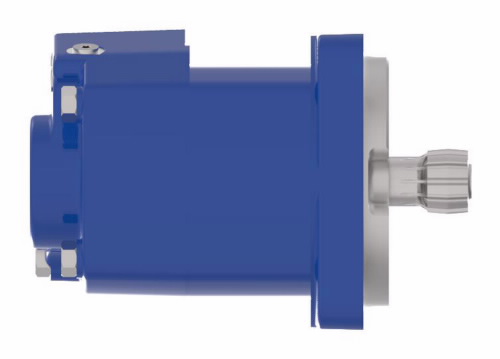

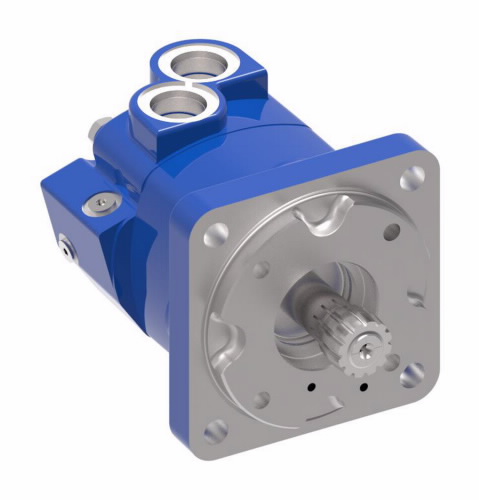

109-1702-006Â DANFOSSÂ |Â LOW SPEED HIGH TORQUE MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 109-1702-006
EATON CHAR-LYNN 4000 SERIES DISC GEROLER
Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
- Application: Other: Mowing, Snow Removal, Sprayer, Trencher, Wood ProductsBrake type: NoneCase flow options: .4375-20 UNF-2B SAE O-Ring Port With Check ValveDesign code11: 6Displacement: 205.5 cubic centimetre per revolutionEccn: EAR99Flow rate12: 95 litre per minuteFront seal kit if available: 9900777-000Geroler options: StandardIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 260 barLow pressure relief: NoneMaximum speed: 459 revolutions per minuteModel Code: M04125AF17AB0200009000000AA00FMounting Type: Standard, 4 Bolt; 127.00 [5.000] Pilot Dia 14.27 [.562] Dia.Holes On 161.92 [6.375] Dia. Bolt Circle.(SAE C)Output shaft type: SplinePaint: Primer Low Gloss BlackPort type: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered PortsPressure flow option: NoneProduct height: 5.84Product height uom: inchProduct length: 11.94Product length uom: inchProduct material: Cast IronProduct trade name: 4000 SeriesProduct weight: 40.50Product weight uom: poundProduct width: 5.84Product width uom: inchRear seal kit if available: 9900950-000Recommended system working temperature: -34°C to 82°CSeal options: High Pressure Shaft Seal, Seal GuardShaft options: NoneSpecial assembly instructions: NoneSpecial features hardware: NoneSpeed sensor: NoSub brand: Char-LynnTorque: 600 newton metreValve options: NoneViscosity recommendation: 70 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
