Images are representative only. Please verify with our technical experts as actual product may differ.
123AL02444AÂ DANFOSSÂ |Â PVM131ER13GS02AAA2300000EA0A
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 123AL02444A

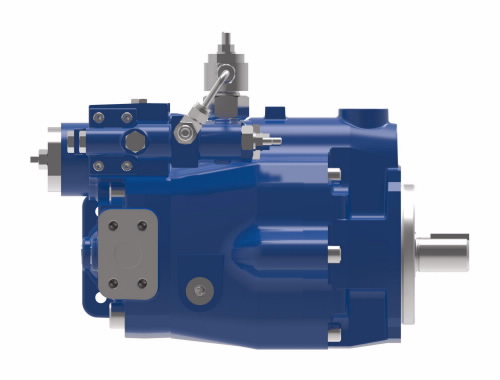

EATON VICKERS PVM SERIES OPEN CIRCUIT PISTON PUMP
50% less noise|Outstanding performance|Pro-FX ready
50% less noise|Outstanding performance|Pro-FX ready
- Application:Â Mining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting EquipmentAuxiliary mounting:Â SAE C, 2-/4-Bolt 14T SplineBearing life at rated pressure:Â 8000 hourCode title:Â Variable DisplacementCold start temperature limit:Â 104 degree CelsiusController type:Â Pressure CompensatorDesign code11:Â ADisplacement:Â 131.1 cubic centimetre per revolutionEccn:Â EAR99End cover material:Â Ductile IronFluid cleanliness:Â ISO 18/13Fluid compatibility13:Â SAE J183 FEB80Housing material:Â Cast IronIcc2:Â Industrial - OC Piston PumpsIdentification:Â NoneInput mounting flange:Â SAE J744-127-4 (C, 4-Bolt)Input shaft:Â SAE J744-44-1, SAE D, Straight KeyedInput speed at 0 8 bar absolute:Â 1600 revolutions per minuteInput speed at 1 0 bar absolute:Â 2000 revolutions per minuteInput speed maximum:Â 2000 revolutions per minuteInput speed minimum:Â 0 revolutions per minuteInput speed rated:Â 1800 revolutions per minuteMain port size location:Â SideMaximum case pressure:Â 350 barMaximum input power:Â 113 kilowattMaximum input torque:Â 596 newton metreMaximum recommended oil viscosity:Â 40 centistokesMinimum recommended oil viscosity:Â 16 centistokesModel Code:Â PVM131ER13GS02AAA2300000EA0ANoise:Â 64 decibelNominal pressure rating:Â 315 barPaint:Â BluePeak pressure rating:Â 350 barPressure compensator setting:Â 234 barProduct height:Â 9.87Product height uom:Â inchProduct length:Â 16.98Product length uom:Â inchProduct trade name:Â PVM SeriesProduct weight:Â 145.00Product weight uom:Â poundProduct width:Â 9.55Product width uom:Â inchShaft rotation:Â RightSpecial features17:Â Adjustable Max Displacement Stop (Contains Single Shaft Seal)Sub brand:Â VickersValve plate:Â IndustrialVsd ready:Â No
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
