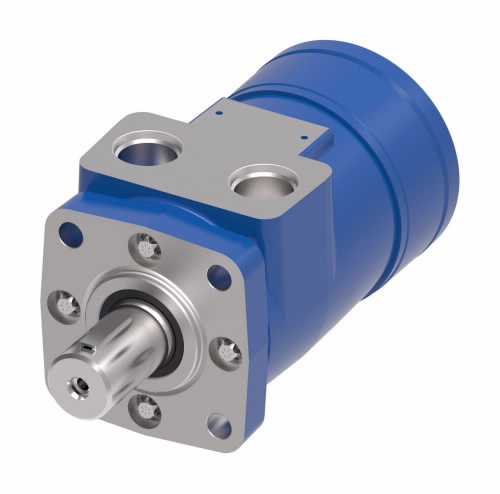

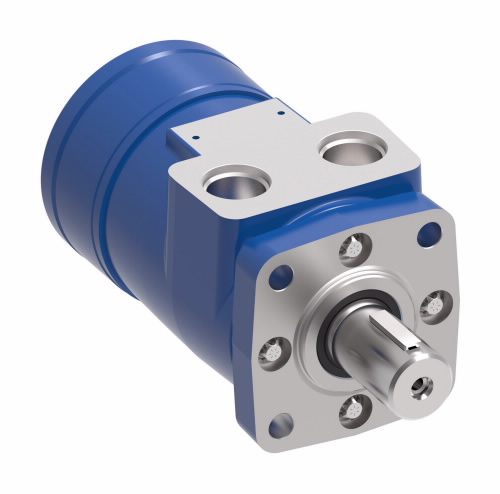

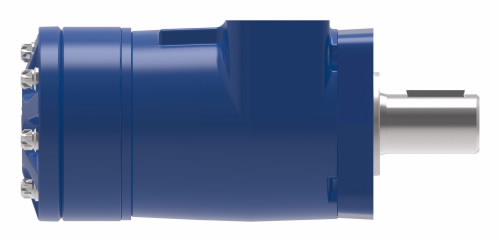

158-3707-001Â DANFOSSÂ |Â T MOTOR AH226241 19768-0
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 158-3707-001
EATON CHAR-LYNN T SERIES SPOOL GEROLER
Compact yet powerful|Extended bearing life|Increased shaft seal
Compact yet powerful|Extended bearing life|Increased shaft seal
- Application: Agricultural augers, Harvesters, Seeders, Railroad maintenance equipmentBrake type: NoneCase flow options: NoneDesign code11: 1Displacement: 158 cubic centimetre per revolutionEccn: EAR99Flow rate12: 57 litre per minuteGeroler options: NoneIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 172 barLow pressure relief: NoneMaximum speed: 355 revolutions per minuteModel Code: MT0096UA22AAB000700DL1S1AMounting Type: 4 Bolt Magneto - 82.50 [3.248] Dia X 3.05 [.120] Pilot, M12 X 1.75-6H Threaded Holes On 106.35 [4.187] Dia. B.C.Output shaft type: StraightPaint: Low Gloss Black Per JDH 612Port type: .875-14 UNF-2B SAE O-Ring PortsPressure flow option: NoneProduct height: 3.46Product height uom: inchProduct length: 7.09Product length uom: inchProduct material: Cast IronProduct trade name: T SeriesProduct weight: 13.5Product weight uom: poundProduct width: 3.38Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: High Pressure Shaft SealShaft options: NoneSpecial assembly instructions: Reverse RotationSpecial features hardware: Increased Housing LeakageSpeed sensor: NoSub brand: Char-LynnTorque: 297 newton metreValve options: NoneViscosity recommendation: 70 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
