T-MOTOR

158-4072-001
T-MOTOR
  • Application: Agricultural augers, Harvesters, Seeders, Railroad maintenance equipment
  • Brake type: None
  • Case flow options: None
  • Design code11: 1
  • Displacement: 65 cubic centimetre per revolution
  • Eccn: EAR99
  • Flow rate12: 57 litre per minute
  • Geroler options: Free Running
  • Icc2: Low-Speed Gerotor/Geroler
  • Identification: None
  • Intermittent pressure: 190 bar
  • Low pressure relief: None
  • Maximum speed: 849 revolutions per minute
  • Model Code: MT0040AA16AA00A0000000AB0AA00A
  • Mounting Type: 2 Bolt Standard, 82.55 x 2.8 Pilot .2-13.5 Dia Mounting Holes on 106.4 DIA B.C.
  • Output shaft type: Spline
  • Paint: Primer Low Gloss Black
  • Port type: .875-14 UNF-2B SAE O-Ring Ports
  • Pressure flow option: None
  • Product height: 5.27
  • Product height uom: inch
  • Product length: 6.30
  • Product length uom: inch
  • Product material: Cast Iron
  • Product trade name: T Series
  • Product weight: 12.50
  • Product weight uom: pound
  • Product width: 3.87
  • Product width uom: inch
  • Recommended system working temperature: -34°C to 82°C
  • Seal options: Standard
  • Shaft options: None
  • Special assembly instructions: None
  • Special features hardware: Low Speed Valving
  • Speed sensor: No
  • Sub brand: Char-Lynn
  • Torque: 138 newton metre
  • Valve options: None
  • Viscosity recommendation: 70 Saybold universal second

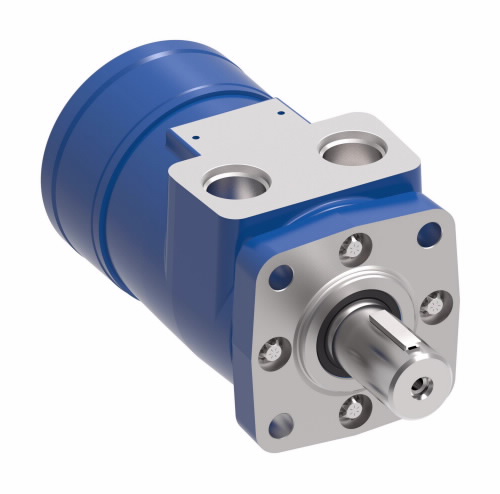

EATON CHAR-LYNN T SERIES SPOOL GEROLER
Compact yet powerful|Extended bearing life|Increased shaft seal
