Images are representative only. Please verify with our technical experts as actual product may differ.
175-0004-001Â DANFOSSÂ |Â 4KC 2SPD PAIINTED BLACK
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 175-0004-001

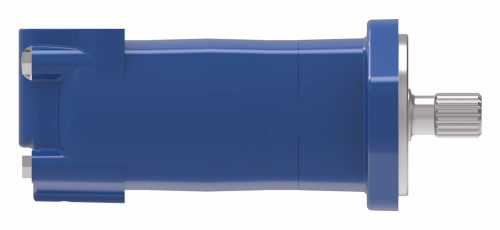

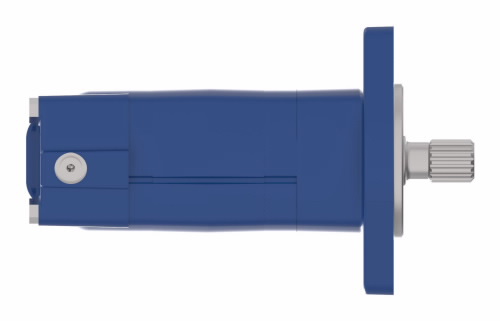

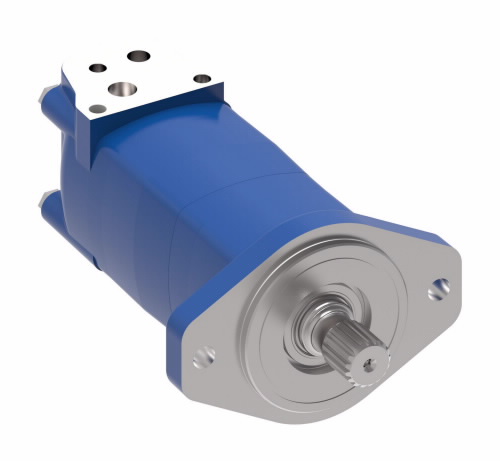

EATON CHAR-LYNN 4000 SERIES DISC GEROLER
Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
- Application: OtherBrake type: NoneCase flow options: .5625-18 UNF-2B SAE O-Ring Port Case Drain, Optional .4375-20 UNF-2B SAE O-Ring Port Case DrainDesign code11: 1Displacement: 250 cubic centimetre per revolutionEccn: EAR99Flow rate12: 75 litre per minuteGeroler options: NoneIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 310 barLow pressure relief: NoneMaximum speed: 300 revolutions per minuteModel Code: ADS15____AA0100000B__0A0AMounting Type: Standard, 4 Bolt; 127.00 [5.000] Pilot Dia 14.27 [.562] Dia.Holes On 161.92 [6.375] Dia. Bolt Circle.(SAE C)Output shaft type: SplinePaint: Low Gloss BlackPort type: .875-14 UNF-2B SAE O-Ring Ports, Staggered Ports, .4375-20 UNF-2B SAE O-Ring Pilot Control PortPressure flow option: NoneProduct height: 5.84Product height uom: inchProduct length: 11.20Product length uom: inchProduct material: Cast IronProduct trade name: 4000 SeriesProduct weight: 25.00Product weight uom: poundProduct width: 5.84Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: NoneShaft options: NoneSpecial assembly instructions: NoneSpecial features hardware: Enhanced BearingsSpeed sensor: NoSub brand: Char-LynnTorque: 734 newton metreTwo speed ratio: 2:1Valve options: NoneViscosity recommendation: 70 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
