17E577Â GRACOÂ |Â SPRAYER, 695, HI, PROCONTRACTOR
Manufacturer:Â GRACO
Manufacturer Model #:Â 17E577

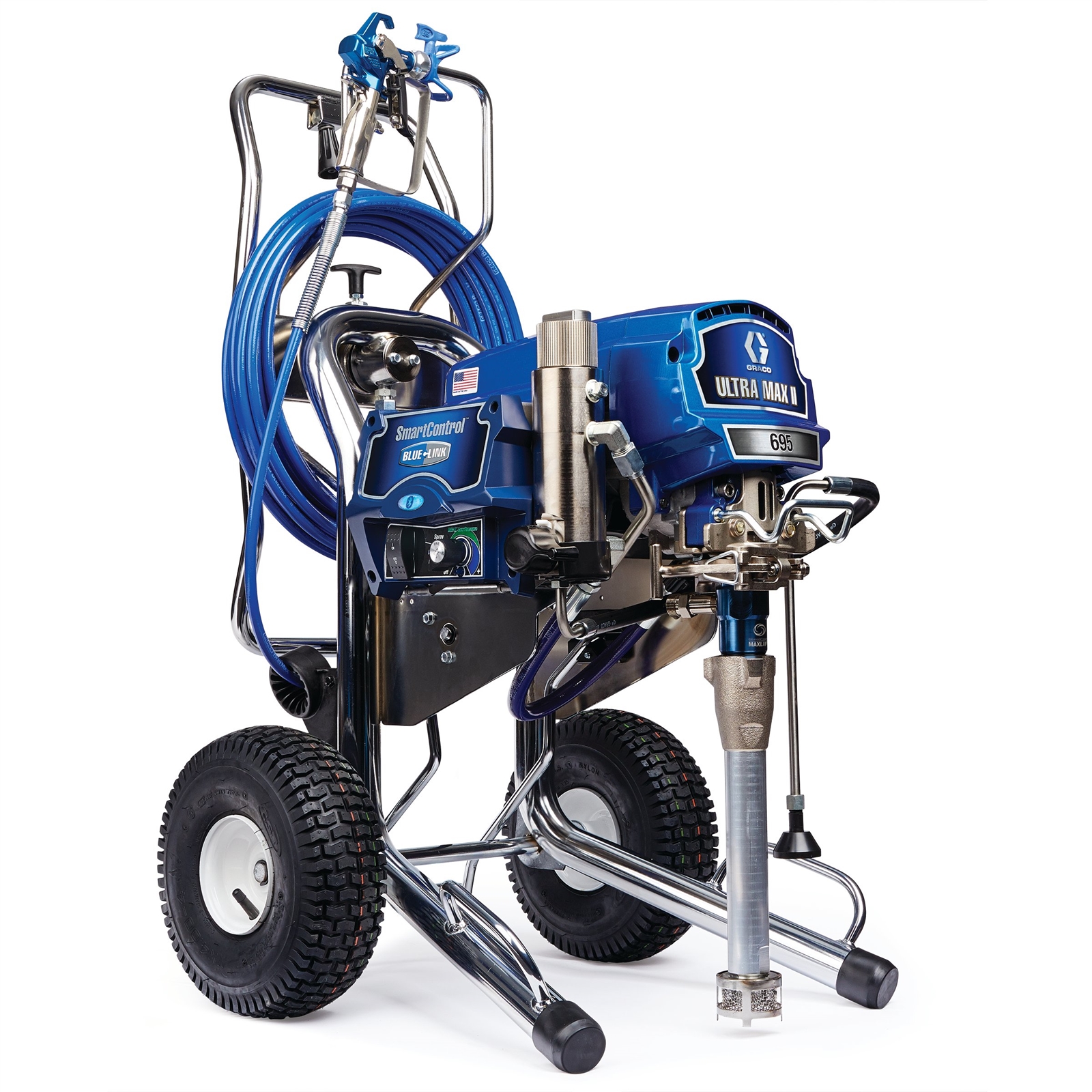

GRACO 17E577 ULTRA MAX II 695 PROCONTRACTOR SERIES ELECTRIC AIRLESS SPRAYER
- Amperage (a):Â 15Compatible material:Â Interior Latex;Exterior Latex;Oil-Based Primer;Acrylics;Block FillerDimension uom code:Â INDivision code:Â CEDEngine size (hp):Â 2Features:Â Endurance Vortex MaxLife Pump;SmartControl 4.0;BlueLink System;QuikReel;MaxPower Brushless;Advantage Drive;ProConnect 2;FastFlush 2;Easy Out Filter;Crushproof Inlet Strainer;Heavy-Duty Prime Valve;WatchDog;Contractor PC GunFilter mesh size:Â 60Fluid outlet size (cm):Â 0.635Fluid outlet size (in):Â 1/4Fluid outlet size (mm):Â 6.35Fluid outlet thread type:Â NPSMFrame configuration:Â Hi-BoyFrequency (hz):Â 50/60Hose inlet diameter (cm):Â 0.635Hose inlet diameter (in):Â 1/4Hose inlet diameter (mm):Â 6.35Hose reel type:Â QuikReelIncludes:Â Contractor PC Gun;RAC X LTX 517 Spray Tip;RAC X Guard;1/4 in x 50 ft BlueMax II Airless HoseMaximum flow rate (gpm):Â 0.95Maximum flow rate (l/min):Â 3.6Maximum sound pressure level (db(a)):Â 82Maximum tip size (cm):Â 0.0787Maximum tip size (in):Â 0.031Maximum tip size (mm):Â 0.7874Maximum tip size gun 1 (cm):Â 0.0787Maximum tip size gun 1 (in):Â 0.031Maximum tip size gun 1 (mm):Â 0.7874Maximum tip size gun 2 (cm):Â 0.0584Maximum tip size gun 2 (in):Â 0.023Maximum tip size gun 2 (mm):Â 0.584Maximum working pressure (bar):Â 228Maximum working pressure (kpa):Â 22800Maximum working pressure (mpa):Â 22.8Maximum working pressure (psi):Â 3300Minimum generator power (w):Â 5000Motor type:Â MaxPowerNumber of guns:Â 2Overall height (cm):Â 98.4Overall height (in):Â 38.75Overall height (mm):Â 984Overall length (cm):Â 66Overall length (in):Â 26Overall length (mm):Â 660Overall width (cm):Â 57.2Overall width (in):Â 22.5Overall width (mm):Â 572Power rating (hp):Â 2.0Power rating (kw):Â 1.49Power rating (w):Â 1491.4Power source:Â ElectricPressure control type:Â SmartControl 4.0Pump mount type:Â ProConnect 2Pump rod type:Â MaxLifePump sleeve material:Â MaxLifePump type:Â Endurance VortexRecommended annual usage:Â 100-200 gallons per weekType:Â Airless SprayerVoltage (v):Â 120Volume per cycle (cycles/gal):Â 226Weight (kg):Â 43Weight (lb):Â 94Wetted Material:Â Acetal;Aluminum;Brass;Leather;Nylon;PEEK;PTFE;Stainless Steel;Tungsten Carbide;UHMWPE;Zinc-Plated Carbon Steel;Nickel-Plated Carbon Steel
SunSource Distribution Division: SunSource
Price:Â Requires Quote
