17E846Â GRACOÂ |Â SPRAYER, 395, ULTRA, PC, HIBOY
Manufacturer:Â GRACO
Manufacturer Model #:Â 17E846

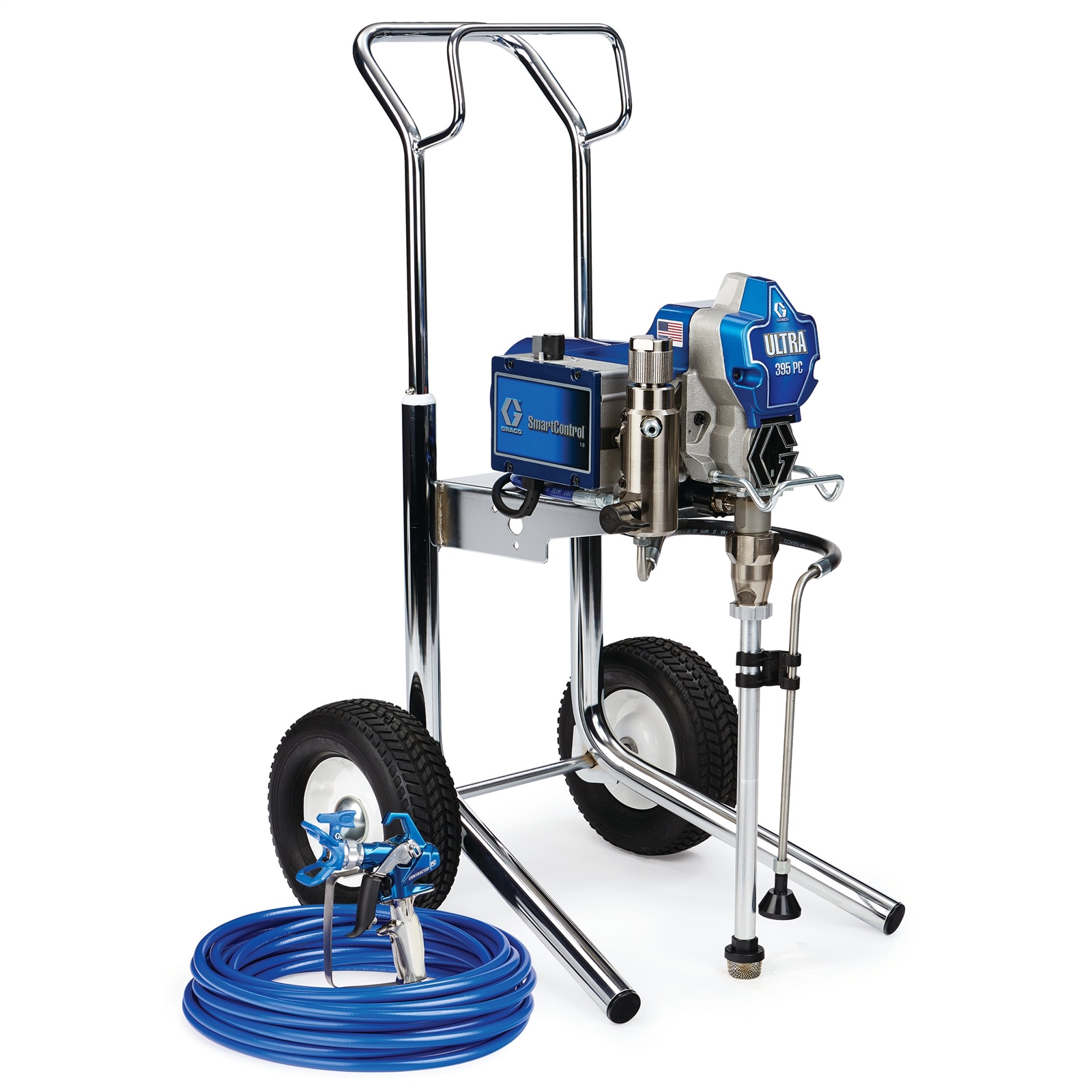

GRACO 17E846 ULTRA 395 PC ELECTRIC AIRLESS SPRAYER, HI-BOY
- Amperage (a): 15Application text: Small Size. Large Capability. Built with the same quality as GracoÂ’s Large Electric sprayers, Graco Small Electric airless sprayers deliver exceptional power and performance.Compatible material: Lacquer;Stains;Interior Latex;Exterior Latex;Enamel;AcrylicsDimension uom code: INDivision code: CEDEngine size (hp): 7/8Engine size (kw): 0.65Features: Endurance Chromex Pump;SmartControl 1.0;TEFC DC;Advantage Drive;ProConnect;Easy Out Filter;Contractor PC GunFilter mesh size: 60Fluid outlet size (cm): 0.635Fluid outlet size (in): 1/4Fluid outlet size (mm): 6.35Fluid outlet thread type: NPSMFrame configuration: Hi-BoyFrequency (hz): 50/60Hose inlet diameter (cm): 0.635Hose inlet diameter (in): 1/4Hose inlet diameter (mm): 6.35Includes: Contractor PC Gun;RAC X LTX 517 Spray Tip;RAC X Guard;1/4 in x 50 ft BlueMax II Airless Hose;TSL 4 ozMaximum flow rate (gpm): 0.54Maximum flow rate (l/min): 2.0Maximum sound pressure level (db(a)): 90Maximum tip size (cm): 0.0584Maximum tip size (in): 0.023Maximum tip size (mm): 0.5842Maximum tip size gun 1 (cm): 0.0584Maximum tip size gun 1 (in): 0.023Maximum tip size gun 1 (mm): 0.5842Maximum working pressure (bar): 228Maximum working pressure (kpa): 22800Maximum working pressure (mpa): 22.8Maximum working pressure (psi): 3300Minimum generator power (w): 3000Motor type: TEFC DCNumber of guns: 1Overall height (cm): 97.2Overall height (in): 38.25Overall height (mm): 972Overall length (cm): 59.1Overall length (in): 23.25Overall length (mm): 591Overall width (cm): 52.1Overall width (in): 20.5Overall width (mm): 521Phase: 1Power rating (hp): 7/8Power rating (kw): 0.65Power rating (w): 652.5Power source: ElectricPressure control type: SmartControl 1.0Pump mount type: ProConnectPump type: EnduranceRecommended annual usage: Up to 50 gallons per weekSplit 4: HIBOYType: Airless SprayerVoltage (v): 120Volume per cycle (cycles/gal): 700Weight (kg): 30Weight (lb): 66Wetted Material: Acetal;Aluminum;Fluoroelastomer;Leather;Nylon;PTFE;Polyethylene;Stainless Steel;Tungsten Carbide;UHMWPE;Urethane;Zinc-Plated Carbon Steel;Nickel-Plated Carbon Steel
SunSource Distribution Division: SunSource
Price:Â
Requires Quote
If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
Submit request for pricing on RFQ products.
Our sales team will be in touch to provide you a quote.
