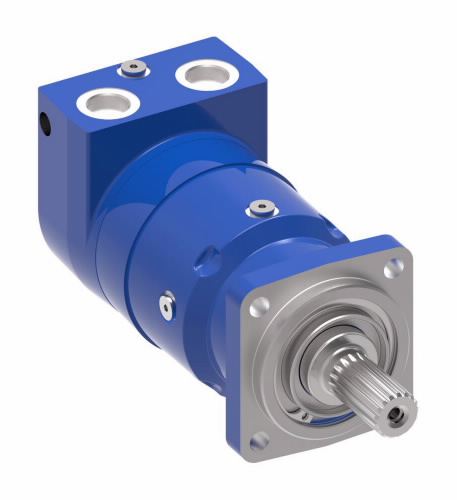

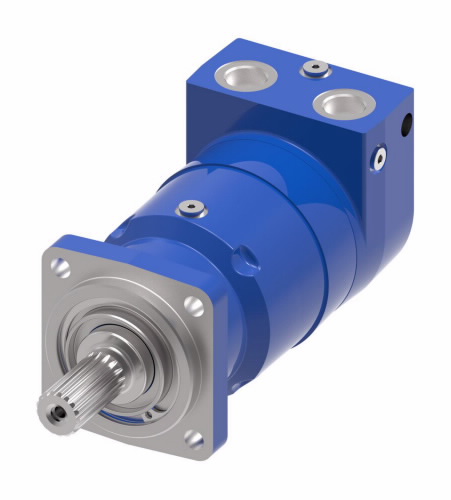

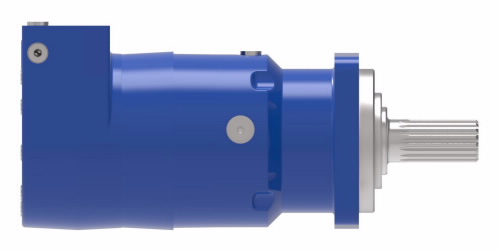

190-0094-002Â DANFOSSÂ |Â HP30 MOTOR BLK LOWGLOSS
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 190-0094-002
EATON CHAR-LYNN HP30 SERIES HP30 GEROLER
Higher starting torque at low speeds|Low no-load pressure drop|Reduce system cooling costs with less heat
Higher starting torque at low speeds|Low no-load pressure drop|Reduce system cooling costs with less heat
- Application: Harvesters, Augers, Forestry Equipment, Grinders and Mixers, Horizontal/Vertical Drilling, Material Handling, Metal Forming, Sprayers, Skid Steer LoadersCase flow options: Shuttle Valve With .5625-18 UNF-2B SAE O-Ring Case Drain Port In Mounting FlangeDesign code11: 2Displacement: 677.3 cubic centimetre per revolutionEccn: EAR99Flow rate12: 170 litre per minuteGeroler options: NoneIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 283 barLow pressure relief: NoneMaximum speed: 252 revolutions per minuteModel Code: MHP32A41SA02AA01000000500AA00BMounting Type: Standard, 4 Bolt; 127.00 [5.000] Pilot Dia 14.27 [.562] Dia.Holes On 161.92 [6.375] Dia. Bolt Circle.(SAE C)Output shaft type: StraightPaint: Low Gloss BlackPort type: 1.0625-12 UN-2B SAE O-Ring PortsPressure flow option: NoneProduct height: 7.36Product height uom: inchProduct length: 14.28Product length uom: inchProduct material: Cast IronProduct trade name: HP30 SeriesProduct weight: 89Product weight uom: poundProduct width: 6.26Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: NoneShaft options: NoneSpecial assembly instructions: NoneSpecial features hardware: Balance plate, internally drained spring chamberSpeed sensor: NoSub brand: Char-LynnTorque: 2469 newton metreValve options: NoneViscosity recommendation: 70 Saybold universal second
SunSource Distribution Division: SunSource
