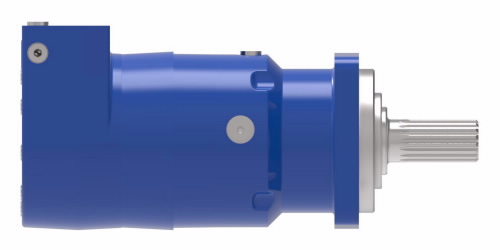

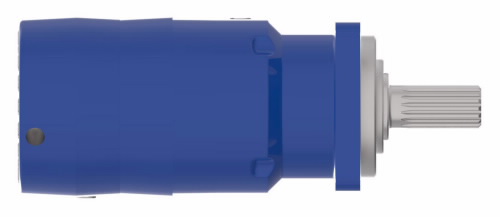

190-0174-002Â DANFOSSÂ |Â HP30 MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 190-0174-002
EATON CHAR-LYNN HP30 SERIES HP30 GEROLER
Higher starting torque at low speeds|Low no-load pressure drop|Reduce system cooling costs with less heat
Higher starting torque at low speeds|Low no-load pressure drop|Reduce system cooling costs with less heat
- Application: Harvesters, Augers, Forestry Equipment, Grinders and Mixers, Horizontal/Vertical Drilling, Material Handling, Metal Forming, Sprayers, Skid Steer LoadersCase flow options: Check Valve With Orifice Plug, G 1/4 BSP Straight Thread Case Drain Port In Valve HousingDesign code11: 2Displacement: 479.5 cubic centimetre per revolutionEccn: EAR99Flow rate12: 170 litre per minuteGeroler options: NoneIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 345 barLow pressure relief: NoneMaximum speed: 355 revolutions per minuteModel Code: MHP32A29SA01AE040000005000000BMounting Type: Standard, 4 Bolt; 127.00 [5.000] Pilot Dia 14.27 [.562] Dia.Holes On 161.92 [6.375] Dia. Bolt Circle.(SAE C)Output shaft type: SplinePaint: NonePort type: G 1 BSP Straight Thread PortsPressure flow option: NoneProduct height: 7.36Product height uom: inchProduct length: 13.56Product length uom: inchProduct material: Cast IronProduct trade name: HP30 SeriesProduct weight: 84.70Product weight uom: poundProduct width: 6.26Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: NoneShaft options: NoneSpecial assembly instructions: NoneSpecial features hardware: Balance plate, internally drained spring chamberSpeed sensor: NoSub brand: Char-LynnTorque: 2252 newton metreValve options: NoneViscosity recommendation: 70 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
