Images are representative only. Please verify with our technical experts as actual product may differ.

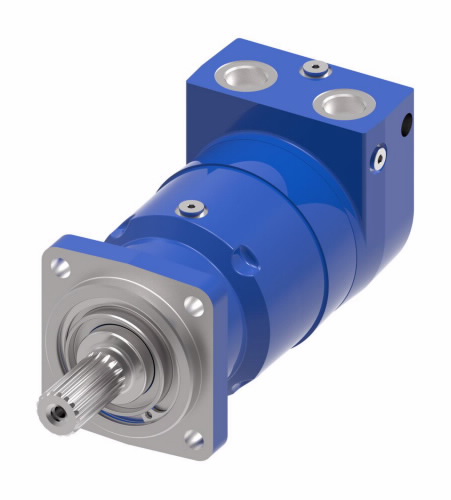

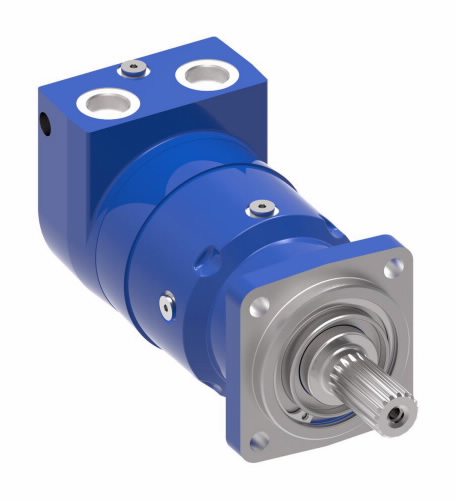

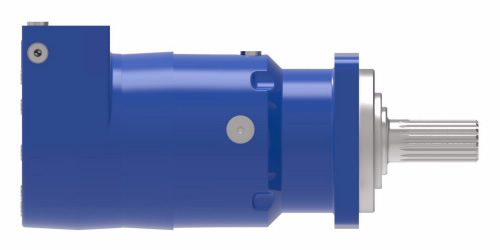

190-0186-003Â DANFOSSÂ |Â HP30 MOTOR/2 SPEED
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 190-0186-003
EATON CHAR-LYNN HP30 SERIES HP30 GEROLER
Higher starting torque at low speeds|Low no-load pressure drop|Reduce system cooling costs with less heat
Higher starting torque at low speeds|Low no-load pressure drop|Reduce system cooling costs with less heat
- Application: Harvesters, Material Handling, Metal FormingBrake type: NoneCase flow options: Shuttle Valve With G 1/4 BSP Straight Thread Case Drain Port In Mounting Flange In Line With Main PortsDesign code11: 1Displacement: 479.5 cubic centimetre per revolutionEccn: EAR99Flow rate12: 170 litre per minuteGeroler options: NoneIcc2: Low-Speed Gerotor/GerolerIdentification: Fluitronics Hydraulic System On Name PlateIntermittent pressure: 345 barLow pressure relief: NoneMaximum speed: 355 revolutions per minuteModel Code: MHP32A29SA14AE050000000000007CMounting Type: Standard 4 Bolt; 127.00 [5.000] Pilot Dia. with 12.2 [.48] Pilot length and 14.32 [.564] DIA. holes on 161.92 [6.375] Dia. Bolt circle (SAE CC),Output shaft type: SplinePaint: NonePort type: G 1 BSP Straight Thread PortsPressure flow option: NoneProduct height: 7.36Product height uom: inchProduct length: 13.34Product length uom: inchProduct material: Cast IronProduct trade name: HP30 SeriesProduct weight: 84.7Product weight uom: poundProduct width: 6.26Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: NoneShaft options: NoneSpecial assembly instructions: NoneSpecial features hardware: NoneSpeed sensor: NoSub brand: Char-LynnTorque: 2252 newton metreValve options: NoneViscosity recommendation: 70 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
