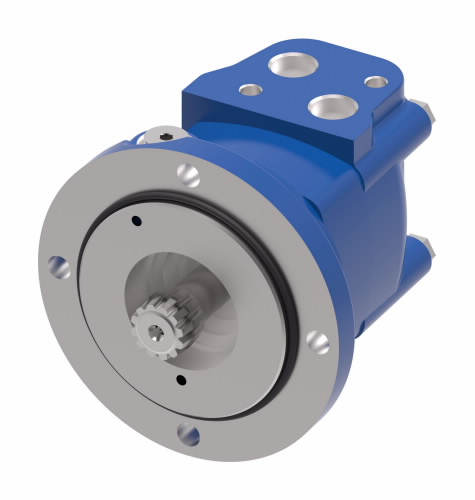

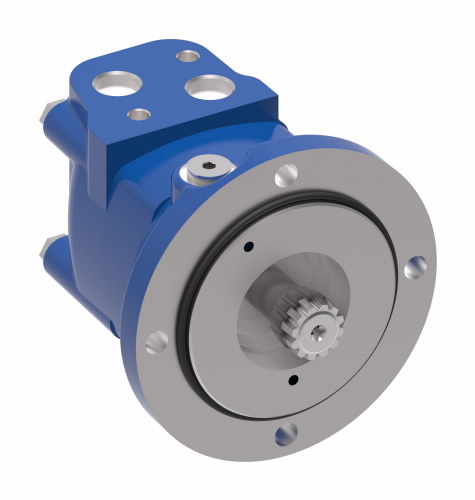

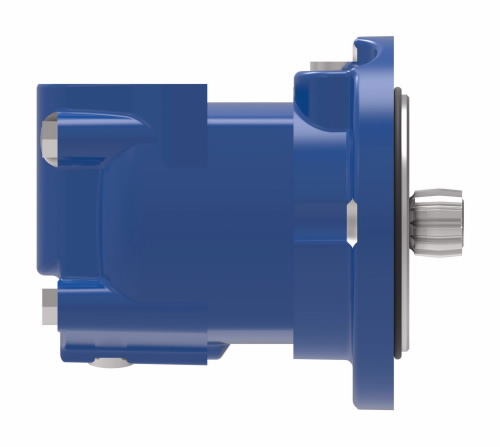

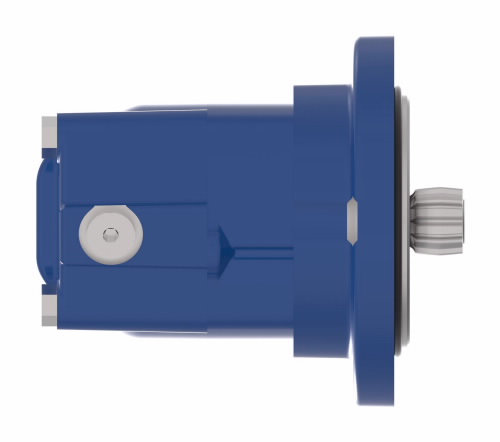

193-0098-001Â DANFOSSÂ |Â 2000 2-SPEED SERIES HYDRAULIC MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 193-0098-001
EATON CHAR-LYNN 2000 SERIES DISC GEROLER
Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
- Application: Skid Steer Attachments, Brush Cutters & MowersBrake type: HydraulicCase flow options: .5625-18 UNF-2B SAE O-Ring Case Drain Port, .4375-20 UNF-2B SAE O-Ring Pilot Control Port, Optional .4375-20 UNF-2B SAE Case Drain Port For Pilot Operated Normally Low SpeedDesign code11: 1Displacement: 244.3 cubic centimetre per revolutionEccn: EAR99Flow rate12: 75 litre per minuteGeroler options: StandardIcc2: Low-Speed Gerotor/GerolerIdentification: NoneIntermittent pressure: 260 barLow pressure relief: NoneMaximum speed: 280 revolutions per minuteModel Code: M22149AC02AA01000100000ABAAAAAMounting Type: Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A)Output shaft type: StraightPaint: NonePort type: .875-14 UNF-2B SAE O-Ring Ports - Staggered PortsPressure flow option: NoneProduct height: 5.39Product height uom: inchProduct length: 11.43Product length uom: inchProduct material: Cast IronProduct trade name: 2000 SeriesProduct weight: 34Product weight uom: poundProduct width: 4.8Product width uom: inchRecommended system working temperature: -34°C to 82°CSeal options: StandardShaft options: NoneSpecial assembly instructions: Reverse RotationSpecial features hardware: NoneSpeed sensor: NoSub brand: Char-LynnTorque: 660 newton metreValve options: NoneViscosity recommendation: 70 Saybold universal second
SunSource Distribution Division: SunSource
Price:Â Requires Quote
