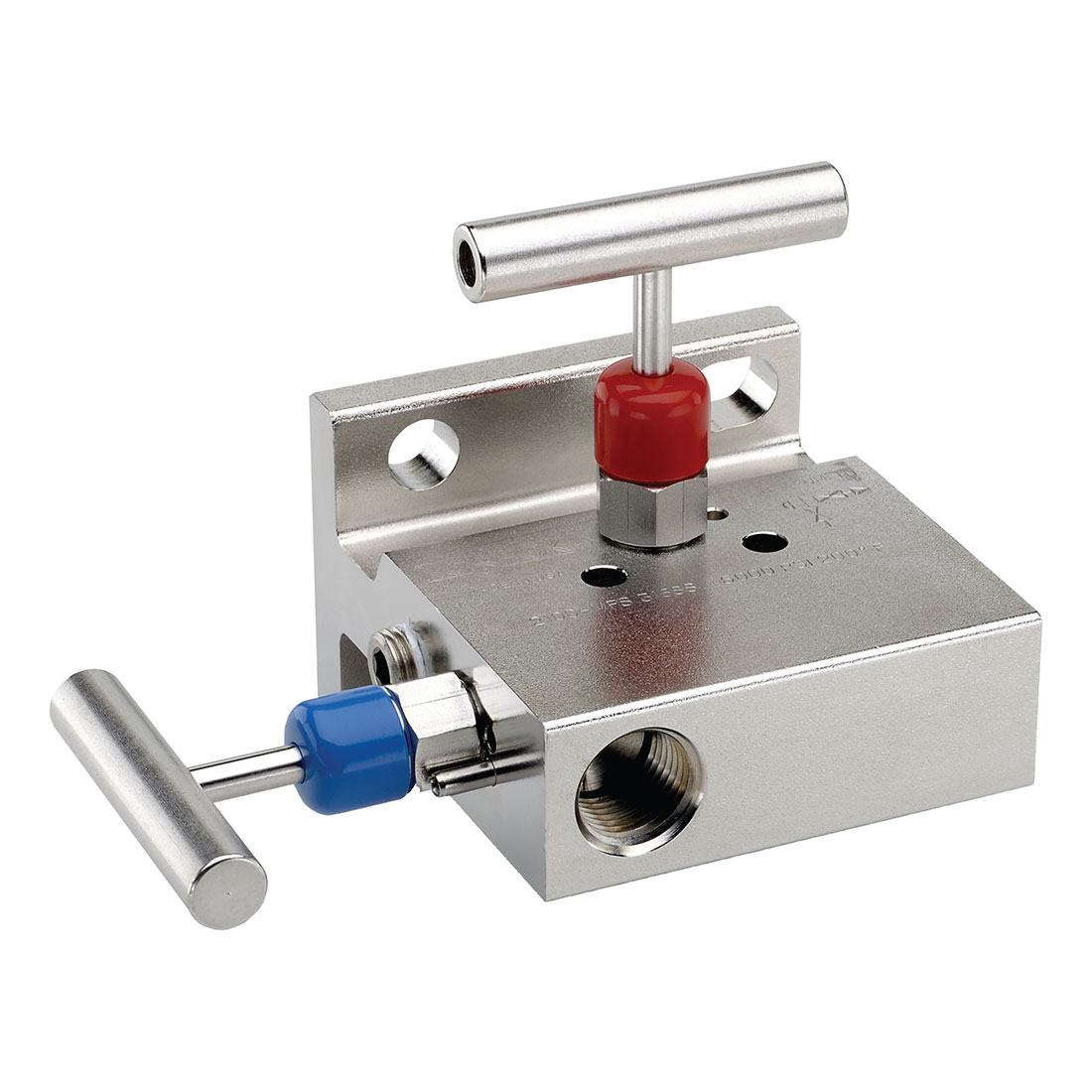

2000-FFS-P2-T6Â NOSHOKÂ |Â 2000 Series 10,000 psi Rating Static Pressure Block and Bleed 2 Manifold Valve with Hard Seat
Manufacturer:Â NOSHOK
Manufacturer Model #:Â 2000-FFS-P2-T6

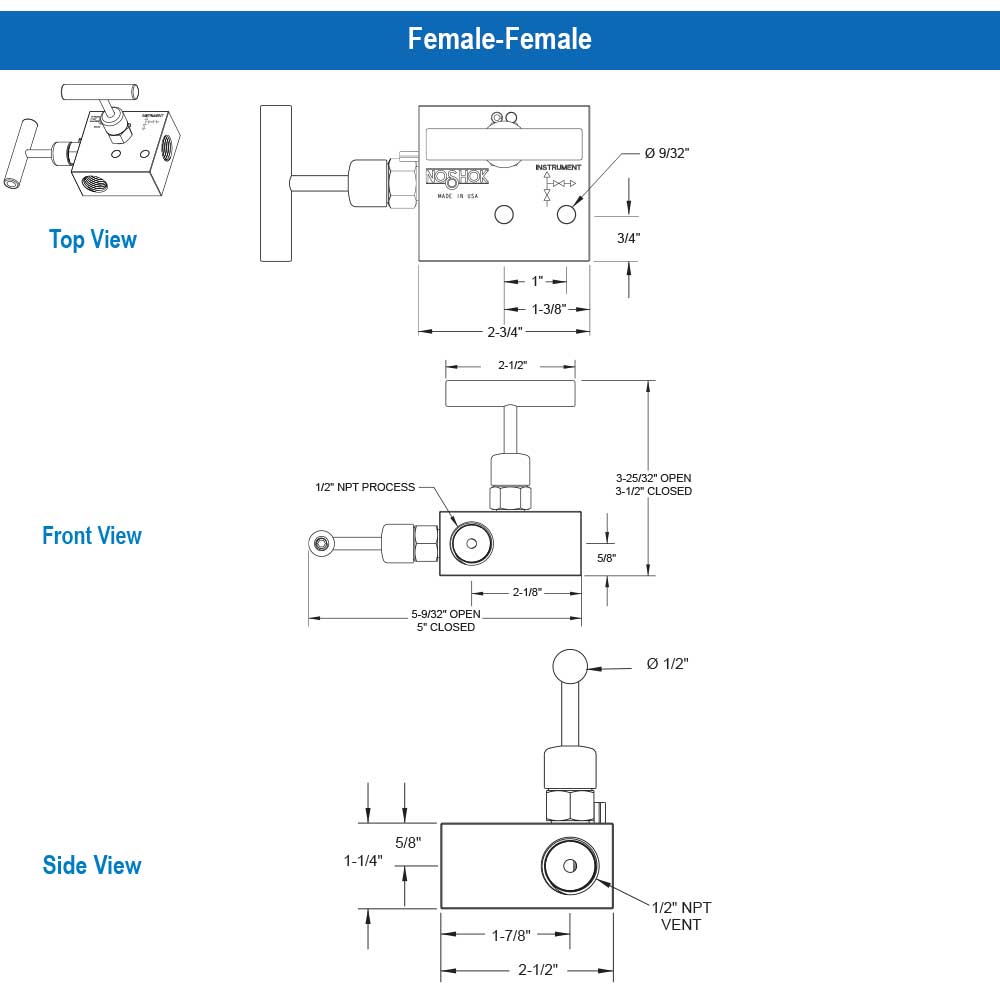

2-Valve Manifold, Hard Seat, 1/2 NPT Female x 1/2 NPT Female, 316 SS, 0.187" Orifice, Grafoil Packing, Carbide Ball Tip
- Body Material:Â Zinc-nickel plated steel, electropolished 316 Stainless SteelCategory:Â 2000/2100 Series Static Pressure Block and Bleed 2 Manifold Valves with Hard and Soft SeatConnection Size:Â 1/2Connection Type:Â National Pipe Thread (NPT) Standard or FlangeConnectors:Â NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.Flow Coefficient Cv:Â 0.44Installed Options and Accessories:Â PackingPTFE Manifold Gasket Ring (RG1-TF1)Graphite Manifold Gasket (RG1-GF1) Traditional to Coplanar Flange Adapter (TCA-S)Note:Â All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.Options:Â Panel mountings, o-ring materials, handles, packings, regulating stem and stem tipsOrifice Size:Â 0.187Packings:Â GraphitePressure Rating at 200 Degree Fahrenheit (F) Temperature:Â 10,000Process Type:Â Static PressureRelated Items:Â MK4-CS, 5 Valve Steel Mounting Kit|MK4-SS2, 5 Valve 304 Stainless Steel Mounting KitSchemaID:Â 106318Seat:Â Hard SeatSeries:Â 2-ValveStem Seal and Type:Â All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optionalStem Tips:Â Ball (Carbide) - For 2000 Series only.Syndication:Â 1Type:Â Manifold ValveUnit:Â 1Valve Material:Â Stainless SteelValve Type:Â Female-Female
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
