200002-MMS NOSHOK | 200002-MMS
Manufacturer: NOSHOK
Manufacturer Model #: 200002-MMS
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation

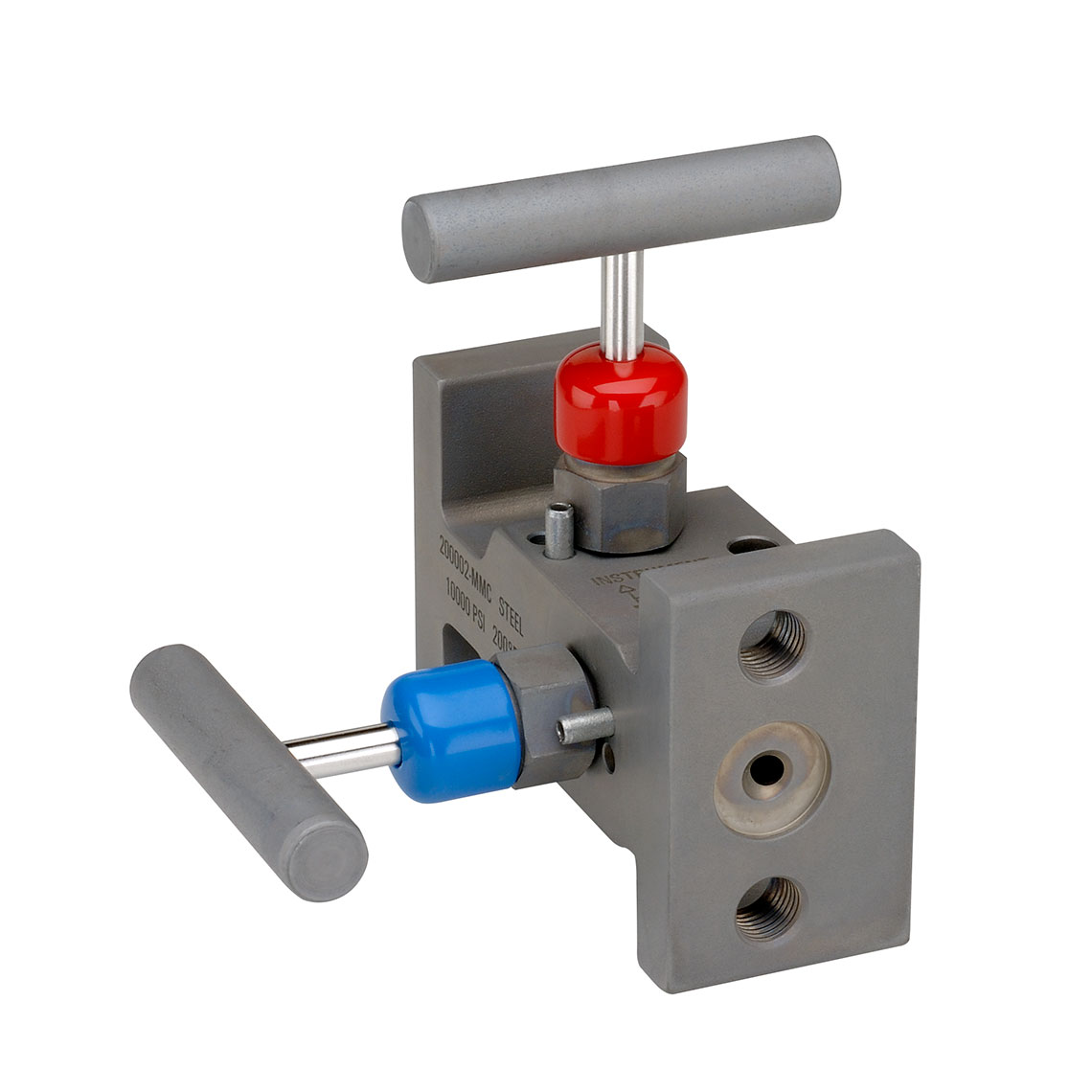

- Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right

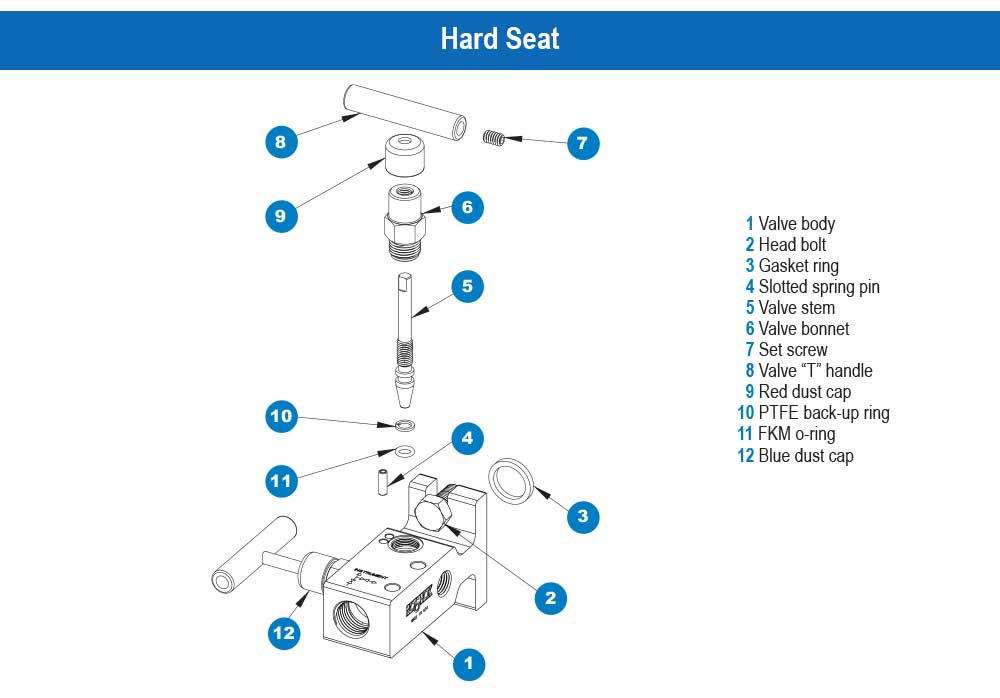

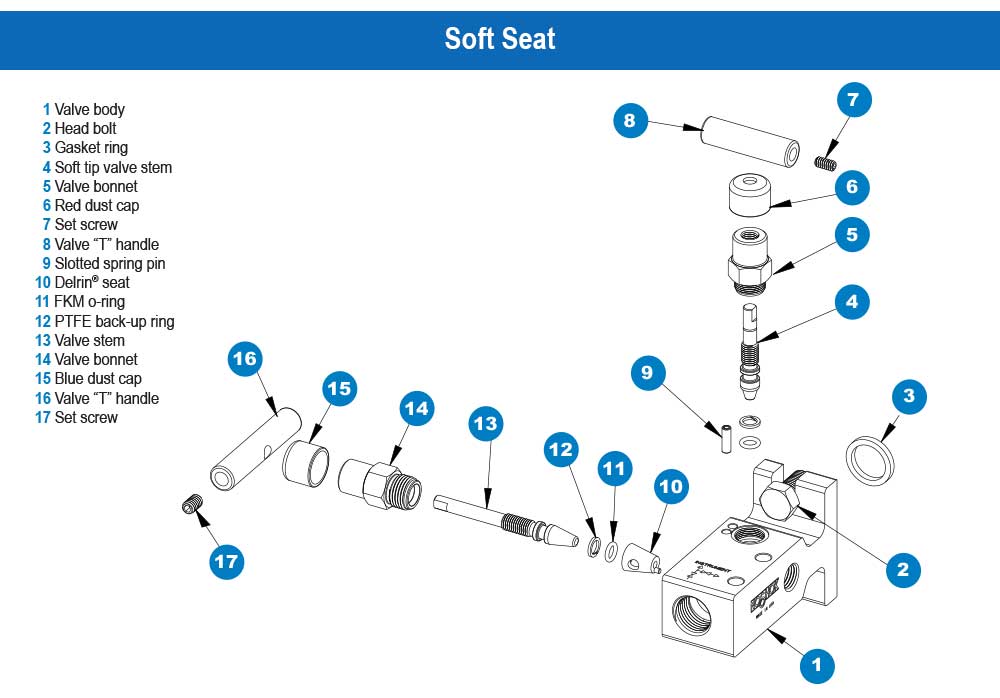

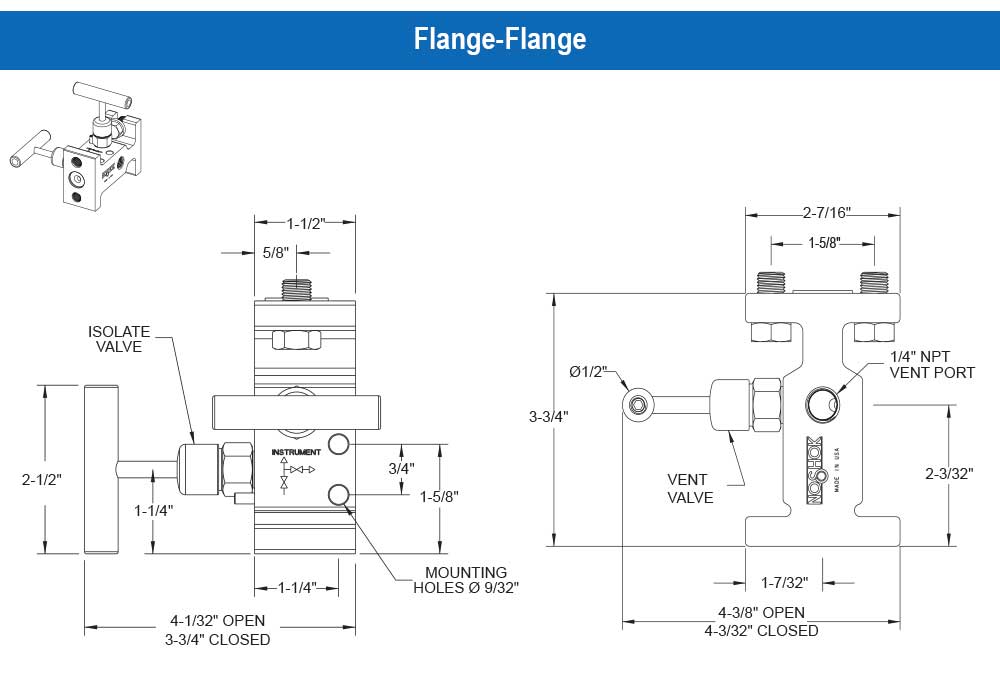

- Body Material: Zinc-nickel plated steel, electropolished 316 Stainless SteelCategory: 200002 Series Narrow Block and Bleed 2 Manifold Valves with Hard and Soft SeatConnection Type: Flange-FlangeConnectors: NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.Flow Coefficient Cv: 0.44Installed Options and Accessories: PackingPTFE Manifold Gasket Ring (RG1-TF1)Graphite Manifold Gasket (RG1-GF1) Traditional to Coplanar Flange Adapter (TCA-S)Options: Panel mountings, o-ring materials, handles, packings, regulating stem and stem tipsOrifice Size: 0.187Pressure Rating at 200 Degree Fahrenheit (F) Temperature: 10,000Process Type: Static PressureRelated Items: MK3-SS2, 5 Valve 304 Stainless Steel Mounting Kit|SZS4, SZ Series Stainless Steel Stabilized Connector / Stabilized ConnectorSchemaID: 106318Seat: Hard SeatSeries: 2-ValveStem Seal and Type: All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and type Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optionalSyndication_SET: 1Type: Manifold ValveUnit_SET: 1Valve Material: Stainless SteelValve Type: Flange-FlangeVent Size: 1/4Vent Type: National Pipe Thread (NPT)
SunSource Distribution Division: SunSource
$
