24Y614Â GRACOÂ |Â PUMP,1040FG-ES04BS14SSSPSPPT21
Manufacturer:Â GRACO
Manufacturer Model #:Â 24Y614

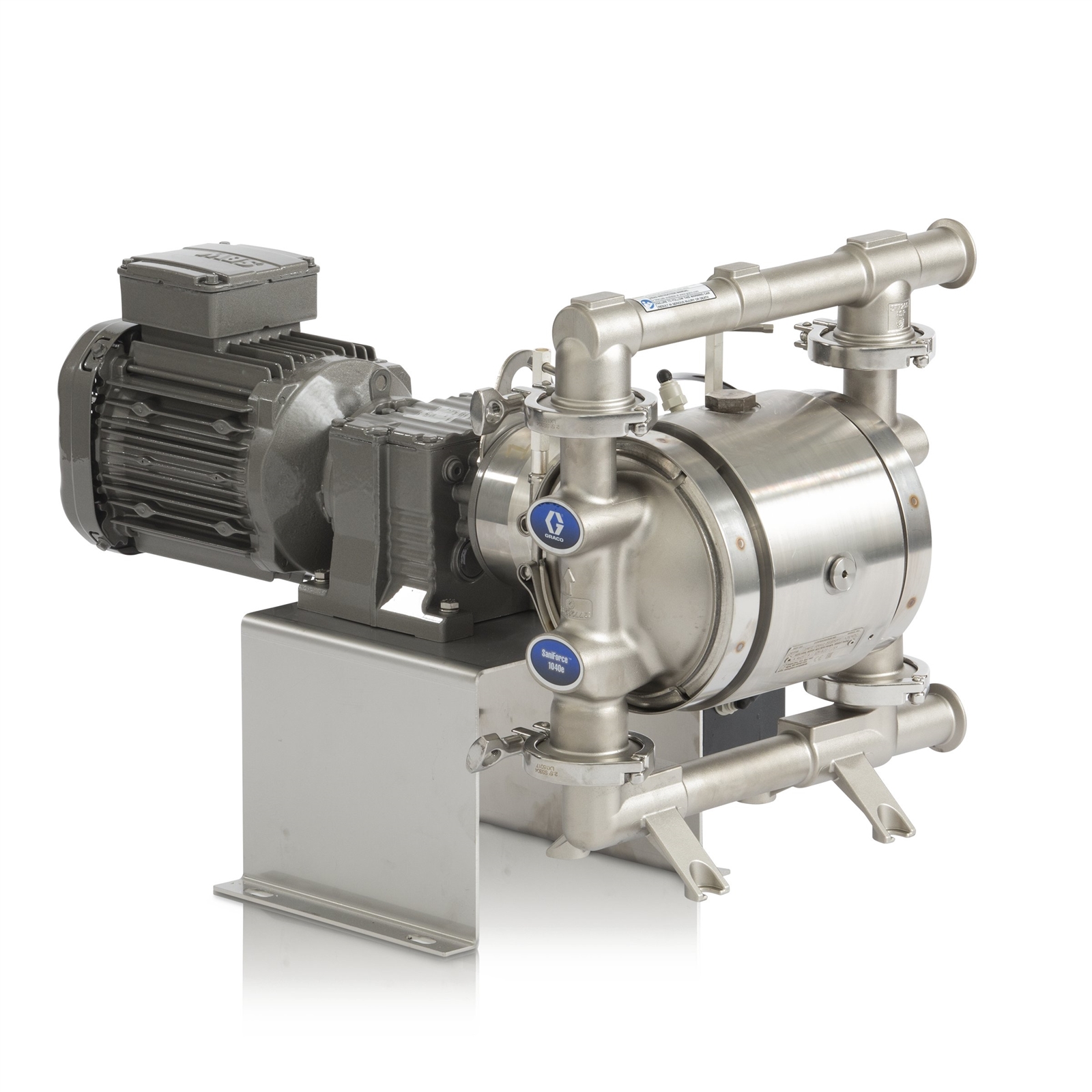

GRACO 24Y614 SANIFORCE 1040E SANITARY S/S EODD PUMP WITH S/S SEATS, PTFE O-RINGS, SANTOPRENE BALLS, SANTOPRENE DIAPHRAGMS & DIN PORTING
- Air inlet size (in): 3/8Air inlet thread gender: FemaleAir inlet thread type: NPTApplication: SanitaryApplication text: 1 inch (25.4 mm) air-operated double diaphragm sanitary pump with flow rates up to 40 gpm (151 lpm) - ideal for food-related applicationsBall material: SantopreneCenter section material: Stainless SteelCompatible material: Food;Personal CareConnection Type: DINDiaphragm compatible material: SantopreneDiaphragm Material: SantopreneDimension uom code: INDivision code: PROFluid inlet size (cm): 3.81Fluid inlet size (in): 1-1/2Fluid inlet size (mm): 38.1Fluid outlet size (cm): 3.81Fluid outlet size (in): 1-1/2Fluid outlet size (mm): 38.1Fluid section material: Stainless SteelManifold configuration: End PortManifold o-ring material: PTFEMaterial: Stainless SteelMaximum air pressure (bar): 5.5Maximum air pressure (kpa): 550Maximum air pressure (mpa): 0.55Maximum air pressure (psi): 80Maximum cycle rate (cpm): 280Maximum flow rate (gpm): 35Maximum flow rate (l/min): 132Maximum fluid pressure (bar): 4.8Maximum fluid pressure (kpa): 480Maximum fluid pressure (mpa): 0.48Maximum fluid pressure (psi): 70Maximum motor speed (rpm): 3600Maximum operating temperature (°c): 40Maximum operating temperature (°f): 104Maximum solid size (cm): 0.3175Maximum solid size (in): 0.125Maximum solid size (mm): 3.175Maximum storage temperature (°c): 40Maximum storage temperature (°f): 104Minimum operating temperature (°c): 0Minimum operating temperature (°f): 32Minimum storage temperature (°c): 0Minimum storage temperature (°f): 32Motor type: Brushless DCPower rating (hp): 2.2Power source: ElectricSeat Material: Stainless SteelType: Electric Diaphragm PumpVoltage (v ac): 320
SunSource Distribution Division: SunSource
Price:Â Requires Quote
