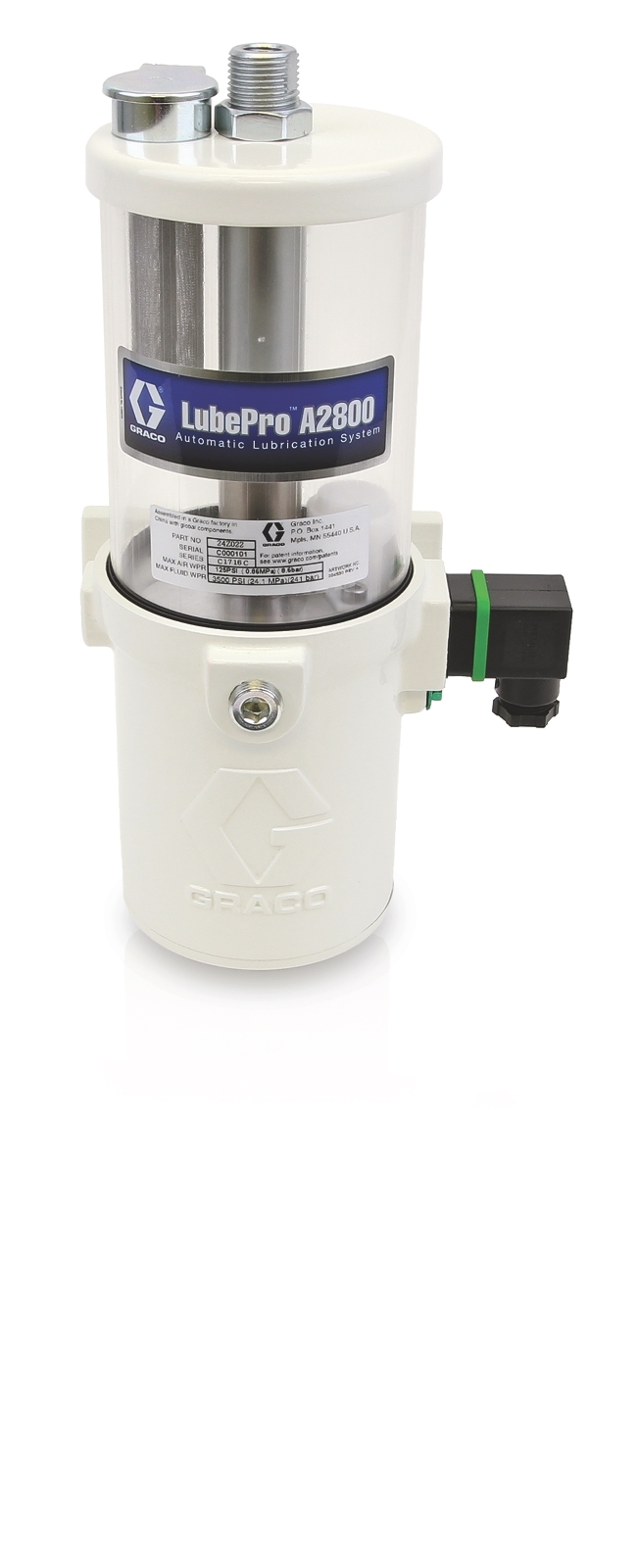

24Z022 GRACO | PUMP, A2800, OIL, 0.6L, N.C, LL
Manufacturer: GRACO
Manufacturer Model #: 24Z022
GRACO 24Z022 LUBEPRO™ A2800 VERTICAL OIL PUMPS, 0.6 LITER RESERVOIR, NORMALLY CLOSED, LOW LEVEL - NPT
- Air inlet size (cm): 0.635Air inlet size (in): 1/4Air inlet size (mm): 6.35Air inlet thread gender: FemaleAir inlet thread type: NPTApplication: In-Plant MachineryApplication text: Single Stroke Oil Pump for Automatic LubricationCompatible material: OilCompatible metering device: Series Progressive;Single Line ParallelDimension uom code: INDivision code: LEDFluid outlet size (cm): 0.6350Fluid outlet size (in): 0.25Fluid outlet size (mm): 6.3500Fluid outlet thread type: NPTIncludes: Low LevelMaximum air inlet pressure (bar): 12.07Maximum air inlet pressure (kpa): 1207Maximum air inlet pressure (psi): 175Maximum working pressure (bar): 241Maximum working pressure (kpa): 24100Maximum working pressure (mpa): 24.1Maximum working pressure (psi): 3500Minimum cst grade (cst): 40Overall depth (cm): 13Overall depth (in): 5.1Overall depth (mm): 130Overall height (cm): 31.8Overall height (in): 12.53Overall height (mm): 318Overall width (cm): 17.3Overall width (in): 6.8Overall width (mm): 173Power type: PneumaticReservoir size (gal): 0.159Reservoir size (l): 0.6Type: Pneumatic Piston PumpWeight (kg): 4.80Weight (lb): 10.58Wetted Material: Zinc-Plated Steel;Casting Aluminum ZL101;Magnet;Plastic POM;Polycarbonate;Buna-N;PTFE;PEEK
SunSource Distribution Division: SunSource
Price: Requires Quote
