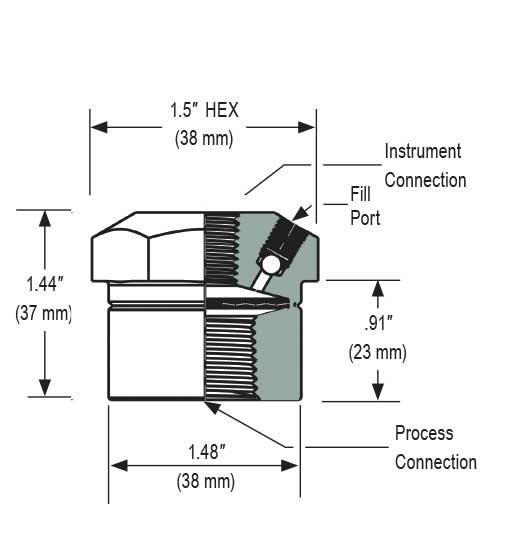

25-02S-S-02SÂ NOSHOKÂ |Â 1/4 in. Process Connection Size Type 25 Standard and Elevated Pressure, Non-Replaceable Diaphragm Seal
Manufacturer:Â NOSHOK
Manufacturer Model #:Â 25-02S-S-02S
- Designed to isolate the pressure measuring instrument from corrosive or viscous process media
- Utilize an all welded, all metallic housing design to eliminate potential leak paths
- For use with gauges with dial sizes of 2-1/2" and smaller, and pressure ranges no less than 100 psig
- Housing and diaphragm offered in a variety of materials to suit most applications
- A flushing port is available to clean wetted areas and prevent process media build up
- Application:Â Water and wastewaterOil and gasPetrochemicalChemical processingIndustrial automationMarineAgricultureSteel fabricationMud pumpingPulp and paperPneumaticCategory:Â Type 25/25H Standard and Elevated Pressure, Non-Replaceable Diaphragm SealsConnection Type:Â National Pipe Thread (NPT)Diaphragm Displacement:Â 400Diaphragm Material:Â 316 Stainless SteelDiaphragm Pressure Limits for Fluorocarbon (FKM) Material:Â 2,000Diaphragm Pressure Limits for Polytetrafluoroethylene (PTFE) Material:Â 2,000Diaphragm Seal Fill Options:Â Glycerin (GY) Not recommended for use in vacuum applications.)Silicone (SL)Halocarbon(HL)Neobee M20 (NB)Mineral Oil (MO)Propylene Glycol (PG)Diaphragm Size:Â 1.28Diaphragm Temperature Limits for Fluorocarbon (FKM) Material:Â -10 to 400Diaphragm Temperature Limits for Polytetrafluoroethylene (PTFE) Material:Â -40 to 400Distribution Manifolds:Â NOSHOK`s Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.End Size:Â 1/4End Type:Â National Pipe Thread (NPT)Housing material:Â 316 Stainless SteelInstrument Connection Size:Â 1/4Instrument Gauge Size:Â 2-1/2Instrument Type:Â Gauges, Transducers, SwitchesLower Housing Connection Size:Â 1/4|1/2|3/4|1|1-1/4|1-1/2Lower Housing Connection Type:Â National Pipe Thread (NPT)Lower Housing Flushing Port:Â Optional 1/8" NPT and 1/4" NPTMaximum Pressure Limits for Polypropylene (PP) Bottom Housing Material:Â 200Maximum Pressure Limits for Polyvinyl Chloride (PVC) Bottom Housing Material:Â 80|125|200Maximum Pressure Limits for Polyvinylidene Fluoride (PVDF) Bottom Housing Material:Â 200Maximum Temperature Limits for Polypropylene (PP) Bottom Housing Material:Â 140Maximum Temperature Limits for Polyvinyl Chloride (PVC) Bottom Housing Material:Â 74|125|150Maximum Temperature Limits for Polyvinylidene Fluoride (PVDF) Bottom Housing Material:Â 180Note for Diaphragm Pressure and Temperature Limits:Â Metallic diaphragms determined by pressure range of seal type, restricted to temperature range of fill fluid.Note for Maximum Pressure and Temperature Limits Bottom Housing Material:Â Metallic lower housings determined by pressure range of seal type, restricted to temperature range of fill fluid.O-Ring Temperature Limits for Fluorocarbon (FKM) Material:Â -10 to 400O-Ring Temperature Limits for Nitrile Butadiene Rubber (NBR) Material:Â -40 to 250O-Ring Temperature Limits for Polytetrafluoroethylene (PTFE) Material:Â -400 to 400Pressure [Max] for Gauges 2-1/2 in. Size:Â 0 to 2,500Pressure [Max] for Switches:Â 0 to 2,500Pressure [Max] for Transducers:Â 0 to 2,500Pressure [Min] for Gauges 2-1/2 in. Size:Â 0 to 100Pressure [Min] for Switches:Â 0 to 60Pressure [Min] for Transducers:Â 0 to 60Process Connection Size:Â 1/4SchemaID:Â 106326Seal Type:Â Threaded with welded diaphragmStyle:Â Non-Replaceable Diaphragm SealSyndication:Â 1Type:Â Diaphragm SealUnit:Â 1Upper Housing Type:Â Non-Continuous Duty
SunSource Distribution Division: SunSource
$144.71
