257025Â GRACOÂ |Â SPRAYER, PROJECT PAINTER PLUS
Manufacturer:Â GRACO
Manufacturer Model #:Â 257025

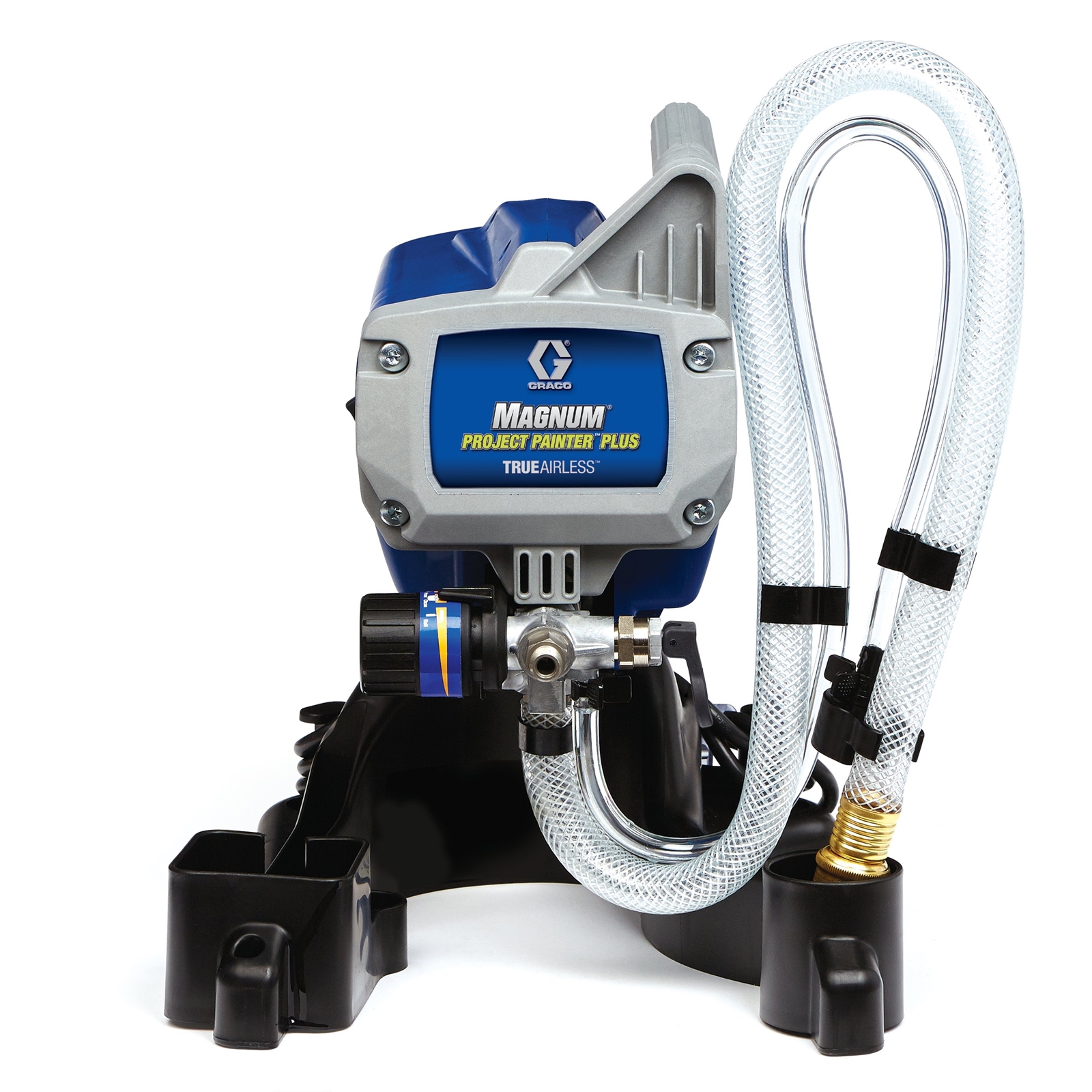

GRACO 257025 MAGNUM PROJECT PAINTER PLUS ELECTRIC TRUEAIRLESS SPRAYER
- Amperage (a):Â 9.0Compatible tip size (in):Â 0.009;0.011;0.013;0.015Dimension uom code:Â INDivision code:Â CEDEngine size (hp):Â 0.375Fluid outlet size (cm):Â 0.635Fluid outlet size (in):Â 1/4Fluid outlet size (mm):Â 6.35Fluid outlet thread type:Â NPSMFrame configuration:Â StandIncludes:Â SG2 Spray Gun;TrueAirless 515 Spray Tip;Spray Tip Guard;1/4 in x 25 ft DuraFlex Hose;Pump Armor Storage Fluid (8 oz);Quick Start-Up GuideInlet paint strainer:Â 35 Mesh Stainless Steel ScreenMaximum flow rate (gpm):Â 0.24Maximum flow rate (l/min):Â 0.91Maximum hose length (ft):Â 50Maximum hose length (m):Â 15Maximum tip size (cm):Â 0.0381Maximum tip size (in):Â 0.015Maximum tip size (mm):Â 0.3810Maximum tip size gun 1 (cm):Â 0.0381Maximum tip size gun 1 (in):Â 0.015Maximum tip size gun 1 (mm):Â 0.3810Maximum working pressure (bar):Â 193Maximum working pressure (kpa):Â 19300Maximum working pressure (mpa):Â 19.3Maximum working pressure (psi):Â 2800Minimum generator power (w):Â 1500Motor type:Â UniversalNumber of guns:Â 1Overall height (cm):Â 35.1Overall height (in):Â 13.8Overall height (mm):Â 351Overall length (cm):Â 35.2Overall length (in):Â 13.8Overall length (mm):Â 352Overall width (cm):Â 30.7Overall width (in):Â 12.1Overall width (mm):Â 307Phase:Â 1Power rating (hp):Â 0.375Power rating (kw):Â 0.28Power rating (w):Â 279.6Power source:Â ElectricPressure control type:Â AdjustablePump rod type:Â Stainless SteelPump sleeve material:Â Stainless SteelPump type:Â PistonRecommended annual usage (gal):Â 50Type:Â Airless SprayerVoltage (v):Â 120Weight (kg):Â 6Weight (lb):Â 13Wetted Material:Â Nylon;Aluminum;Brass;Plated Steel;Leather;UHMWPE;Stainless Steel;Polypropylene;Fluoroelastomer;Tungsten Carbide
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
