25P784 GRACO | PUMP, DYNASTAR, 200:1, 120#
Manufacturer: GRACO
Manufacturer Model #: 25P784

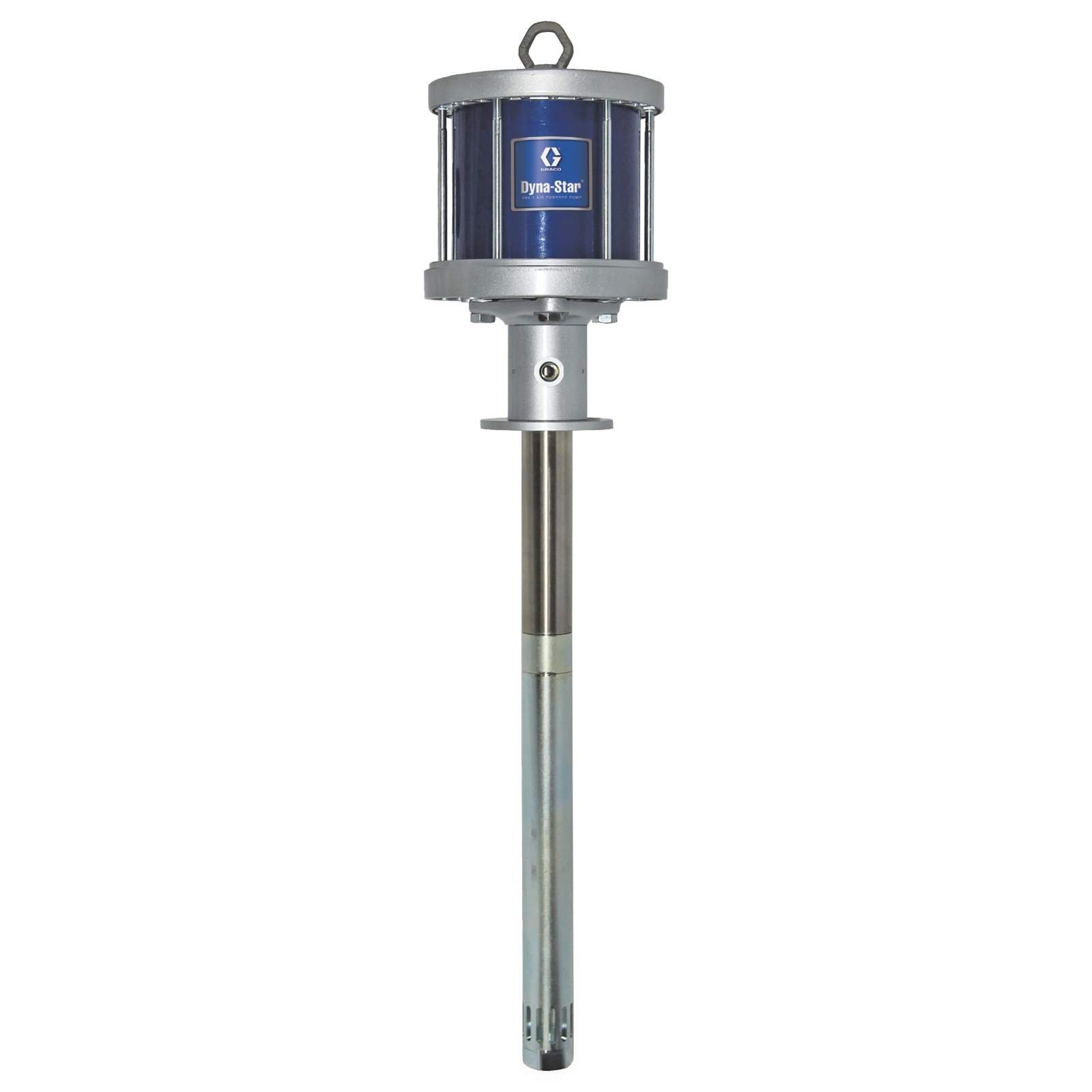

GRACO 25P784 DYNA-STAR® 200:1 AIR-POWERED BARE GREASE PUMP FOR 120 LB (55 KG) KEG
- Air inlet size (in): 0.5Air inlet thread gender: FemaleAir inlet thread type: NPTAir motor effective diameter (in): 7.5Air motor size (in): 7.5Application: In-Plant Machinery;Off-Road EquipmentApplication text: For use in hydraulic fracturing wellhead service and maintenance, well service blow out preventer maintenance and well service valve maintenance.Approvals: CE;ATEX;EACCompatible material: GreaseComponent technology: Air Motor; Shovel-loading pump tubeDimension uom code: INDivision code: LEDFluid outlet size (in): 13/16Fluid outlet thread gender: FemaleFluid outlet thread type: UNCLower type: Integrated Shovel LoadingMaximum air consumption (scfm): 125Maximum air inlet pressure (bar): 6.89Maximum air inlet pressure (kpa): 689Maximum air inlet pressure (mpa): 0.69Maximum air inlet pressure (psi): 100Maximum continuous cycle rate (cpm): 60Maximum cycle rate (cpm): 60Maximum cycle rate (strokes/min): 60Maximum flow rate (ci/min): 103.7Maximum flow rate (gpm): 0.45Maximum flow rate (l/min): 1.7Maximum fluid outlet pressure (bar): 1379Maximum fluid output pressure (bar): 379Maximum fluid output pressure (psi): 20000Maximum intermittent cycle rate (cpm): 60Maximum nlgi grade: 2Maximum operating temperature (°c): 82Maximum operating temperature (°f): 180Maximum working pressure (bar): 1379Maximum working pressure (kpa): 137900Maximum working pressure (mpa): 137.9Maximum working pressure (psi): 20000Minimum air inlet pressure (psi): 40Minimum operating temperature (°c): -30Minimum operating temperature (°f): -30Motor type: PneumaticNumber of outlets: 1Number of pump elements: 1Output per cycle (cm³): 28Overall height (cm): 110.49Overall height (in): 43.5Overall height (mm): 1104.9Power type: PneumaticPump ratio: 200 to 1Sound power level (db(a)): 77.2Sound pressure level (db(a)): 70.5Type: Pneumatic Piston PumpWeight (kg): 31.8Weight (lb): 70Wetted Material: Steel;Stainless Steel;Bronze;UHMWPE;Aluminum
SunSource Distribution Division: SunSource
$
