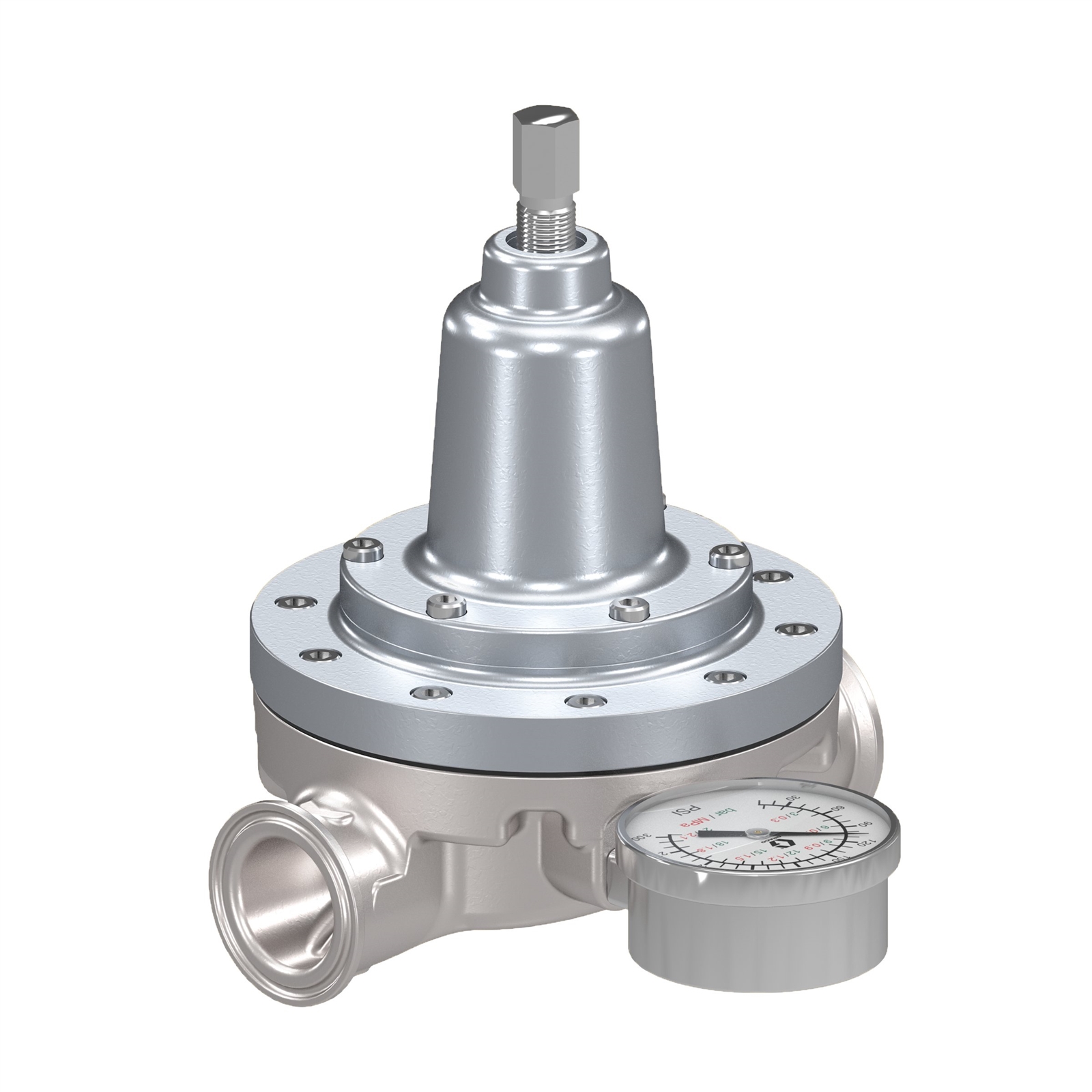

25R647Â GRACOÂ |Â REGULATOR,BP,MECHANICAL,HIGH-FLOW
Manufacturer:Â GRACO
Manufacturer Model #:Â 25R647
- Compatible material: Waterborne;SolventborneDimension uom code: INDivision code: IPDGauge port size (cm): 0.635Gauge port size (in): 1/4Gauge port size (mm): 6.35Gauge port type: NPTInlet size (cm): 3.8Inlet size (in): 1.5Inlet size (mm): 38Inlet thread type: Sanitary FlangeMaximum flow rate (gpm): 25Maximum flow rate (l/min): 95Maximum operating temperature (°c): 50Maximum operating temperature (°f): 122Maximum regulated pressure (bar): 17.6Maximum regulated pressure (kg/cm²): 17.6Maximum regulated pressure (kpa): 1724Maximum regulated pressure (psi): 250Maximum viscosity (cp): 1000Maximum working pressure (bar): 21.1Maximum working pressure (kg/cm²): 21.1Maximum working pressure (kpa): 2068Maximum working pressure (psi): 300Minimum operating temperature (°c): 0Minimum operating temperature (°f): 32Minimum regulated pressure (bar): 1.8Minimum regulated pressure (kg/cm²): 1.8Minimum regulated pressure (kpa): 172Minimum regulated pressure (mpa): 0.17Minimum regulated pressure (psi): 25Outlet size (cm): 3.8Outlet size (in): 1.5Outlet size (mm): 38Outlet thread type: Sanitary FlangeType: Back Pressure RegulatorWetted Material: Stainless Steel;Tungsten Carbide
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
