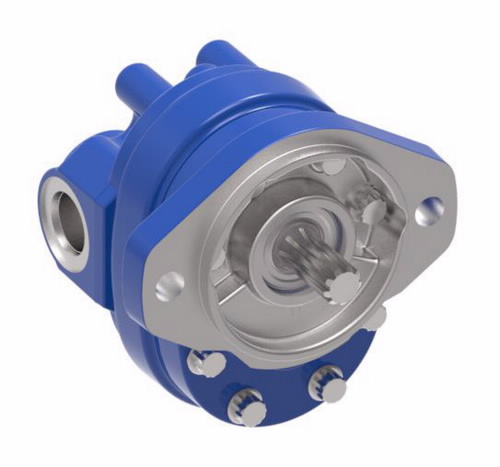

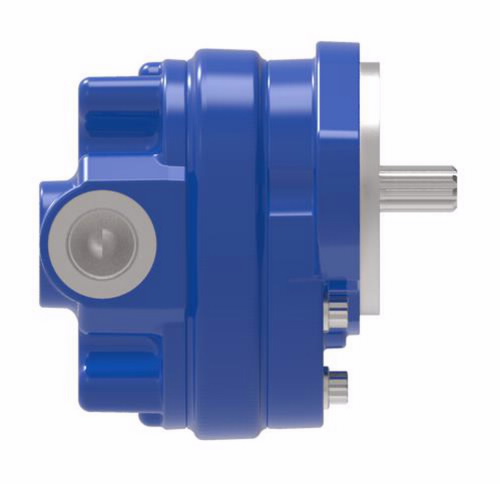

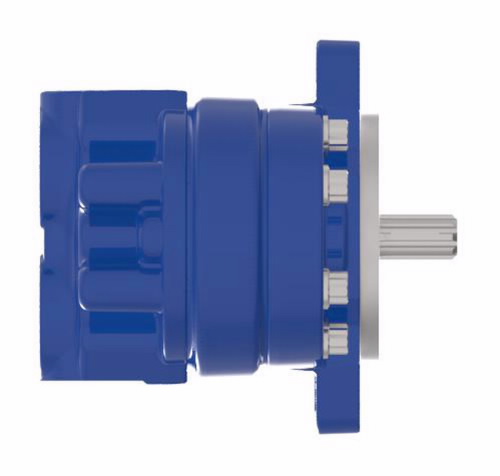

26002-RARÂ DANFOSSÂ |Â GEAR PUMP ASSY
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 26002-RAR
- Application:Â Agricultural, Civil Engineering, Primary metals, Material handling, Speciality Construction, Metal Forming, Natural ResourcesAuxiliary mounting features rear:Â NoneConfiguration:Â SingleContinuous pressure max:Â 3000 psiContinuous working temperature max:Â 220 degree FahrenheitDesign code11:Â ADisplacement:Â 8.2 cubic centimetre per revolutionEccn:Â EAR99Housing material:Â AluminumIcc2:Â Hyd Fixed Dis External Gear PumpIdentification:Â StandardInput shaft:Â DIA 15.88 [.625] TAPER .125,1, .500-20 UNF-2A WITH DIA 3 [.12] THRU HOLE, KEYWAY 4.1 X 17.5 [.16 X .69], SHAFT EXT 45.2 [1.78] (KEY INCLUDED)Intermittent pressure max:Â 3500 psiMinimum continuous oil viscosity:Â 45 Saybold universal secondModel Code:Â ACNAR02BEC00200000ABCA0AMounting features front:Â 2 Bolt B SAE Flange series 101-2Paint:Â Black Per Spec 209-13CaPorts sizes locations backplate single unit:Â Plain, Suction Port 1.3125-12 UN-2B SAE O-Ring Port - Side Port; Pressure Port .875-14 UNF-2B SAE O-Ring Port - Rear PortProduct height:Â 5.16Product height uom:Â inchProduct length:Â 4.99Product length uom:Â inchProduct trade name:Â Series 26Product weight:Â 6.00Product weight uom:Â poundProduct width:Â 5.12Product width uom:Â inchShaft rotation:Â RightSpecial features17:Â Viton Shaft SealSub brand:Â NoneTest data:Â GenericUnit type21:Â PlainWorking temperature min:Â -20 degree Fahrenheit
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
