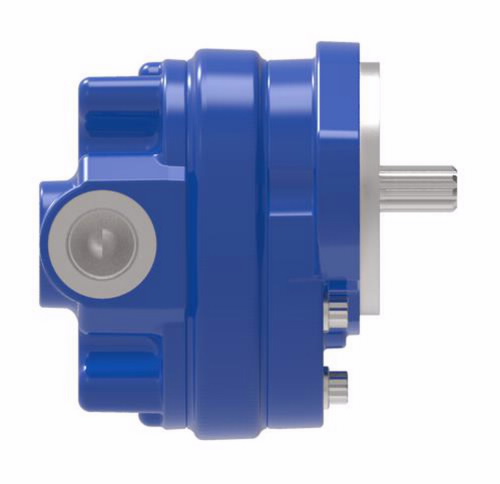

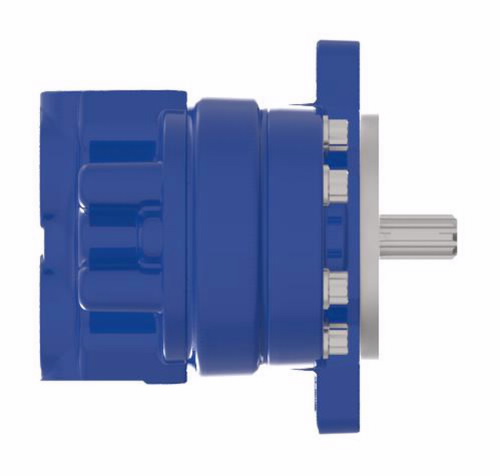

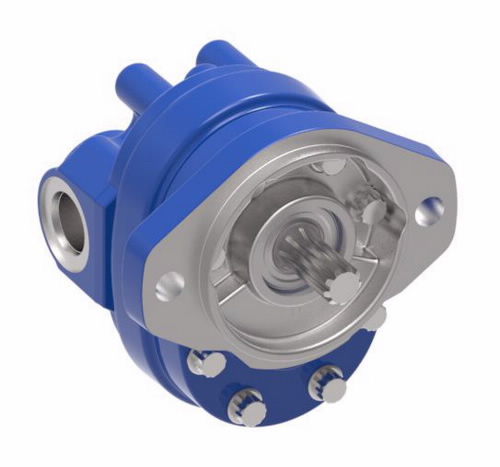

26012-LAEÂ DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 26012-LAE
- Application:Â Agricultural, Civil Engineering, Primary metals, Material handling, Speciality Construction, Metal Forming, Natural ResourcesAuxiliary mounting features rear:Â NoneConfiguration:Â SingleContinuous pressure max:Â 3000 psiContinuous working temperature max:Â 220 degree FahrenheitDesign code11:Â ADisplacement:Â 29 cubic centimetre per revolutionEccn:Â EAR99Housing material:Â AluminumIcc2:Â Hyd Fixed Dis External Gear PumpIdentification:Â StandardInput shaft:Â 9 TOOTH 16/32 SPLINE, MIN FULL SPLINE 19 [.75], SHAFT EXT 28.4 [1.12]Intermittent pressure max:Â 3500 psiMinimum continuous oil viscosity:Â 45 Saybold universal secondModel Code:Â ACNAL12AGA01100000000A0AMounting features front:Â 2 Bolt A SAE Flange series 82-2Paint:Â Primer Per Spec 209-13APorts sizes locations backplate single unit:Â Plain, Suction Port .750-14 Nptf Dryseal American Standard Pipe Thread Port; Pressure Port .500-14 Nptf Dryseal American Standard Pipe Thread Port - Rear PortsPriority flow divider setting:Â NO FLOW SETTINGProduct height:Â 5.16Product height uom:Â inchProduct length:Â 5.94Product length uom:Â inchProduct trade name:Â Series 26Product weight:Â 8.00Product weight uom:Â poundProduct width:Â 5.12Product width uom:Â inchShaft rotation:Â LeftSpecial features17:Â NoneSub brand:Â NoneTest data:Â GenericUnit type21:Â PlainWorking temperature min:Â -20 degree Fahrenheit
SunSource Distribution Division: SunSource
Price:Â Requires Quote
