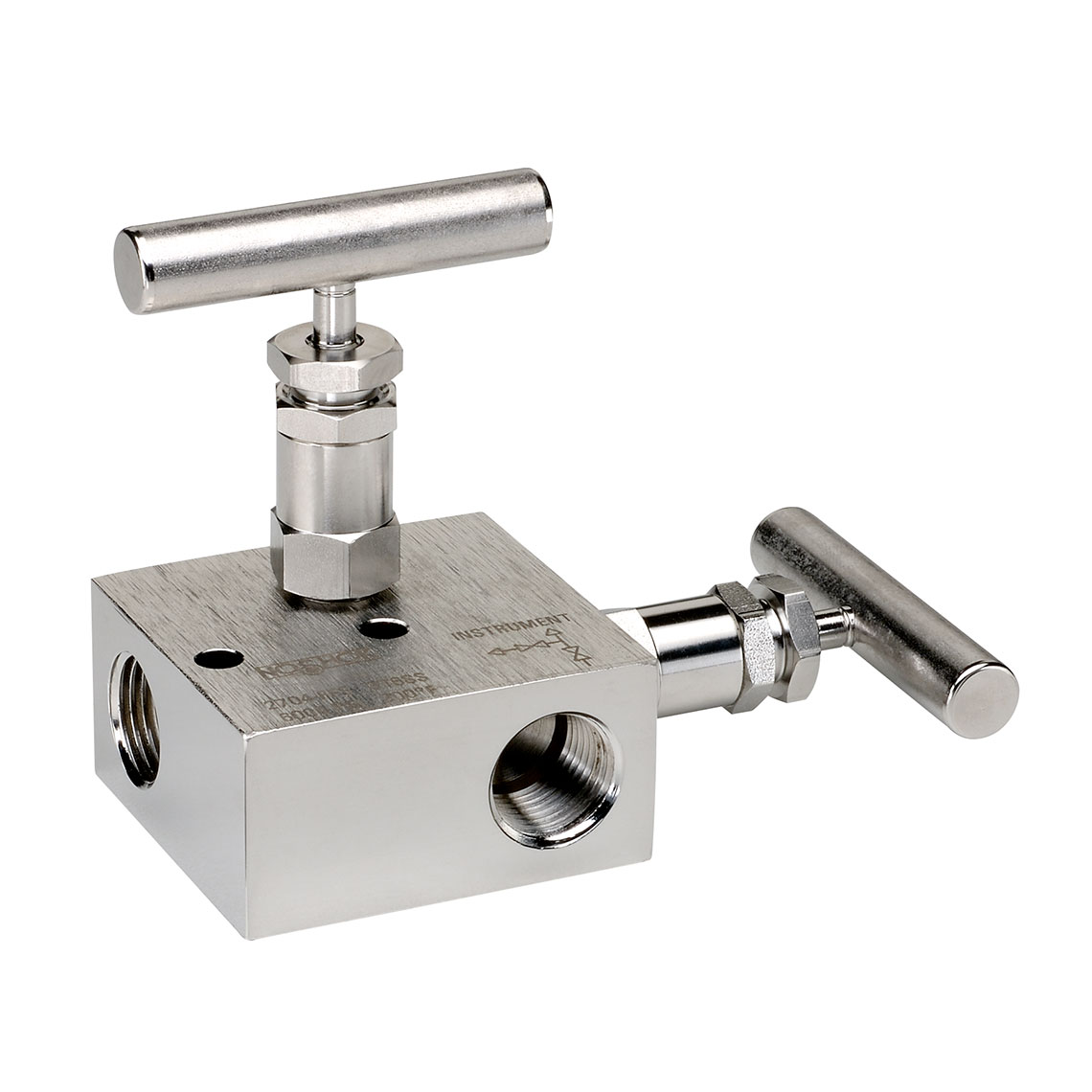

2604-FFCÂ NOSHOKÂ |Â 2604 Series 10,000 psi Pressure Rating 0.156 in. Orifice Block and Bleed 2 Manifold Valve with Hard Seat
Manufacturer:Â NOSHOK
Manufacturer Model #:Â 2604-FFC
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation

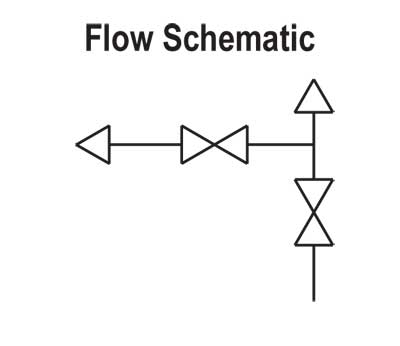

- Block valve is located on the right and the bleed valve is located on top in a 90º orientation, venting is to the left

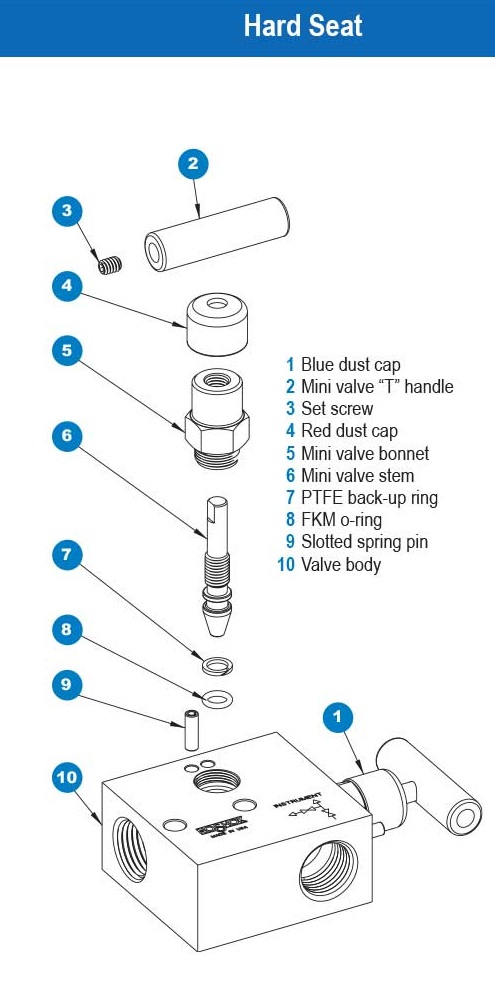

- Body Material:Â Zinc-nickel plated steel, electropolished 316 Stainless SteelCategory:Â 2604/2704 Series 0.156 in. Orifice Block and Bleed 2 Manifold Valves with Hard Seat and Soft TipConnection Size:Â 1/2Connection Type:Â National Pipe Thread (NPT)Connectors:Â NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.Flow Coefficient Cv:Â 0.44Installed Options and Accessories:Â PackingPTFE Manifold Gasket Ring (RG1-TF1)Graphite Manifold Gasket (RG1-GF1) Traditional to Coplanar Flange Adapter (TCA-S)Options:Â Panel mountings, o-ring materials, handles, packings, regulating stem and stem tipsOrifice Size:Â 0.156Pressure Rating at 200 Degree Fahrenheit (F) Temperature:Â 10,000Process Type:Â Static PressureRelated Items:Â MK4-CS, 5 Valve Steel Mounting Kit|MK4-SS2, 5 Valve 304 Stainless Steel Mounting KitSchemaID:Â 106318Seat:Â Hard SeatSeries:Â 2-ValveStem Seal and Type:Â All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optionalSyndication:Â 1Type:Â Manifold ValveUnit:Â 1Valve Material:Â SteelValve Type:Â Female-Female
SunSource Distribution Division: SunSource
$257.93
