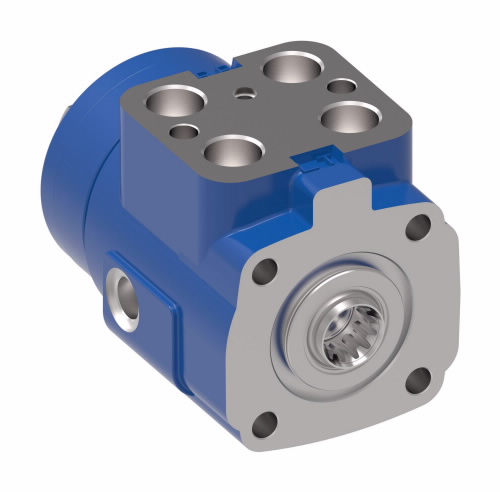

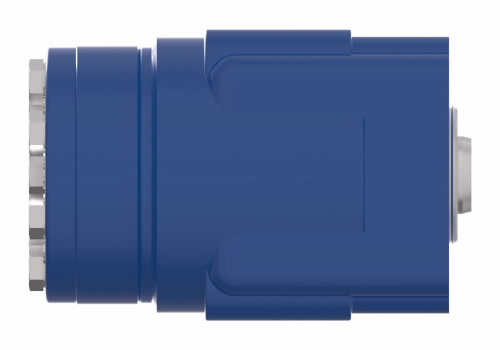

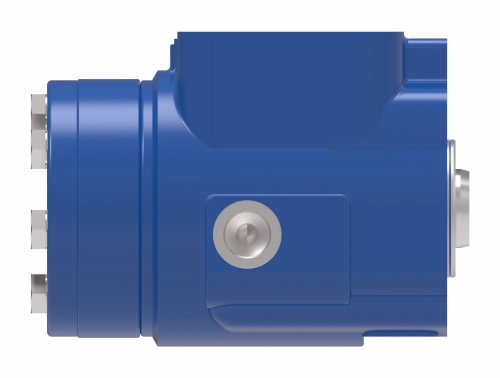

263-4288-002 DANFOSS | STEERING CONTROL UNIT

Manufacturer: DANFOSS

Manufacturer Model #: 263-4288-002

EATON CHAR-LYNN SERIES 110, 230 AND 450 STEERING CONTROL UNIT
Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

: Additional ports: G .250 Load Sensing BSP Straight Thread Port On Side
Application: Tractors, Constuction Equipment (Motor Graders, Backhoe Loaders)
Design code11: 2
Eccn: EAR99
Flow amplification: None
Flow rate12: 45 LPM
Fluid compatibility13: See Eaton Technical Bulletin 3-401
Housing material: Ductile Iron
Icc2: Steering Control Unit (SCU)
Identification: Eaton Product Number On Nameplate
Inlet or load sense relief valve setting: 0 bar
Inlet pressure rating: 172 bar
Input torque: Medium
Integral valves: Yes
Load circuit: Non Reaction
Main displacement: 370 cubic centimetre per revolution
Maximum back pressure: 21 bar
Maximum flow rate: 60 litre per minute
Mechanical interface: Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa
Model Code: ABV55A590FA10006JAABK2A0CH10B
Mounting threads: 2X M10x1.0-6H Port Face 4X M10x1.5-6H Mounting Face
Neutral circuit: Load Sensing-Dynamic Signal
Paint: Black
Ports: 4x G.5 BSP Straight Thread Port
Product height: 4.06
Product height uom: inch
Product length: 6.95
Product length uom: inch
Product trade name: Series 110, 230 and 450
Product weight: 15.40
Product weight uom: pound
Product width: 3.70
Product width uom: inch
Recommended filtration level: ISO 18/13 Cleanliness
Return pressure rating: 10 bar
Special features17: Threaded Orifice Insert 0.64 [.025] Dia
Sub brand: Char-Lynn
Unit type21: None
Valve options: Cylinder Relief Valve, Anti-Cavitation Valve, Inlet Check Valve, Manual Steering Check Valve
Working pressure max: 241 bar
Working temperature max: 93 degree Celsius
