Images are representative only. Please verify with our technical experts as actual product may differ.

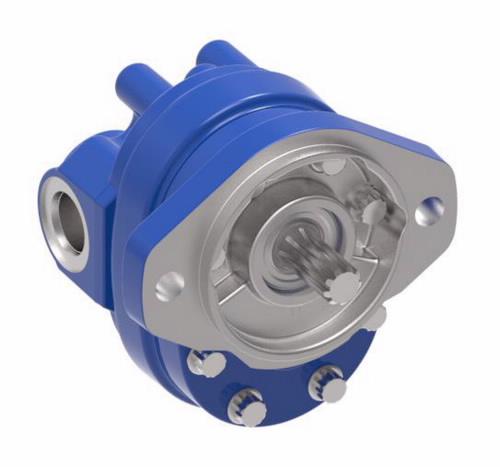

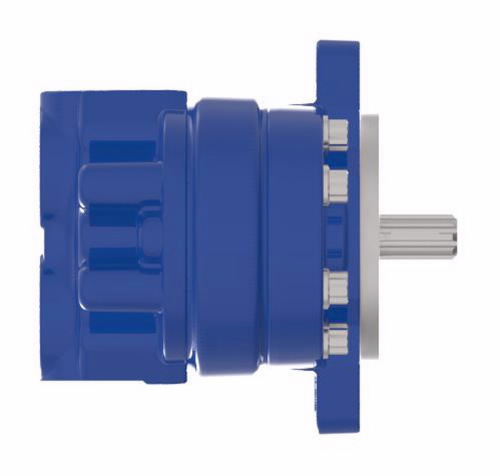

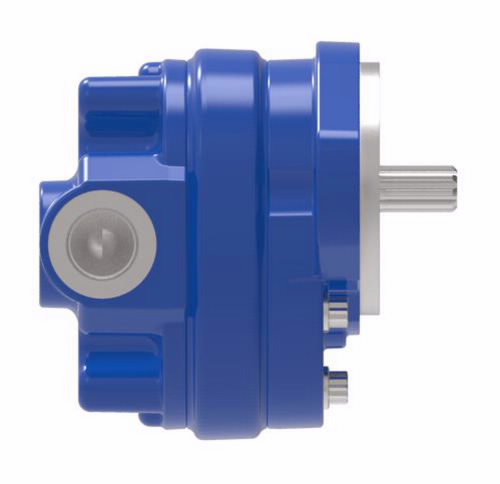

26506-RANÂ DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 26506-RAN
- Application: Agricultural, Civil Engineering, Primary metals, Material handling, Speciality Construction, Metal Forming, Natural ResourcesAuxiliary mounting features rear: NoneConfiguration: MultipleContinuous pressure max: 210 barContinuous working temperature max: 220 degree FahrenheitDesign code11: BDisplacement: 16.7 cubic centimetre per revolutionDisplacement center triple only: 0 cubic centimetre per revolutionDisplacement front: 16.7 cubic centimetre per revolutionDisplacement rear: 16.7 cubic centimetre per revolutionEccn: EAR99Housing material: AluminumIcc2: Hyd Fixed Dis External Gear PumpIdentification: StandardInput shaft: 28Teeth,48/96 DP45°,Invlte,Flt Rt,Side Ft,Cls6,28.5 Min.Fl Spln,Shft Ext,41.2mmIntermittent pressure max: 240 barMinimum continuous oil viscosity: 45 Saybold universal secondModel Code: ACMBR069906AY010038AC00A0A000A0BMounting features front: 2 Bolt A SAE Flange series 82-3Paint: Primer Per Spec 209-13APriority flow divider setting: 5.7 LPMProduct height: 5.31Product height uom: inchProduct length: 9.53Product length uom: inchProduct trade name: Series 26Product weight: 15.00Product weight uom: poundProduct width: 5.12Product width uom: inchShaft rotation: RightSpecial features17: NoneSub brand: NoneTest data: Unit SpecificUnit type21: Flow Divider With Or Without Relief ValveWorking temperature min: -20 degree Fahrenheit
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
