Images are representative only. Please verify with our technical experts as actual product may differ.

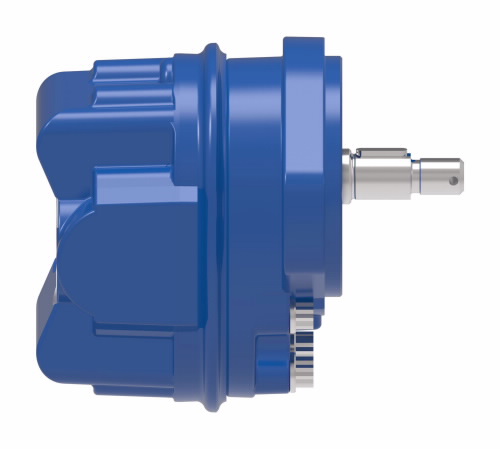

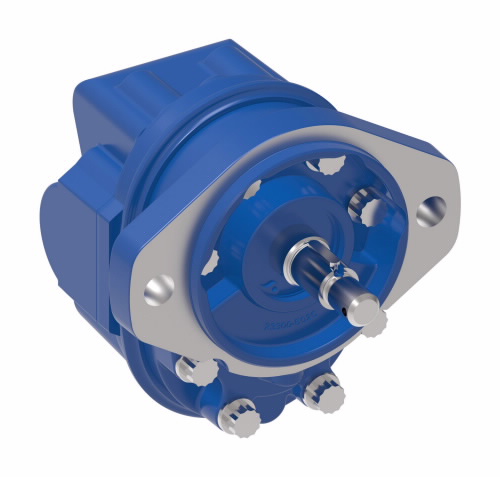

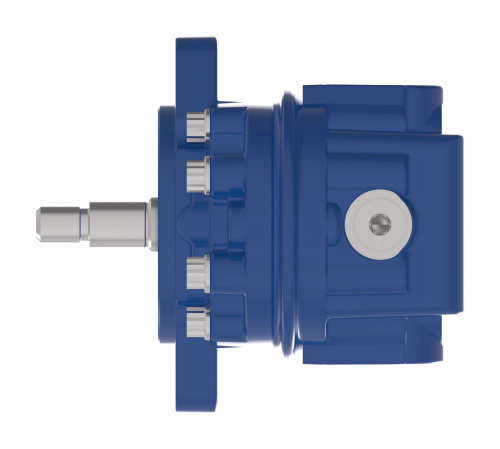

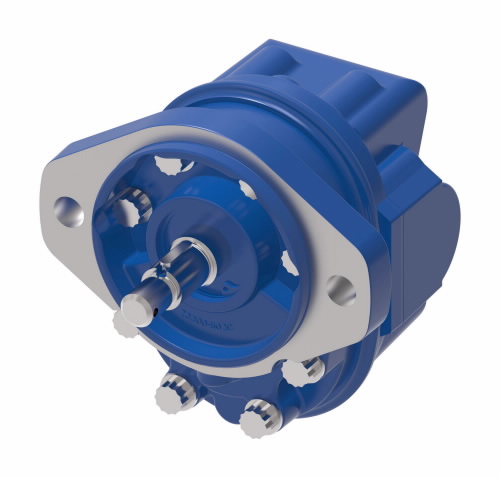

26710-DABÂ DANFOSSÂ |Â SERIES 26 GEAR MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 26710-DAB
EATON SERIES 26 GEAR MOTOR
Compact design|Quiet operation|Improved efficiency
Compact design|Quiet operation|Improved efficiency
- Auxiliary mounting features rear:Â NoneConfiguration:Â SingleContinuous pressure max:Â 3000 psiContinuous working temperature max:Â 220 degree FahrenheitDesign code11:Â ADisplacement:Â 26.1 cubic centimetre per revolutionEccn:Â EAR99Icc2:Â HS Gear MotorsIdentification:Â StandardIntermittent pressure max:Â 3500 psiMinimum continuous oil viscosity:Â 45 Saybold universal secondModel Code:Â ADMAD10BBA03ABCABA000B0AMounting features front:Â 2 Bolt A SAE Flange series 82-2Output shaft:Â Dia 17.45 [.687] Taper .125;1, .4375-20 UNF-2A, Keyway 3.3 X 22.1 [.13 X .87],Shaft Ext 39.6 [1.56] (Key Included)Paint:Â Black Per Spec 209-13BPorts sizes locations backplate single unit:Â Inlet Port .875-14 UN-2B SAE O-Ring Port; Outlet Port .875-14 UN-2B SAE O-Ring Port - Side PortsProduct height:Â 5.11Product height uom:Â inchProduct length:Â 6.4Product length uom:Â inchProduct trade name:Â Series 26Product weight:Â 8Product weight uom:Â poundProduct width:Â 5.12Product width uom:Â inchRelief valve setting:Â 141.3 barRelief valve type:Â Cross-overShaft rotation:Â Bi-DirectionalSpecial features17:Â NoneSub brand:Â NoneTest data:Â Unit SpecificUnit type21:Â PlainWorking temperature min:Â -20 degree Fahrenheit
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
