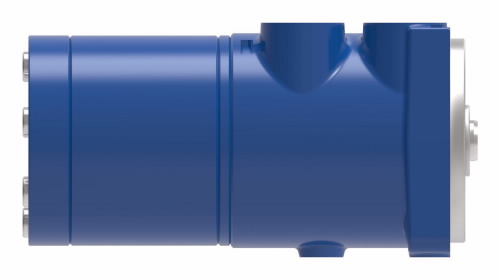

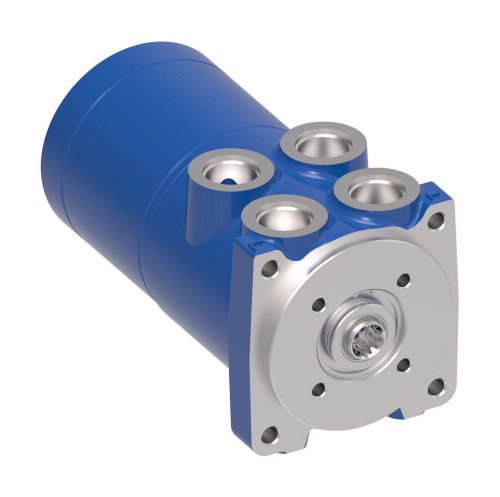

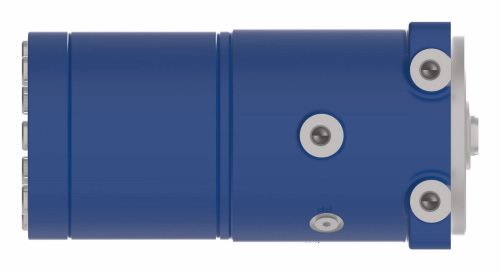

282-1011-003 DANFOSS | FLOW CONTROL HYDRAULIC VALVE

Manufacturer: DANFOSS

Manufacturer Model #: 282-1011-003

EATON CHAR-LYNN SERIES 40 STEERING CONTROL UNIT
Flow Rate 151-227 L/min (40-60 gal/min)|Maximum pressure 240 bar (3,500 psi)|Large articulated and fixed-frame vehicle applications

: Additional ports: None
Application: Articulated Vehicles(Loaders, Scrapers, Skidders, Ag Tractors), Fixed Frame Vehicles, Large Front End Loaders, Graders, Mining Trucks, Articulated Dump Haulers, Transporters
Design code11: 3
Eccn: EAR99
Flow amplification: None
Flow rate12: 151 LPM
Fluid compatibility13: See Eaton Technical Bulletin 3-401
Housing material: Ductile Iron
Icc2: Steering Control Unit (SCU)
Identification: Eaton Product Number On Nameplate
Inlet or load sense relief valve setting: 0 bar
Inlet pressure rating: 241 bar
Input torque: Standard
Integral valves: Yes
Load circuit: Non Reaction
Main displacement: 1560 cubic centimetre per revolution
Maximum back pressure: 21 bar
Maximum flow rate: 76 litre per minute
Mechanical interface: Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa
Model Code: ABY86B740CA000000GAAA3A0AA00C
Mounting threads: None On Port Face 4X M10X1.5-6H On Mounting Face
Neutral circuit: Closed Center
Paint: None
Ports: 4X 1.3125-12 UN-2B SAE O-RING PORT
Product height: 5.28
Product height uom: inch
Product length: 9.68
Product length uom: inch
Product trade name: Series 40
Product weight: 60.00
Product weight uom: pound
Product width: 5.73
Product width uom: inch
Recommended filtration level: ISO 18/13 Cleanliness
Return pressure rating: 21 bar
Special features17: None
Sub brand: Char-Lynn
Unit type21: None
Valve options: None
Viscosity recommendation: 120 Saybold universal second
Working pressure max: 241 bar
Working temperature max: 93 degree Celsius
: Documentlink catalog 1
Documentlink brochure 1
