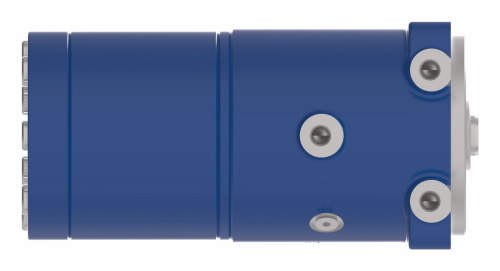

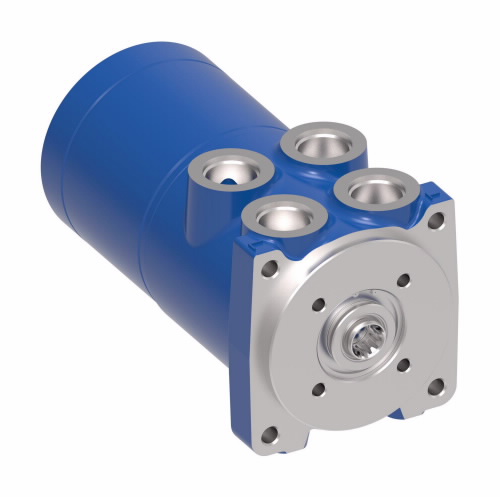

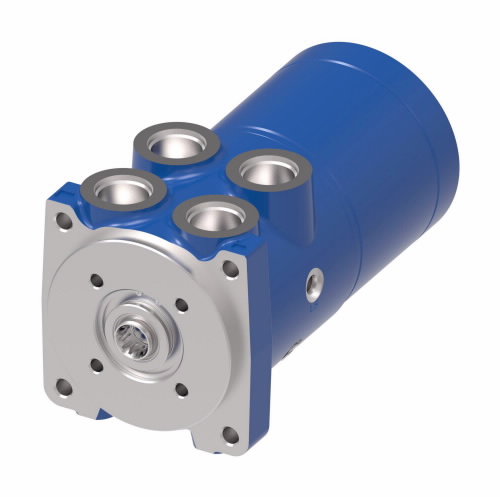

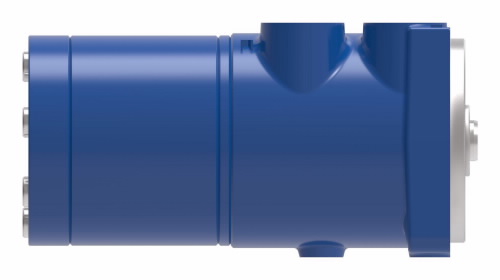

283-3006-003Â DANFOSSÂ |Â FLOW CONTROL HYDRAULIC VALVE
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 283-3006-003
EATON CHAR-LYNN SERIES 40 STEERING CONTROL UNIT
Flow Rate 151-227 L/min (40-60 gal/min)|Maximum pressure 240 bar (3,500 psi)|Large articulated and fixed-frame vehicle applications
Flow Rate 151-227 L/min (40-60 gal/min)|Maximum pressure 240 bar (3,500 psi)|Large articulated and fixed-frame vehicle applications
- Additional ports:Â .4375-20 UNF-2B Load Sensing SAE O-Ring Port On Side With .4375-20 UNF-2B Pilot Pressure SAE O-Ring Port On SideApplication:Â Articulated Vehicles(Loaders, Scrapers, Skidders, Ag Tractors), Fixed Frame Vehicles, Large Front End Loaders, Graders, Mining Trucks, Articulated Dump Haulers, TransportersDesign code11:Â 3Eccn:Â EAR99Flow amplification:Â 1.60;1.00Flow rate12:Â 227 LPMFluid compatibility13:Â See Eaton Technical Bulletin 3-401Housing material:Â Ductile IronIcc2:Â Steering Control Unit (SCU)Identification:Â Eaton Product Number On NameplateInlet or load sense relief valve setting:Â 0 barInlet pressure rating:Â 241 barInput torque:Â StandardIntegral valves:Â YesLoad circuit:Â Non Reaction, Cylinder Damped, Level 3Main displacement:Â 1560 cubic centimetre per revolutionMaximum back pressure:Â 21 barMaximum flow rate:Â 76 litre per minuteMechanical interface:Â Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree PaModel Code:Â ABY96B741FE000000GAGA3A0AA00CMounting threads:Â None On Port Face 4X .375-16 UNC-2B On Mounting FaceNeutral circuit:Â Load Sensing-Dynamic SignalPaint:Â NonePorts:Â 4X 1.3125-12 UN-2B SAE O-RING PORTProduct height:Â 5.28Product height uom:Â inchProduct length:Â 9.68Product length uom:Â inchProduct trade name:Â Series 40Product weight:Â 60Product weight uom:Â poundProduct width:Â 5.73Product width uom:Â inchRecommended filtration level:Â ISO 18/13 CleanlinessReturn pressure rating:Â 21 barSpecial features17:Â NoneSub brand:Â Char-LynnUnit type21:Â NoneValve options:Â NoneWorking pressure max:Â 241 barWorking temperature max:Â 93 degree Celsius
SunSource Distribution Division: SunSource
Price:Â Requires Quote
