Images are representative only. Please verify with our technical experts as actual product may differ.
30604-MFS-P1Â NOSHOKÂ |Â 300 Series 3/4 x 1/2 in. Connection Size Multiport Needle Valve with Soft Seat
Manufacturer:Â NOSHOK
Manufacturer Model #:Â 30604-MFS-P1
- Multiport design reduces the number of gauge and other instrument connections to permanent piping installations, decreasing possible leak paths
- Optional bleed plugs further allow pressure to be bled off without disturbing the permanent piping installation
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability

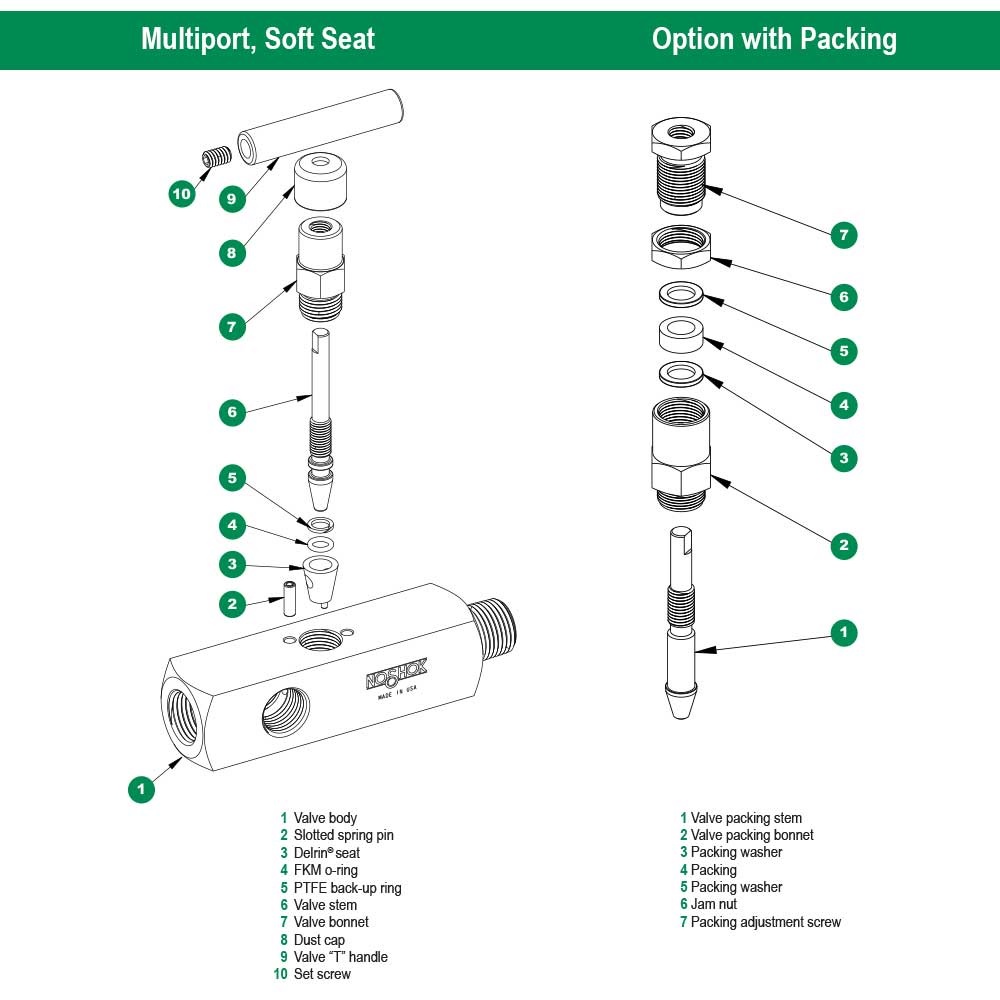

- Assembly Options:Â NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.Bleed Valve:Â Bleed valves provide a convenient means to relieve process pressures trapped between a shut off valve and the instrument.Body Material:Â Electropolished 316 Stainless SteelCategory:Â 300 Series Multiport Needle Valves with Soft SeatConnection Size:Â 3/4 x 1/2Cv Coefficient:Â 0.64End Size:Â 3/4 x 1/2End Type:Â Male National Pipe Thread (MNPT) x Female National Pipe Thread (FNPT)Orifice Diameter:Â 0.187Packings:Â Polytetrafluoroethylene (PTFE)Pressure [Max]:Â 6,000Related Items:Â 804-MS, 800 Series 10,000 psi Pressure Rating Bleed Needle Valve with Hard Seat and Soft Tip|BP1-S, Bleed Plugs|PG1-SS1-EP, National Pipe Thread (NPT) PlugsSchemaID:Â 105909Seat:Â Hard SeatSeries:Â 300Stem Material:Â All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optionalSyndication:Â 1Type:Â Needle ValveUninstalled Options and Accessories:Â Plug, Steel (PG1-CS1-ZN1)Plug, Stainless Steel (PG1-SS1-EP)Bleed Plug, Steel, 1/2" NPT (BP1-C)Bleed Plug, Stainless Steel, 1/2" NPT (BP1-S)Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)Unit:Â 1Valve Material:Â Stainless SteelValve Type:Â Male-Female
SunSource Distribution Division: SunSource
$421.93
