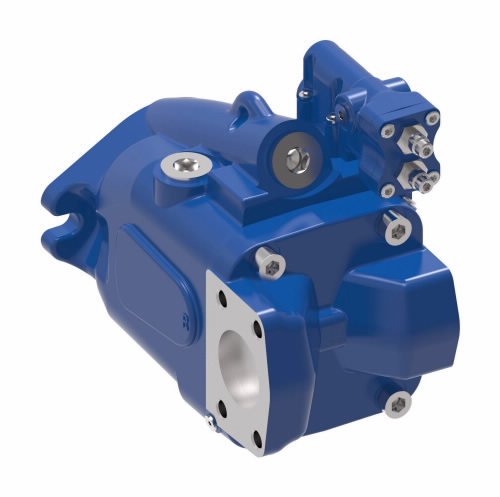

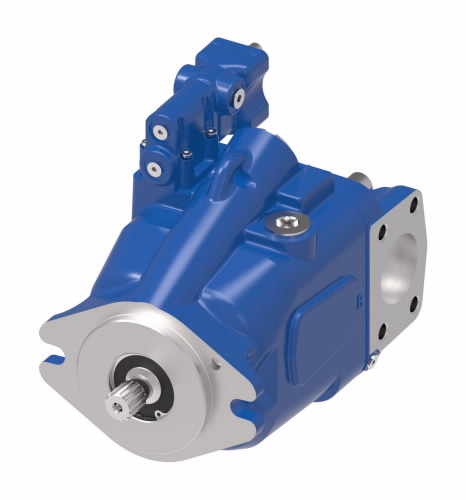

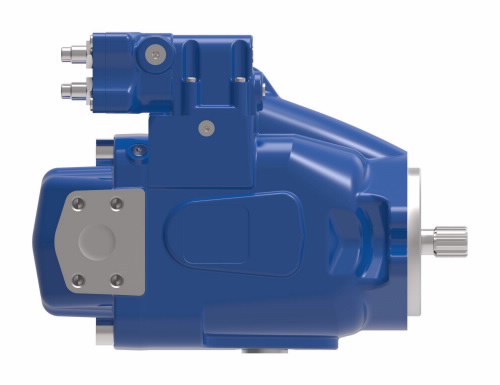

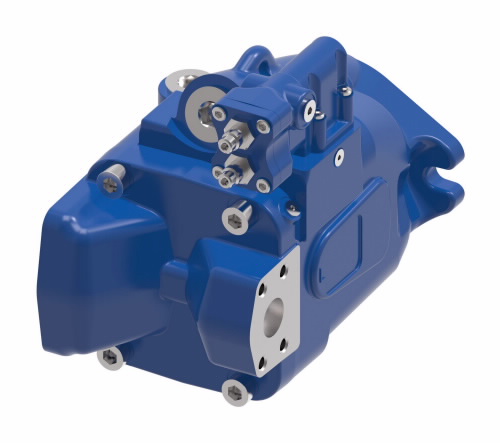

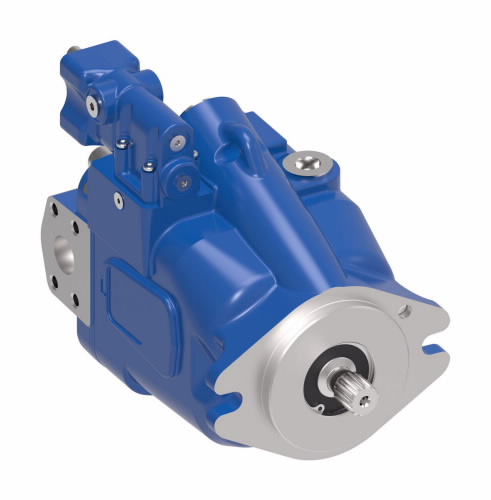

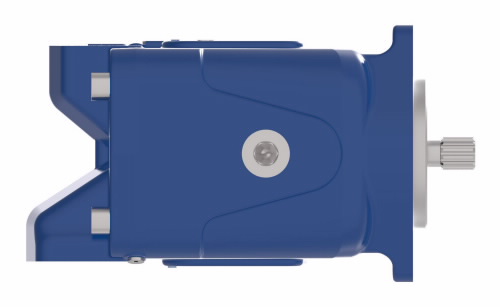

358AK00055AÂ DANFOSSÂ |Â VARIABLE DISPLACEMENT
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 358AK00055A
EATON 72400 SERIES MEDIUM DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â [2-Bolt B] SAE Flange Series 101-2Auxiliary port top front c1 or bypass valve:Â .750-16 UNF-2B SAE O-Ring PortAuxiliary port top rear c2:Â .750-16 UNF-2B SAE O-Ring Port PluggedCharge pump:Â NONECharge pump displacement:Â 49.2 cubic centimetre per revolutionCharge pump options:Â NoneConfiguration:Â SingleControl:Â Manual Displacement Control with (Normally Closed) Neutral Lockout Switch (Wide Band Neutral) and Destroke Valve (Manifold) 12 Volt DC (Normally Open)Design code11:Â ADesign type:Â Series 1Destroke valve:Â NoDisplacement:Â 49.2 cubic centimetre per revolutionDrain port size and location:Â 1.0625-12 UN-2B SAE O-Ring Port - Left (D1) & Right (D2) Sides, HousingDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 169 litre per minuteHousing material:Â Cast IronIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 15 Tooth 16/32 External, Diameter 24.98 [.984], Shaft Extension 46 [1.81]Main port location a:Â Opposite SidesMain port orientation:Â RadialMain port s:Â 1.0625-12 UN-2B SAE O-Ring Port - Opposite SidesMaximum input power:Â 102 kilowattMaximum input torque:Â 286 newton metreModel Code:Â ADVRA3AMFHHC2C023AMFHH0E00A0000B0AMounting flange location:Â Standard J744Mounting Type:Â StandardOutput shaft:Â 13 Tooth 16/32 Internal, Diameter 21.81 [.858], Accepts Shaft Extension 41.1 [1.62]Paint:Â Black Per Spec 209-13BPeak pressure rating:Â 380 barProduct height:Â 10.45Product height uom:Â inchProduct length:Â 20.94Product length uom:Â inchProduct trade name:Â 72400 SeriesProduct weight:Â 55Product weight uom:Â poundProduct width:Â 10.98Product width uom:Â inchRated speed max:Â 3600 revolutions per minuteRelief valve setting for main port a:Â 224.1 barRelief valve setting for main port b:Â 224.1 barShaft rotation:Â RightSpecial features17:Â NoneSub brand:Â NoneType:Â Variable DisplacementUnit type21:Â Back-to-BackValve plate:Â Valve Plate- Type 1Working pressure max:Â 350 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
