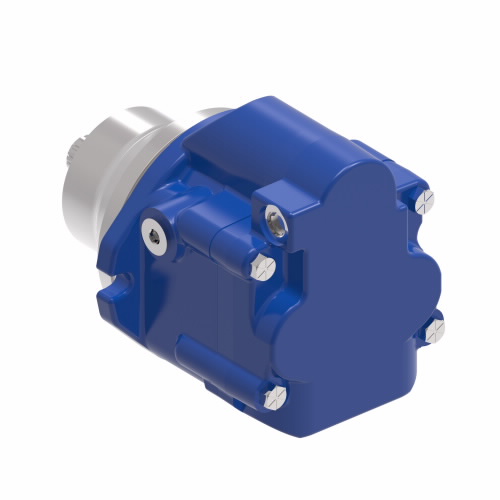

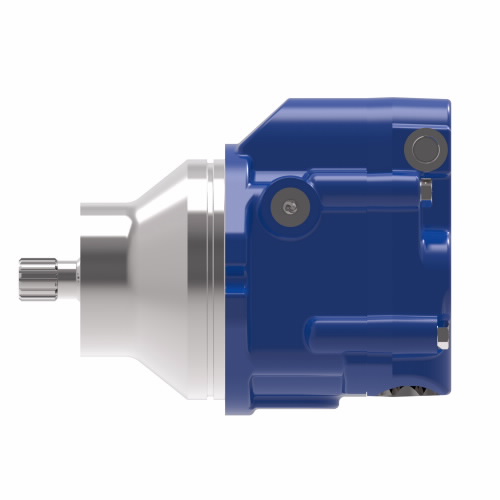

- Design code11:Â ADisplacement:Â 49.2 cubic centimetre per revolutionEccn:Â EAR99Icc2:Â HS HP Var Axial-Piston MotorsIdentification:Â StandardMain ports:Â 1.0625-12 UN-2B SAE O-Ring Port (A & B) - Same Side (Left Side)Maximum displacement:Â 45 cubic centimetre per revolutionMaximum speed:Â 4500 revolutions per minuteMinimum displacement:Â 20.48 cubic centimetre per revolutionModel Code:Â X7M49A01B1A0000200000000100AMounting flange:Â Plug InOutput shaft:Â 15 Tooth 16/32 Spline, Shaft Ext 46 [1.81]Paint:Â NoneProduct height:Â 6.12Product height uom:Â inchProduct length:Â 8.20Product length uom:Â inchProduct trade name:Â X3Product weight:Â 36.00Product weight uom:Â poundProduct width:Â 6.44Product width uom:Â inchSpecial features17:Â NoneSub brand:Â NoneSystem working temperature:Â -30 degree CelsiusTorque:Â 0.79 newton metreWorking Pressure:Â 310 bar
SunSource Distribution Division: SunSource
Price:Â
Requires Quote
If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
Submit request for pricing on RFQ products.
Our sales team will be in touch to provide you a quote.
