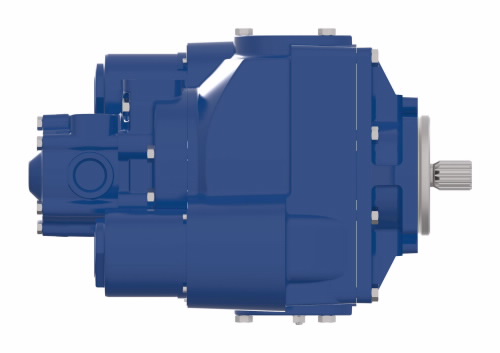

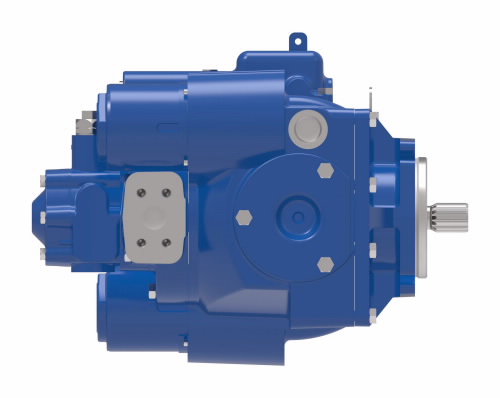

3923-129Â DANFOSSÂ |Â M39 HI-SPEED VAR PUMP FC
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 3923-129
EATON SERIES 1 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â NoneCharge pressure relief valve setting:Â 19 barCharge pump:Â Charge Pump With External Discharge Port For 7/8-14 UNF SAE O-Ring Fitting; With Steel Hex PlugCharge pump displacement:Â 13.9 cubic centimetre per revolutionCharge pump special features:Â NoneConfiguration:Â SingleControl:Â Manual Displacement Control with (Normally Closed) Neutral Lockout Switch (Wide Band Neutral)Control orifice upper servo diameter:Â 0.102 inchControl supply orifice diameter:Â 0.028 inchDesign code11:Â BDesign type:Â Series 1Displacement:Â 63.66 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 255 litre per minuteIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 21 Tooth 16/32 Pitch SplineMain port orientation:Â RadialMain port s:Â [1.00] - Code 61 Per SAE J518Maximum input torque:Â 265 newton metreMinimum working pressure:Â 420 barModel Code:Â ACA392321L0A00MDAJ0000D010G00400BMounting flange location:Â Standard J744Paint:Â Finish BlueProduct height:Â 10.56Product height uom:Â inchProduct length:Â 16.80Product length uom:Â inchProduct trade name:Â Series 1Product weight:Â 62.60Product weight uom:Â poundProduct width:Â 10.74Product width uom:Â inchShaft rotation:Â LeftSpecial features17:Â NoneSpecial pump assembly features:Â Both Servo Pistons With 12.0 Degree StopsSub brand:Â NoneType:Â Variable DisplacementValve plate:Â Standard, V-GrooveWorking pressure max:Â 480 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
