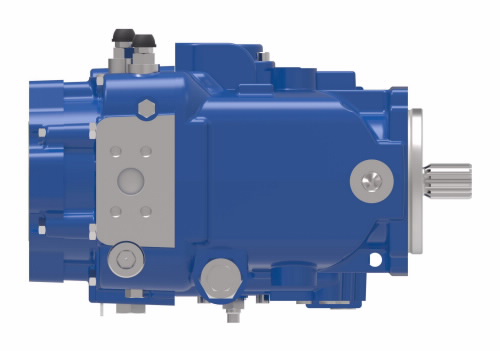

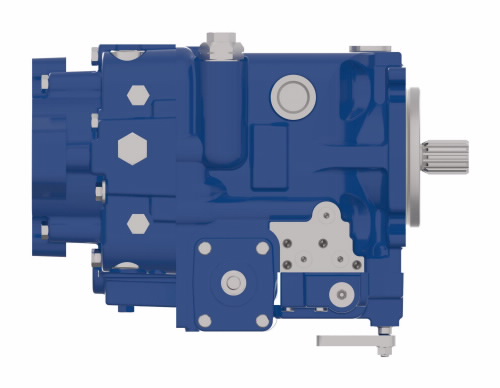

4622-233Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 4622-233
EATON SERIES 2 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â C-Pad, 4 Bolt Mount, No Shaft Seal, 14 Tooth 12/24 Pitch SplineCharge pressure relief valve setting:Â 21 barCharge pump displacement:Â 21 cubic centimetre per revolutionCharge pump options:Â Remote Filter PortsCharge pump special features:Â NoneConfiguration:Â SingleControl orifice lower servo diameter:Â 0.052 inchControl orifice upper servo diameter:Â 0.052 inchControl supply orifice diameter:Â 0.036 inchDesign code11:Â ADisplacement:Â 75.28 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 301 litre per minuteHigh pressure relief valve setting port a:Â 414 barHigh pressure relief valve setting port b:Â 483 barIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â [1.50] Diameter Tapered With [.375] X [1.00] Square KeyMain port orientation:Â RadialMain port s:Â [1.00] - Code 61 Per SAE J518Maximum input torque:Â 303 newton metreMinimum working pressure:Â 430 barModel Code:Â ACL07503R0AUUYY00MACFF03FAA000AMounting flange location:Â Standard J744Paint:Â Primer Blue Per Spec 209-13CdPressure override setting port a:Â 379 barProduct height:Â 12.04Product height uom:Â inchProduct length:Â 14.66Product length uom:Â inchProduct trade name:Â Series 2Product weight:Â 128.00Product weight uom:Â poundProduct width:Â 8.70Product width uom:Â inchShaft rotation:Â RightSub brand:Â NoneType:Â Variable DisplacementValve plate:Â Standard, V-GrooveWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
