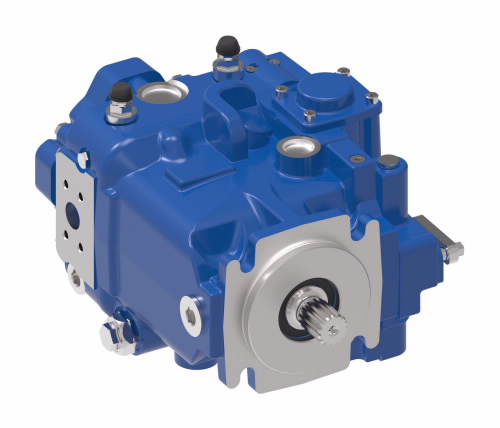

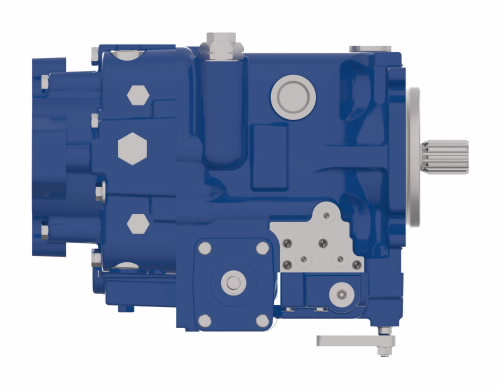

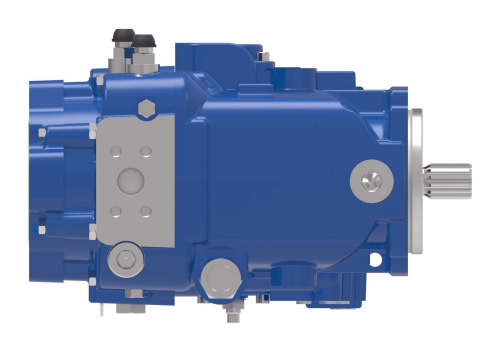

4622-363Â DANFOSSÂ |Â S2 46 VARIABLE PUMP CW
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 4622-363
EATON SERIES 2 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â NoneCharge pressure relief valve setting:Â 24 barCharge pump displacement:Â 13.9 cubic centimetre per revolutionCharge pump options:Â NoneCharge pump special features:Â NoneConfiguration:Â SingleControl:Â Electronic Proportional Control 12 Volt DC Without Electronic DriverControl orifice lower servo diameter:Â 0.044 inchControl orifice upper servo diameter:Â 0.044 inchControl supply orifice diameter:Â 0.044 inchDesign code11:Â ADesign type:Â NoneDisplacement:Â 75.28 cubic centimetre per revolutionDocumentlink 2d drawings 4:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-994-003.pdfDocumentlink 2d drawings 5:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-1038-005.pdfDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 301 litre per minuteHigh pressure relief valve setting port a:Â 448 barHigh pressure relief valve setting port b:Â 207 barIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 14 Tooth 12/24 Pitch Spline With 3/8-24 Unf X 19;05 [.750] Min Full Thread In End Of ShaftMain port orientation:Â RadialMain port s:Â [1.00] - Code 62 Per SAE J518Maximum input torque:Â 303 newton metreMinimum working pressure:Â 430 barModel Code:Â ACL07516R3BWMZP19ECDDD011KC000AMounting flange location:Â Standard J744Paint:Â Primer Blue Per Spec 209-13CdPressure override setting port a:Â 138 barPressure override setting port b:Â 448 barProduct height:Â 10.79Product height uom:Â inchProduct length:Â 14.38Product length uom:Â inchProduct trade name:Â Series 2Product weight:Â 128.00Product weight uom:Â poundProduct width:Â 8.70Product width uom:Â inchShaft rotation:Â RightSub brand:Â NoneType:Â Variable DisplacementValve plate:Â Quiet Valve PlateWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
