Images are representative only. Please verify with our technical experts as actual product may differ.

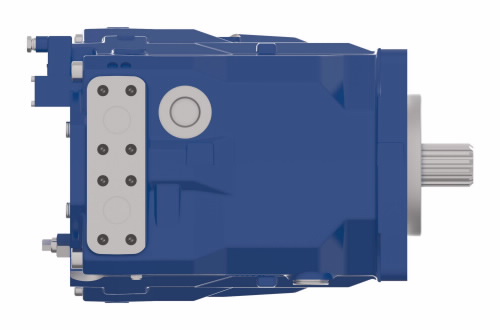

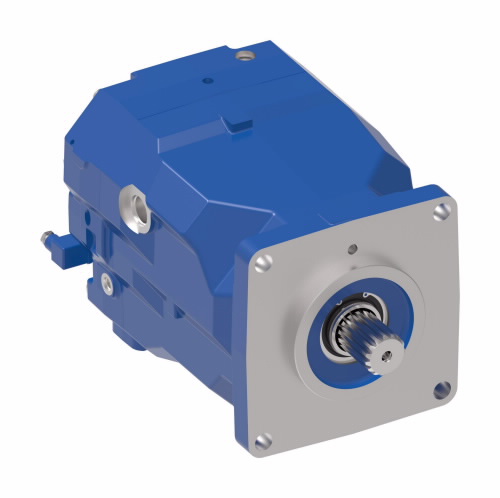

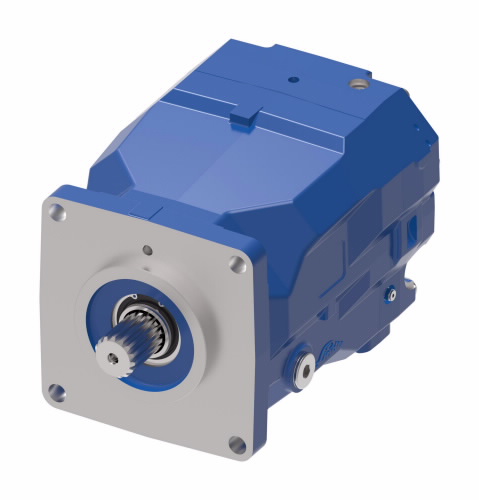

4641-002Â DANFOSSÂ |Â M46 HI-SPEED VAR. MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 4641-002
EATON SERIES 1 HEAVY DUTY VARIABLE MOTOR
Durable and efficient|Engineered for demanding applications|Pro-FX Ready
Durable and efficient|Engineered for demanding applications|Pro-FX Ready
- Control:Â No Control - Fixed DisplacementDesign code11:Â ADisplacement:Â 75 cubic centimetre per revolutionEccn:Â EAR99Flow rate12:Â 79.2 gallons per minuteIcc2:Â HS HP Var Axial-Piston MotorsIdentification:Â StandardMain ports:Â [1.00] SAE 4-Bolt Split Flange Port, Standard Pressure Series (Code 61)Maximum speed:Â 3425 revolutions per minuteModel Code:Â ACE464121MAB1B1K1KMAD00000B0AOutput shaft:Â 21 Tooth 16/32 Pitch Spline (Models 33-64)Paint:Â Primer BlueProduct height:Â 10.55Product height uom:Â inchProduct length:Â 15.56Product length uom:Â inchProduct trade name:Â Series 1Product weight:Â 63.5Product weight uom:Â poundProduct width:Â 10.74Product width uom:Â inchSpecial features17:Â NoneSub brand:Â NoneSystem working temperature:Â 180 degree FahrenheitTorque:Â 469 newton metreWorking Pressure:Â 420 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
