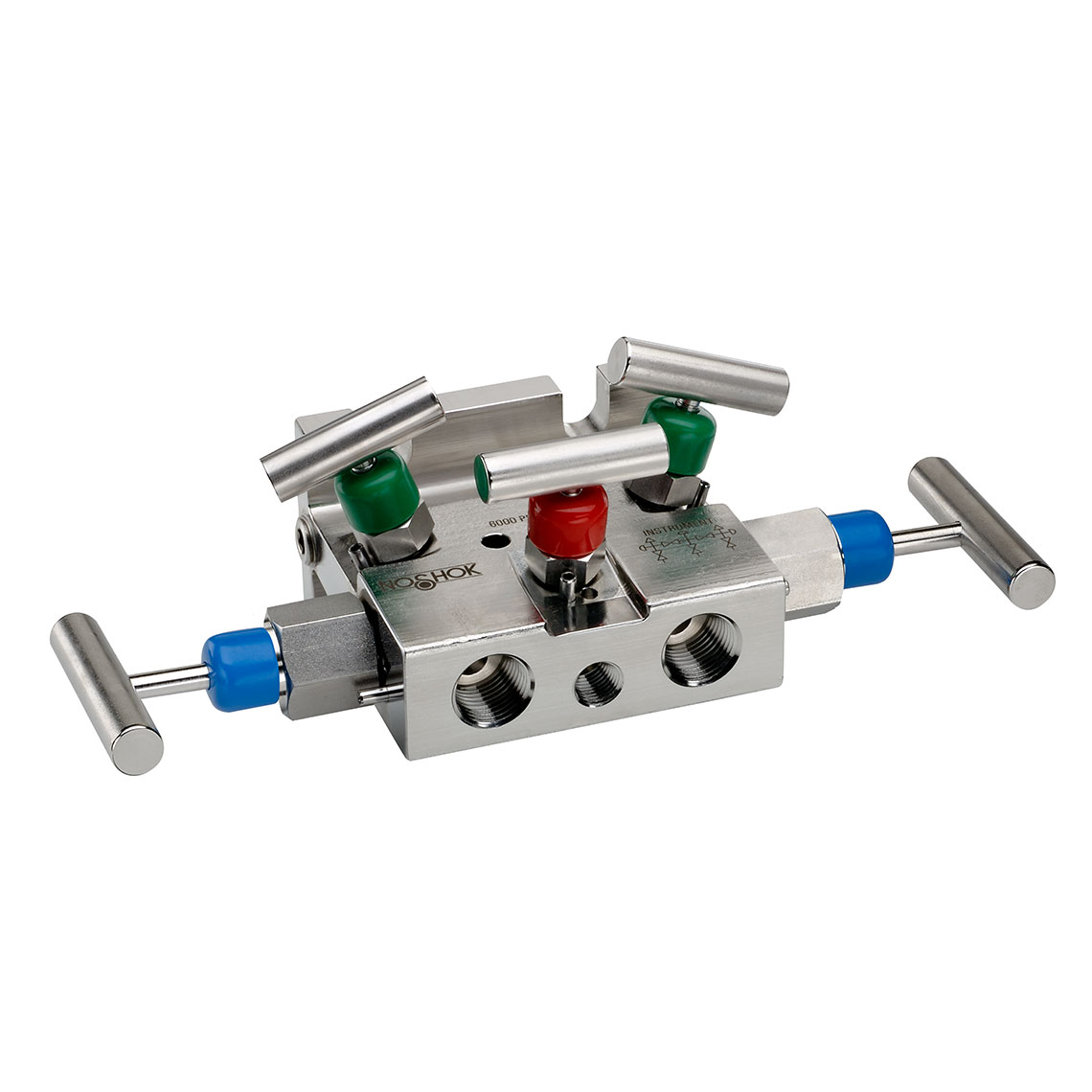

5030-MFS-FPÂ NOSHOKÂ |Â 5030 Series 10,000 psi Pressure Rating Natural Gas 5 Manifold Valve with Hard Seat
Manufacturer:Â NOSHOK
Manufacturer Model #:Â 5030-MFS-FP
- Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
- Flare Patternâ„¢ valve configuration provides maximum clearance for fingers during operation
- Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
- Body Configuration:Â Flare PatternBody Material:Â Zinc-nickel plated carbon steel, electropolished 316 Stainless SteelCategory:Â 5030/5130 Series Natural Gas 5 Manifold Valves with Hard and Soft Seat/TipConnection Size:Â 1/2Connection Type:Â National Pipe Thread (NPT) or FlangeConnectors:Â NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.Direct Connect Assembly For Oil & Gas Applications:Â The NOSHOK Direct Connect Assembly provides an installation that keeps the meter close to the orifice taps for accurate flow measurements.Features:Â Two static (test) ports, color coded vinyl bonnet and stem dust cap, patented soft seat/tip stem design on equalizing and vent valves.Flow Coefficient Cv:Â 0.44Installed Options and Accessories:Â PackingPTFE Manifold Gasket Ring (RG1-TF1)Graphite Manifold Gasket (RG1-GF1) Traditional to Coplanar Flange Adapter (TCA-S)Note:Â All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.Options:Â Panel mountings, o-ring materials, handles, packings, regulating stem and stem tipsOrifice Size:Â 0.187Pressure Rating at 200 Degree Fahrenheit (F) Temperature:Â 10,000Process Type:Â Natural Gas FlowRelated Items:Â MK4-CS, 5 Valve Steel Mounting Kit|MK4-SS2, 5 Valve 304 Stainless Steel Mounting KitSchemaID:Â 106318Seat:Â Hard SeatSeries:Â 5-ValveStem Seal and Type:Â All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads.Syndication:Â 1Type:Â Manifold ValveUnit:Â 1Valve Material:Â Stainless SteelValve Type:Â Flange-Female
SunSource Distribution Division: SunSource
$693.13
